Ringspann FB44SFTZP Freewheel Clutch Bearing
300,00$
Roulement de roue libre Roulement de roue libre haute performance RINGSPANN avec clavette, alésage de 22 mm, diamètre extérieur de 90 mm et capacité de couple de 320 Nm. Conçu pour des applications fiables d'indexage, de dépassement et d'arrêt en arrière dans des environnements industriels exigeants.

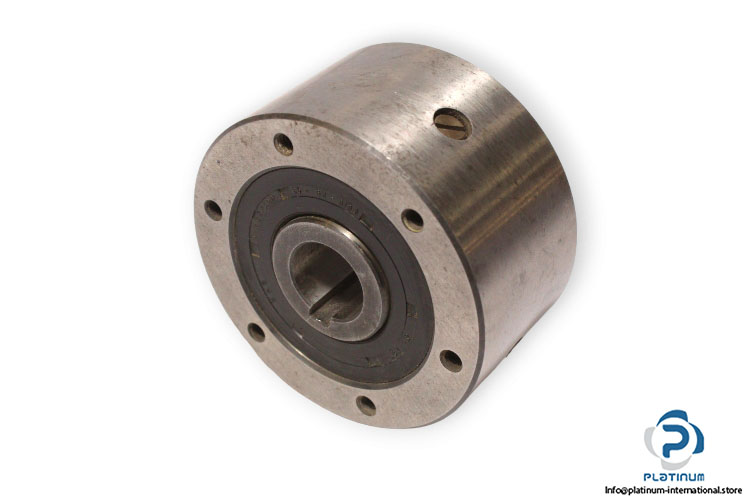

RINGSPANN FB 44 SFTZP Freewheel Bearing
The RINGSPANN FB 44 SFTZP is a high-precision freewheel bearing with keyway, engineered for reliable overrunning, indexing, and backstopping functions. Designed for demanding industrial applications, it delivers smooth torque transmission, long service life, and stable performance under continuous operation. Its robust construction and accurate tolerances make it suitable for machinery where consistent torque control and rotational safety are essential.
Manufacturer: RINGSPANN
Type: Freewheel bearing with keyway
Model: FB 44 SFTZP

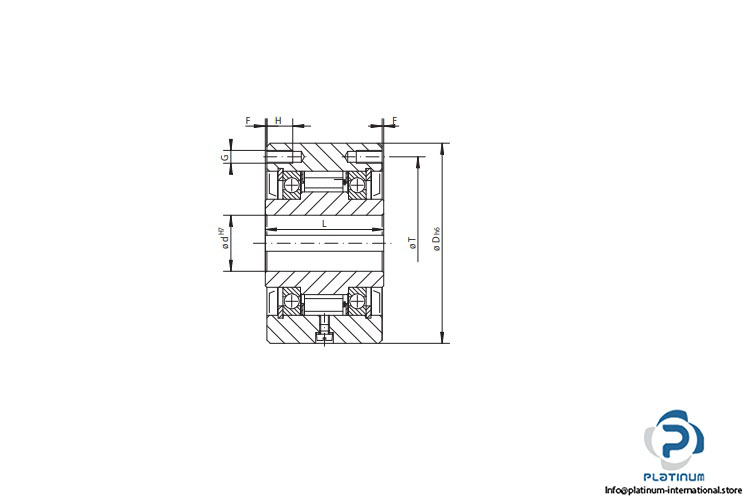

| Bore Diameter d | 22 mm |
| Outer Diameter D | 90 mm |
| Width L | 50 mm |
| Number of tapped holes Z | 6 |
| Thread holes G | M6 |
| H | 10 mm |
| T | 75 mm |
| Max speed Inner race nmax | 2200 rpm |
| Max speed Outer race nmax | 1900 rpm |
| Nominal torque MN | 320 Nm |
