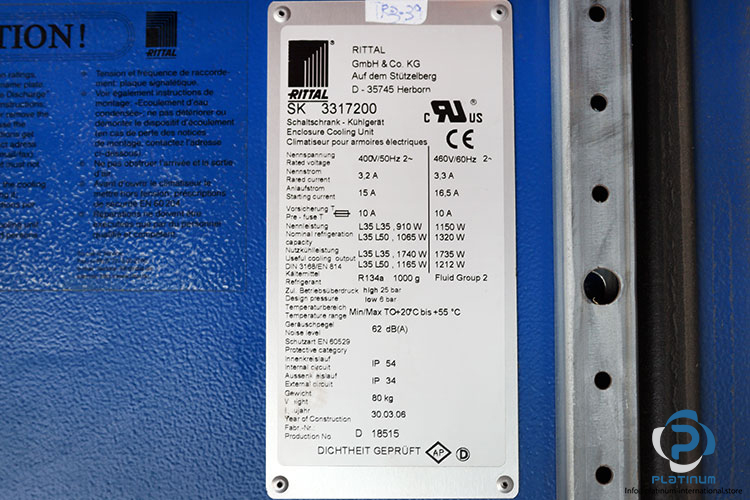

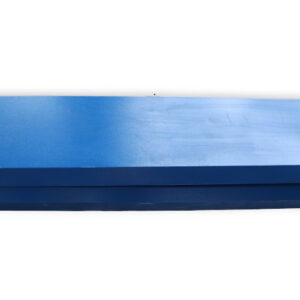

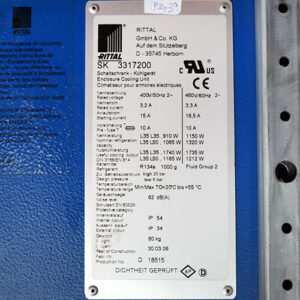

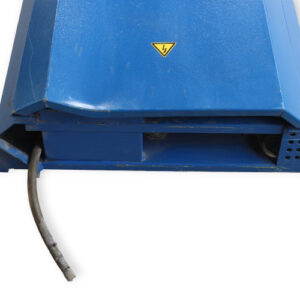

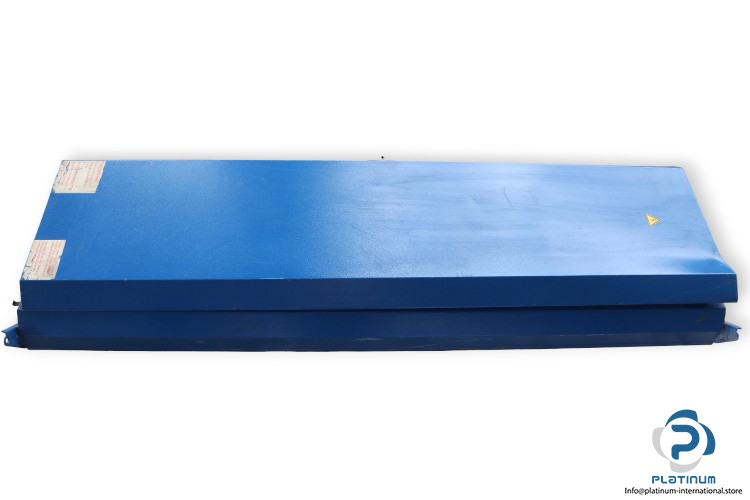

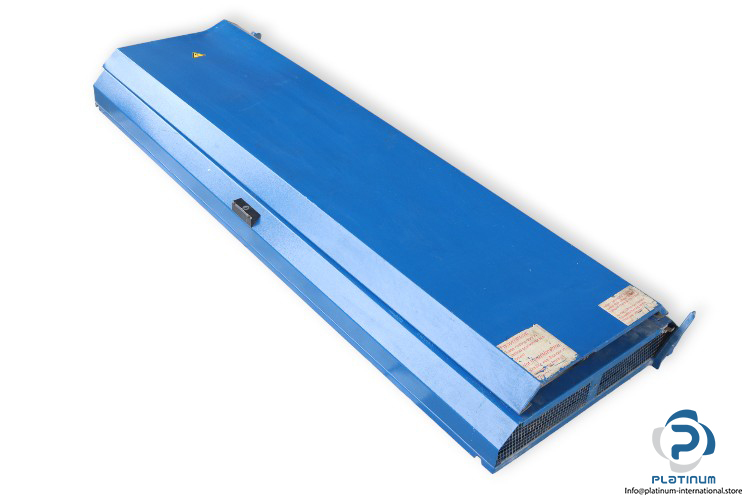

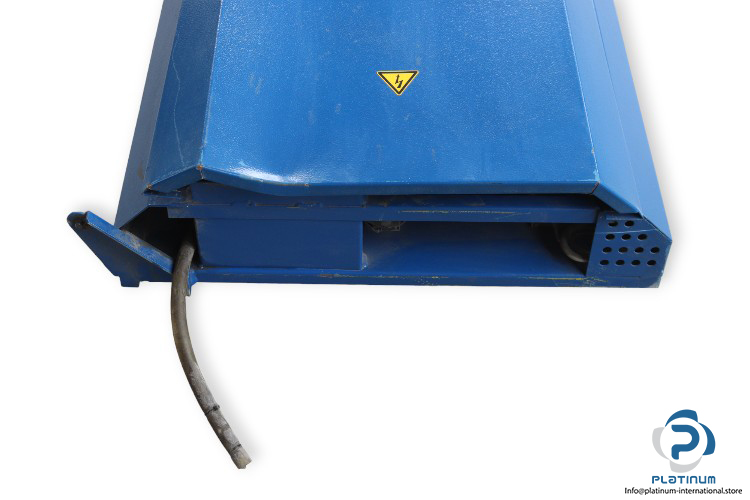

Rittal SK 3317200 Cooling Unit

Manufacturer: Rittal
Type: Cooling Unit
Model: SK3317200

Operating Voltage: 440 V @ 50 Hz,460 V @ 60 Hz/2-phase
Rated current: 3.3 A@460 V/3.2 A @400 V
Start-up current: 16.5 A@460 V/15 A @400 V
Power consumption Pe:
Power consumption L35 L35: 910 W@400 V,1150 W@460 V
Power consumption L35 L50/: 1065 W@400 V,1320 W@460 V
Power consumption L35 L35: 1740 W@400 V,1735 W@460 V
Power consumption L35 L50/: 1165 W@400 V,1212 W@460 V
Protection degree: External circuit IP 34, Internal circuit IP 54
Noise level: 62 dB(A)
Pre-fuse Motor circuit-breaker: 10 A
Operating temperature range: 20 … 55°C
