Rosemount 2051TG3A2B22AWR3S1I1M5D4P1Q4Q8 Pressure Transmitter
Nouveau
En stock1 unitéPrêt à être expédié
PRESSURE TRANSMITTER
High-accuracy Rosemount pressure transmitter with ½ inch connection, -2 to 40 KPA calibration range, and IP66/68 protection. Built for precision, harsh conditions, and standard-compliant operation.½20512051TG1A2B22AWR3S1I1M5D4P1Q4Q8304-20FlangeFlange-MountedGostinchIndustrialIP68mAModelPressurePSIRosemountSensorTransmitter
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

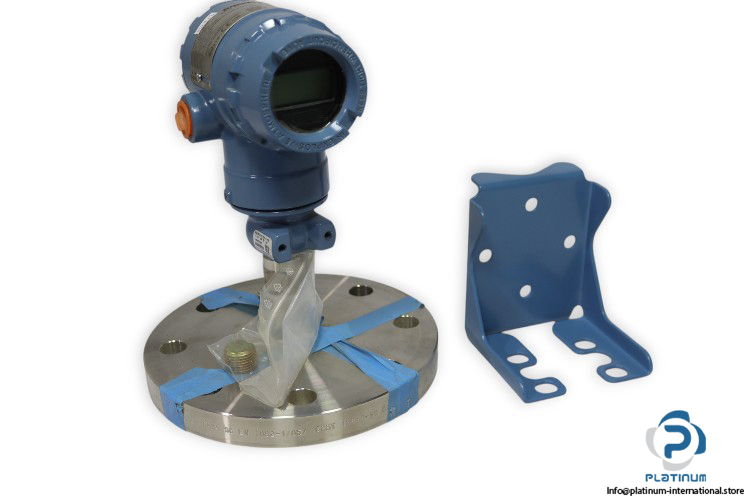

ROSEMOUNT 2051TG1A2B22AWR3S1I1M5D4P1Q4Q8 PRESSURE TRANSMITTER
This advanced pressure transmitter by Rosemount is designed for high-precision measurement in demanding environments. Featuring a wide calibration range, durable stainless-steel flange mounting, and a robust enclosure with IP66/68 rating, it supports industrial compliance across ASTM, EN, and GOST standards. Ideal for critical monitoring in hazardous and industrial systems.

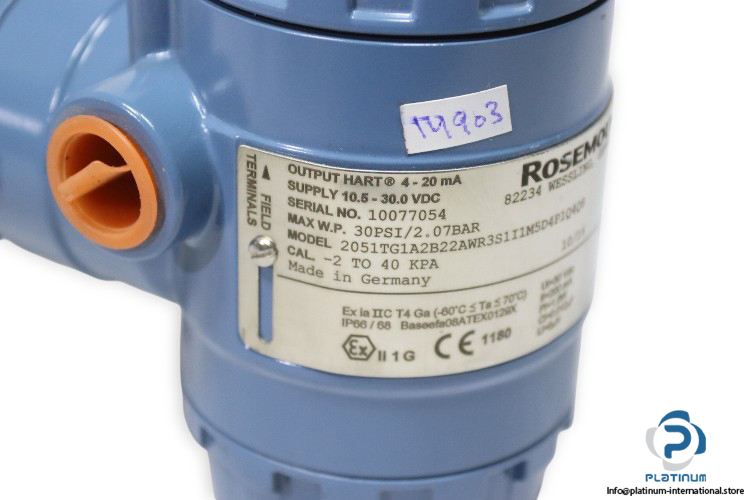

Manufacturer: Rosemount
Type: Pressure Transmitter
Model: 2051TG1A2B22AWR3S1I1M5D4P1Q4Q8
Serial No.: 10077054

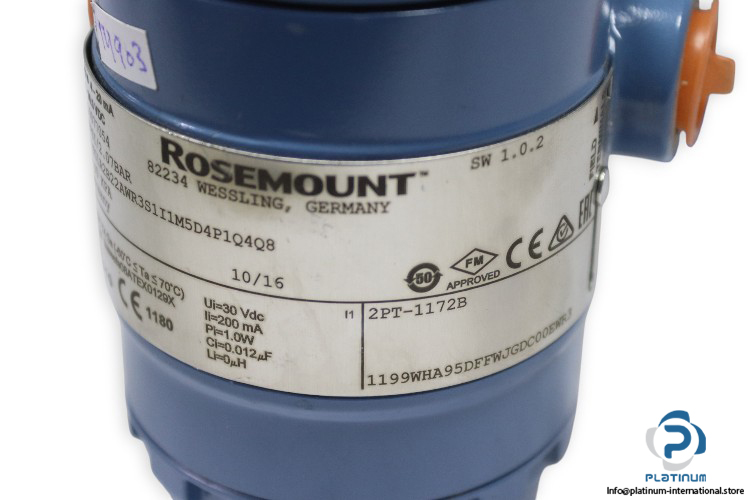

Part No.: 1199WHA95DFFWJGDC00EWR3

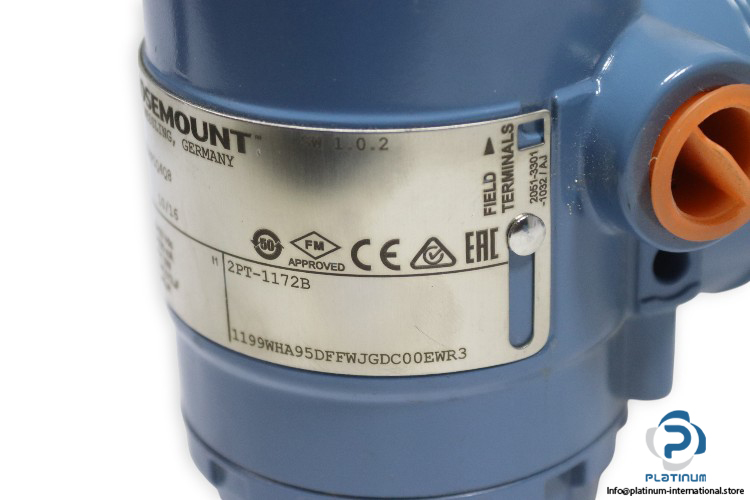

Code: 2PT-1172B/2051-3301-1032/AJ

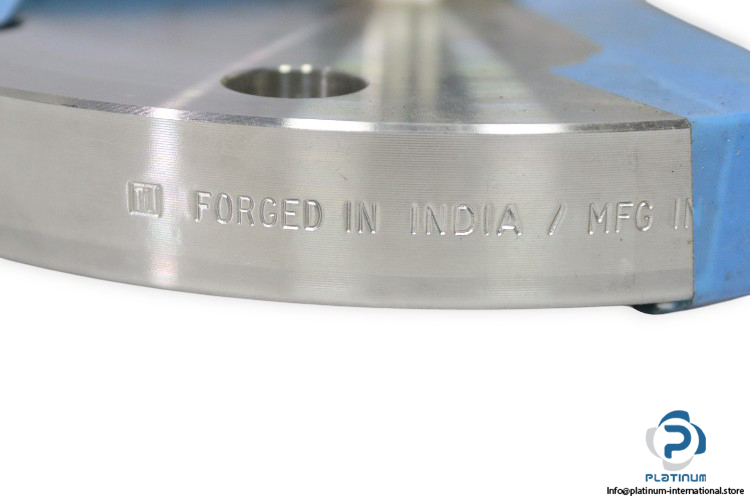

Mounting Flange
| Connection | ½ inch |
| Max Working Pressure | 30 PSI / 2.07 BAR |
| Calibration Range | -2 to 40 KPA |
| Current Output | 4 to 20 mA |
| Operating Voltage | 10.5 to 30 V DC |
| Temperature Range | -60 to 70 °C |
| Ingress Protection | IP66 / IP68 |
| Voltage Rating | 30 V DC |
| Rated Current | 200 mA |
| Power Consumption | 1 W |
| Internal Capacitance (Ci) | 0.012 μF |
| Internal Inductance (Li) | 0 mH |

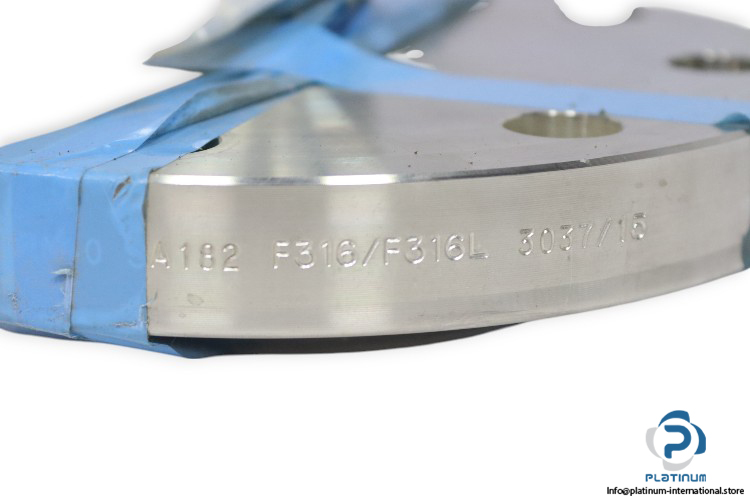

| Material | ASTM A182 F316/F316L Stainless Steel |
| Material Grade | 316 / 316L |

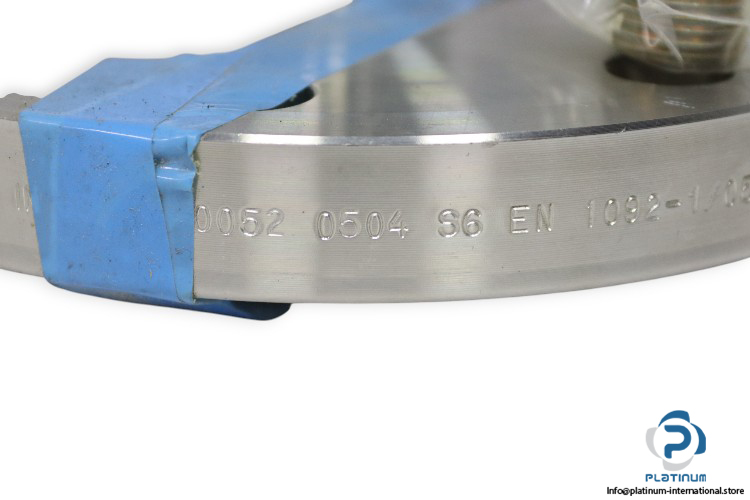

| Standards | ASTM, EN, GOST |

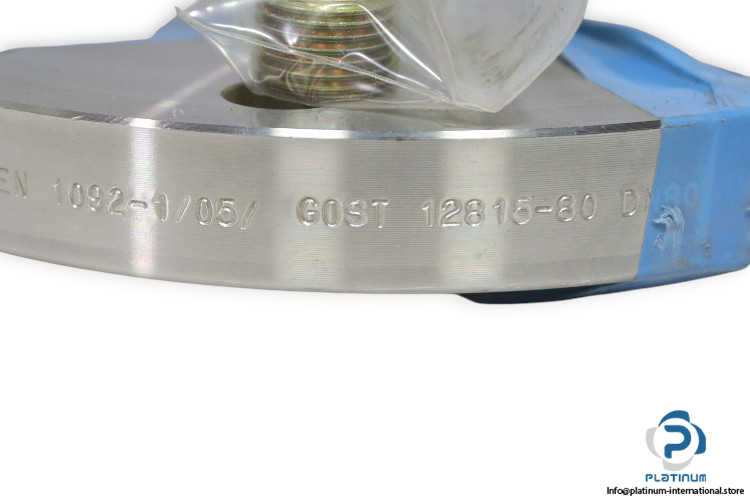

| Flange Compliance | GOST 12815-80 |
