Ruah RH12 PZ 0001 ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
RUAH ISO Cylinder RH12 PZ 0001 is designed for pneumatic systems with a 63 mm bore diameter, 265 mm stroke, and a maximum pressure of 10 bar. It features a G 3/8 pneumatic connection, male piston rod end, and a square shape for reliable motion control.00012653/863ActingboreconnectionCylinderdiameterDoubleGIndustrialISOmmPneumaticPZRH12RuahStrokeSystems
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

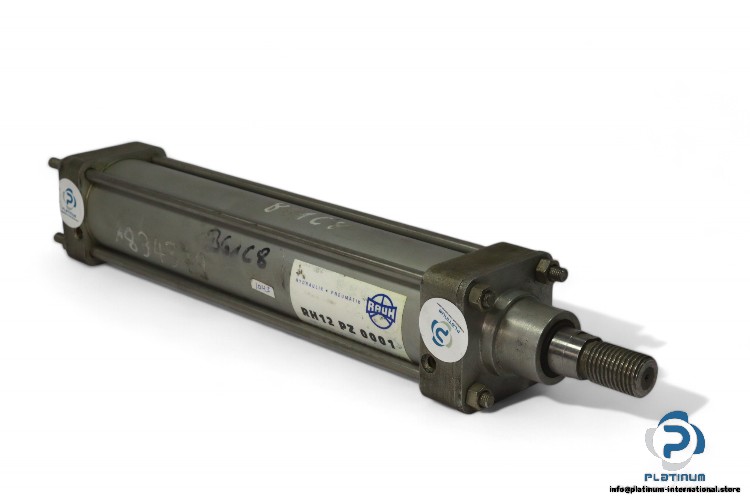

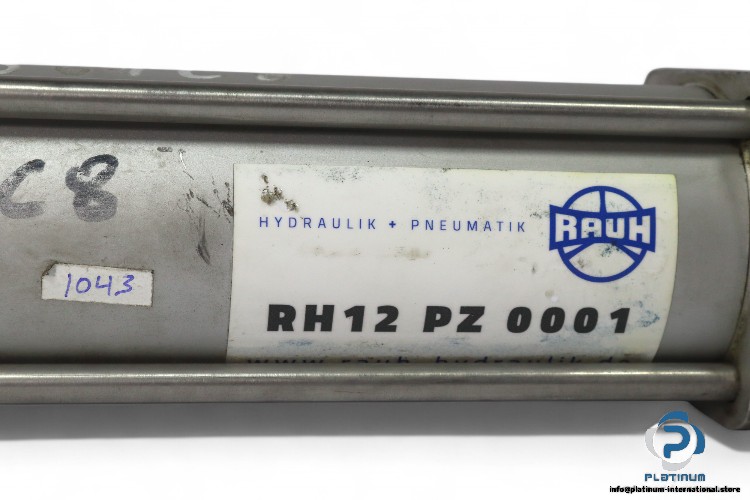

RUAH ISO Cylinder RH12 PZ 0001
The RUAH ISO Cylinder RH12 PZ 0001 is designed for precise control in pneumatic systems. Built for durability and high performance, this double-acting cylinder is ideal for applications requiring reliable motion control in industrial environments.
Manufacturer: RUAH
Type: ISO Cylinder
Model: RH12PZ0001
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 265 mm
- Bore x Stroke: 63 x 265 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 75 x 405 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
