Samson 44-5 / 2720-110250602 9117 Pressure Reducing Valve

Name: SAMSON 44-5 / 2720-110250602 9117 PRESSURE REDUCING VALVE
SKU: 1095318
Price: 177.77 USD
Availability: InStock

samson-44-5-pressure-reducing-valve(USED)

samson-44-5-pressure-reducing-valve(USED)-1

samson-44-5-pressure-reducing-valve(USED)-2

samson-44-5-pressure-reducing-valve(USED)-3

Utilisé

En stock1 unitéPrêt à être expédié

177,77$

Valve de réduction de pression SAMSON 44-5 valve de réduction de pression DN25 avec indice PN25, Kvs 4.0, et conception haute température pour un contrôle précis de la pression industrielle.

Fabricant

SAMSON

SKU

1095318

Catégorie

Other Mechanical Equipment

Condition

Utilisé

Control DN25 flow High Industrial PN25 Pressure Process Reducing Samson Temperature Valve

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

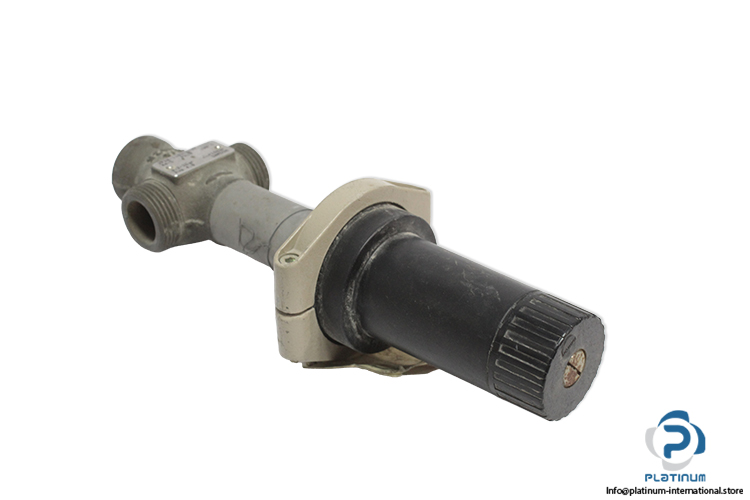

SAMSON 44-5 Pressure Reducing Valve

The SAMSON 44-5 is a high-performance pressure reducing valve engineered for precise pressure control in industrial process systems. It is designed to operate reliably under high temperature conditions and features an intermediate valve“actuator extension piece to protect internal components and ensure long service life.

Manufacturer: SAMSON

Type: Pressure Reducing Valve

Model: 44-5

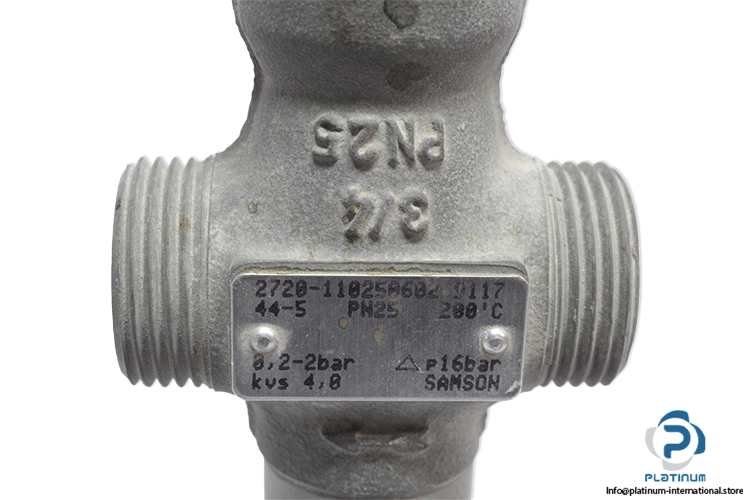

Part Number: 2720-110250602 9117

Nominal Size	DN25
Pressure Rating	PN25
Flow Coefficient	Kvs = 4.0
Maximum Temperature	200 °C
Differential Pressure	16 bar
Port Size	1 in
Pipe Diameter	33.7 mm
Width Across Flats	36 mm
Length (L)	70 mm
Length with Welding Ends	234 mm
Design Feature	Intermediate valve“actuator extension for high-temperature operation
