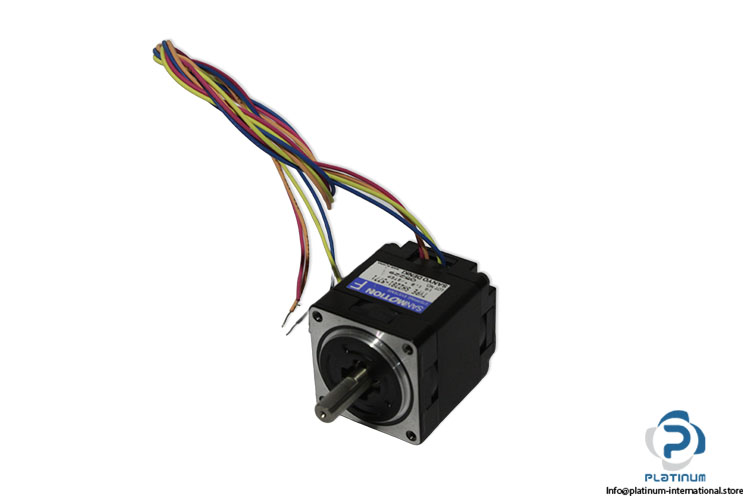

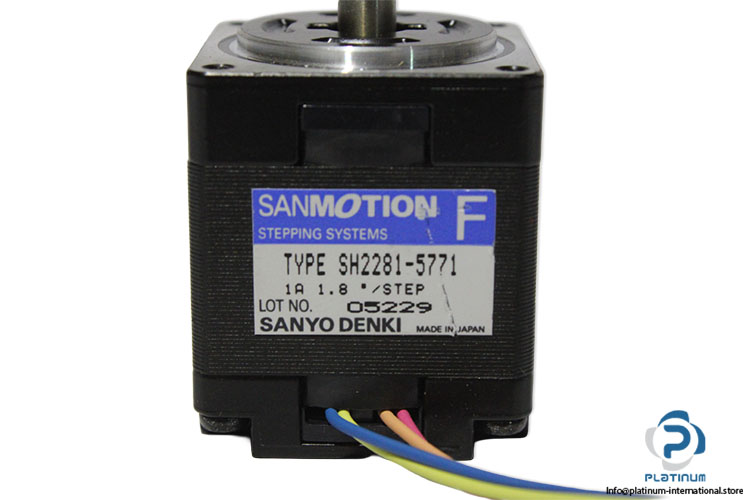

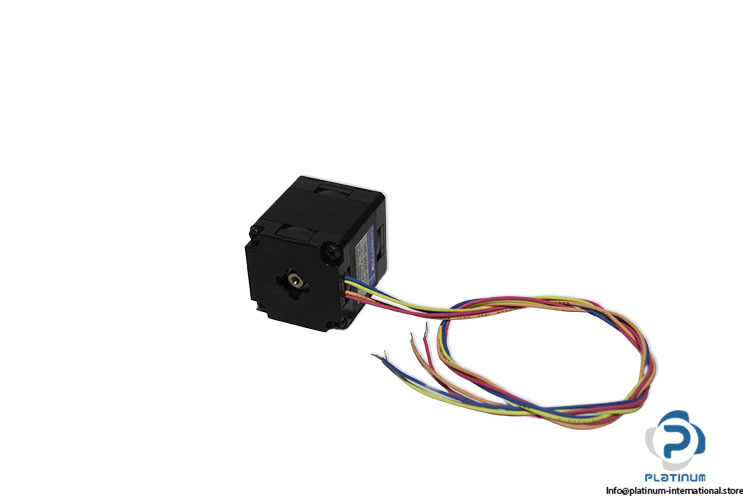

Sanyo Denki SH2281-5771 Stepper Motor
Nouveau
En stock1 unitéPrêt à être expédié
33,33$
Stepper Motor SANYO DENKI SANMOTION F2 stepper motor with a 1.8° step angle, compact 28 mm flange, bipolar wiring, and D-shaped single shaft for precise industrial motion control applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Ref No | 05229 |
| Series | SANMOTION F2 |
| Basic step angle [ º ] | 1.8 |
| Motor flange size[mm] | 28 |
| Motor length [mm] | 32 |
| Single/Dual shaft | Single shaft |
| Output shaft | D-shaped |
| Holding torque [N·m] | 0.07 |
| Rotor inertia [×10-4kg·m2] | 0.01 |
| Rated current [A/phase] | 1 |
| Wiring | Bipolar |
| Connection type | Lead wire type |
| Allowable thrust load [N] | 3 |
| Allowable radial load [N] | 42 |
| Operating temperature range | -10 TO +50? |
| Operating humidity range | 20 to 90% RH (non-condensing) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100378 |
| Weight | 0,12 |
