Scame 563.1686 Interlocked Socket
Nouveau
En stock1 unitéPrêt à être expédié
99,99$
INTERLOCKED SOCKET
SCAME 563.1686 Interlocked Socket, ADVANCE 2 series, 3P+E, 16 A, 380“415 V AC, IP67 thermoplastic housing. Includes SCAME 590.YF323B Switching Unit for enhanced safety and performance.16A23PE563.1686590.YF323BAdvanceIndustrialInterlockedIP67PowerScameSeriesSocketSwitchingthermoplasticUnit
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

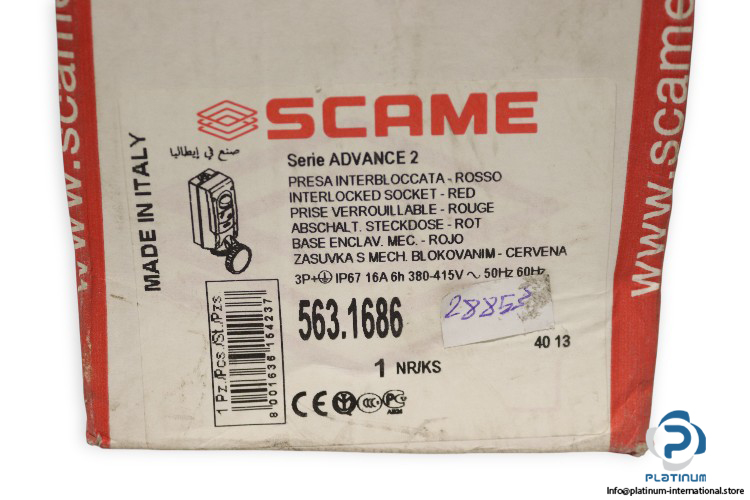

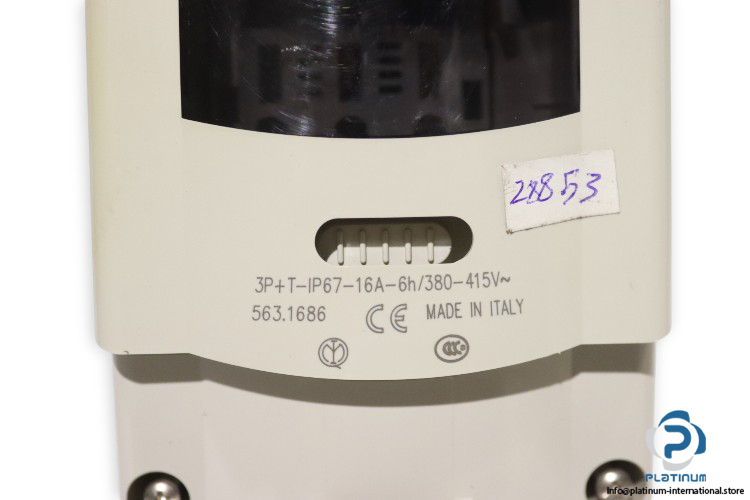

SCAME 563.1686 INTERLOCKED SOCKET “ ADVANCE 2 SERIES

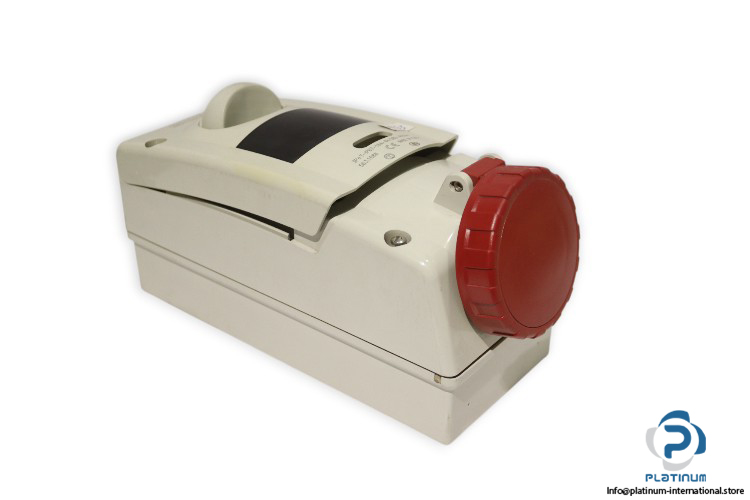

The SCAME 563.1686 Interlocked Socket from the ADVANCE 2 series is a robust and reliable industrial power connection solution. Built with durable thermoplastic material and high protection (IP67), it ensures safe operation in demanding environments. This model includes compatibility with the SCAME 590.YF323B Switching Unit, providing enhanced functionality for industrial applications.
Manufacturer: Scame
Type: Interlocked Socket
Part No.: 563.1686
Serial No.: 8001636154237
Code: 40 13
Series: ADVANCE 2
Attachment
| Color | Red |
| No of Poles | 3P + E |
| Flange | 106 x 240 mm |
| Cable Entry | M25x1.5 |
| Padlock | 5 mm |
| Current | 16 A |
| Voltage Rating | 380 to 415 V AC |
| Frequency | 50/60 Hz |
| Material | Thermoplastic |
| IP Rating | IP67 |

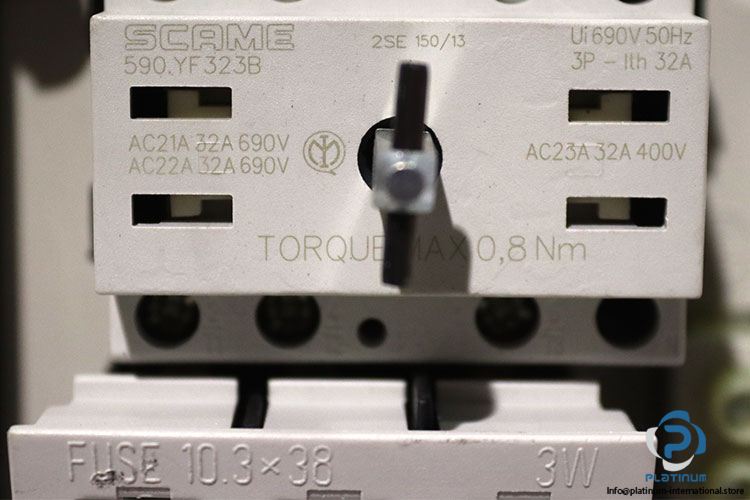

| Attachment | SCAME 590.YF323B Switching Unit |
| Code | 2SE 150/13 |
| Fuse | 10.3 × 38 |
| Power | 3 W |
| Torque | Max 0.8 Nm |
| No of Poles | 3 |
| Thermal Current | 32 A |
| Rated Voltage | 400 / 690 V |
| Rated Insulation Voltage | 690 V |
| Frequency | 50 Hz |
