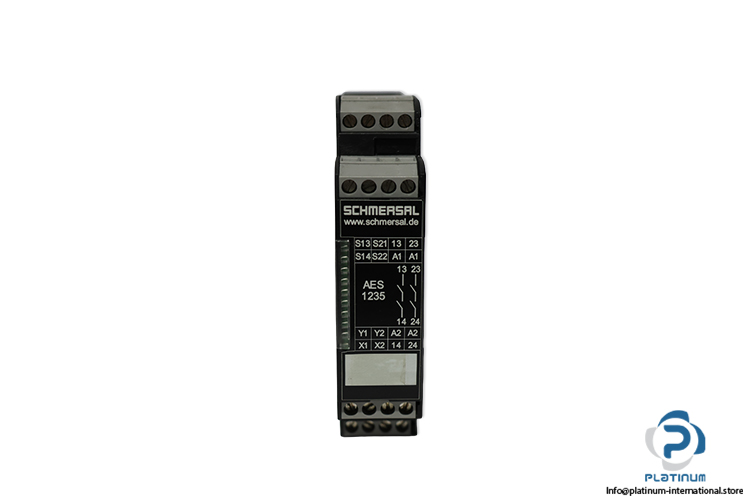

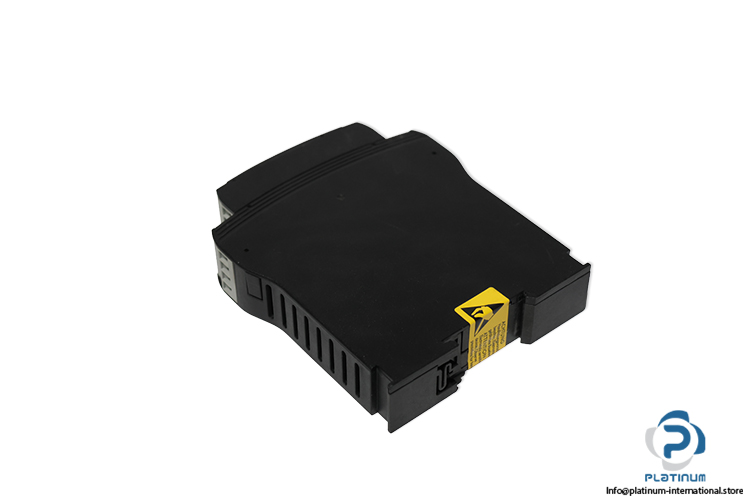

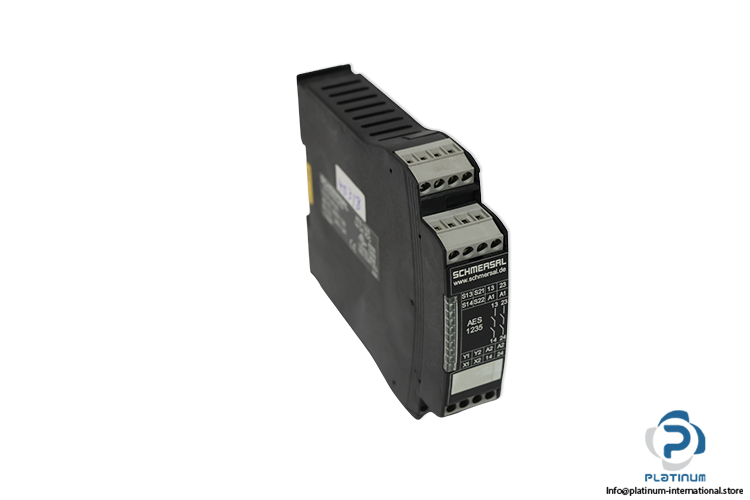

Schmersal AES 1235 Safety Control Monitoring Module
Utilisé
Disponible sur demande
Safety Control Monitoring Module The Schmersal AES 1235 is a compact 24 V AC/DC safety monitoring module with safety contacts and signaling outputs for industrial safety applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Part No. | 101170049 |
| Rated Operating Voltage | 24 V AC/DC |
| Thermal Current | 6 A |
| Frequency | 50 … 60 Hz |
| Power Consumption | 5 W |
| Rated Impulse Voltage | 4 kV |
| Contact | 1 Normally Open (NO) + 2 Normally Closed (NC) |
| Rated Contact Voltage | 230 V AC / 24 V DC, 3 / 2 A |
| LEDs No. | 1 |
| Safety Contacts No. | 2 |
| Undelayed Semi-Conductor Outputs | 2 |
| Signaling Outputs No. | 2 |
| Material | Ventilated Glass-Fiber Reinforced |
| Protection Class | IP40 |
| Ambient Temperature | 0 … 55 °C |
| Dimensions | 100 x 22.5 x 121 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104009 |
| Weight | 0,19 |
