Schmersal AZ 16 ZVRK-1762 Safety Switch

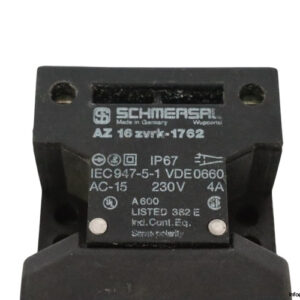

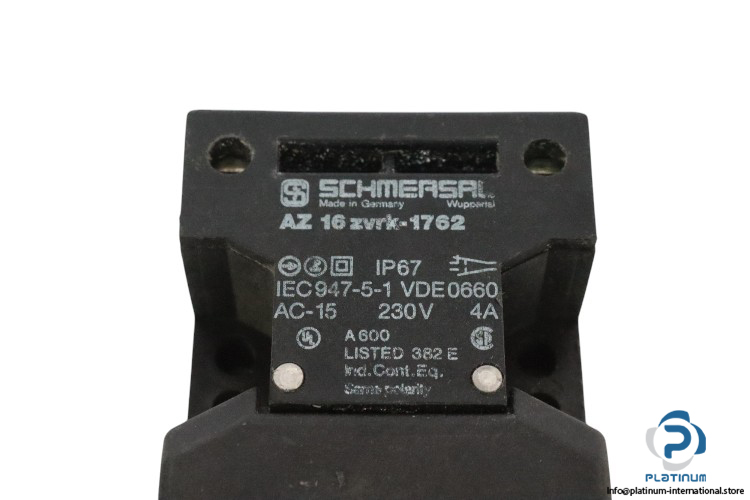

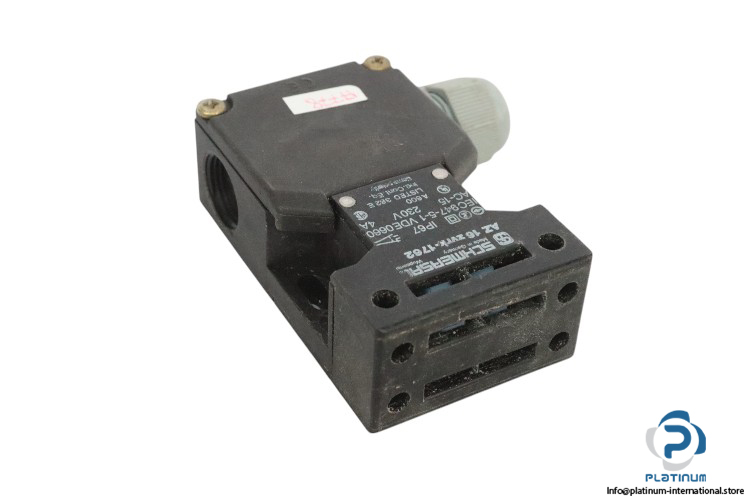

SCHMERSAL AZ 16 ZVRK-1762 Safety Switch

The SCHMERSAL AZ 16 ZVRK-1762 Safety Switch is a highly reliable and durable safety switch designed for use in industrial safety applications. With its robust construction and advanced features, this switch ensures maximum protection and efficient operation in harsh environments.

• Manufacturer: SCHMERSAL
• Type: Safety Switch
• Model: AZ 16 ZVRK-1762

Technical Specifications:

• Enclosure: Glass-fibre reinforced thermoplastic, self-extinguishing
• Rated Operational Current / Voltage: 4 A / 230 VAC, 4 A / 24 VDC
• Connection: Screw connection or M 12 x 1 connector, 4 poles
• Cable Section: 0.25…2.5 mm²
• Cable Entry: 3 x M16 x 1.5
• Rated Impulse-Withstand Voltage (Uimp): 6 kV
• Rated Insulation Voltage (Ui): 500 V
• Thermal Current: 10 A
• Required Short-Circuit Current: 1000 A
• Max. Fuse Rating: 6 A gG D-fuse
• Actuator: Stainless steel
• Contact Material: Silver
• Actuating Speed: Max. 0.2 m/s
• Protection Class: IP 67
• Ambient Temperature: -30 to +80 °C

With its self-extinguishing glass-fibre reinforced thermoplastic housing and high protection class, the SCHMERSAL AZ 16 ZVRK-1762 Safety Switch is perfect for industrial environments where safety and durability are crucial.
