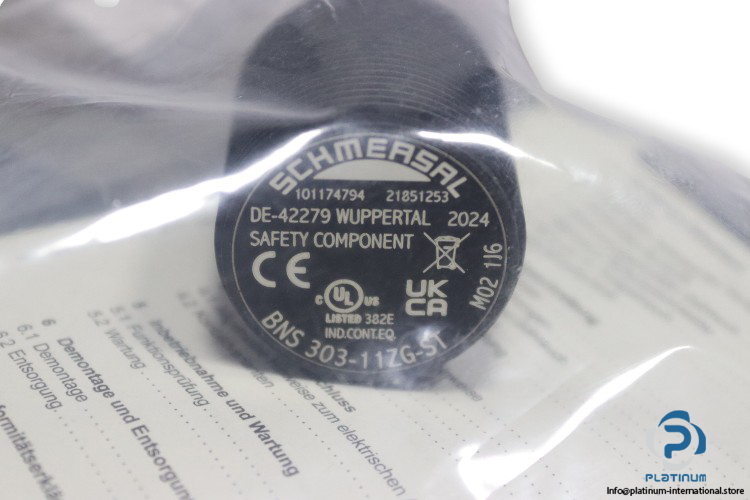

Schmersal BNS 303-11ZG-ST Magnetic Safety Sensor

Manufacturer: SCHMERSAL
Type: Magnetic Safety Sensor
Model: BNS30311ZGST
Part No.: 101174794

Switching Distance: ON S_ao: 5mm, OFF S_ar: 15 mm
Safety Contacts No.: 2
Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
Switching Current Max.: 0.01 A
Switching Capacity Max.: 0.24 W
Switching Frequency Max: 5 Hz
Actuating Element: Magnet
Direction of Motion: Head-On to the Active Surface
Electrical Connection Gender: Connector M12, 4-Pole
Mounting Material: 2 x M30 x 1.5 Nuts
Material: Glass-Fiber, Reinforced Thermoplastic
Protection Class: IP67
Temperature: -25 … 70 °C
Sensor Length, Diameter: 44, 30 mm
