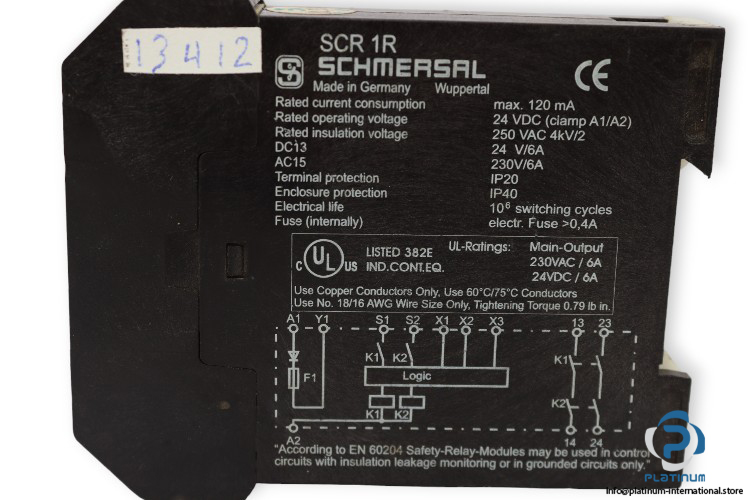

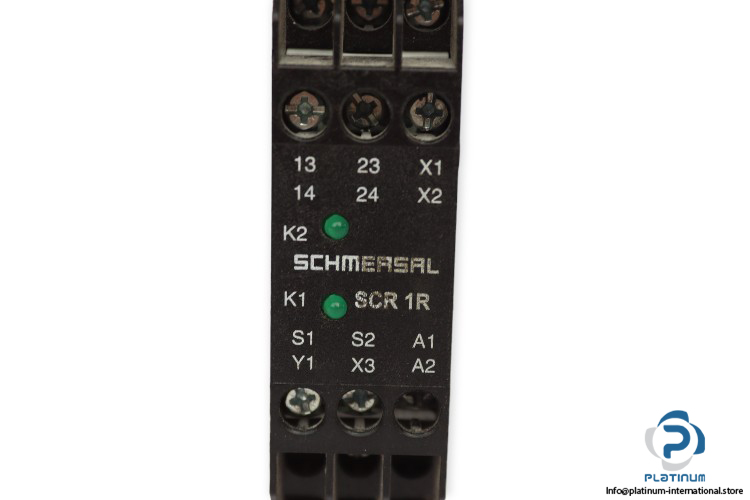

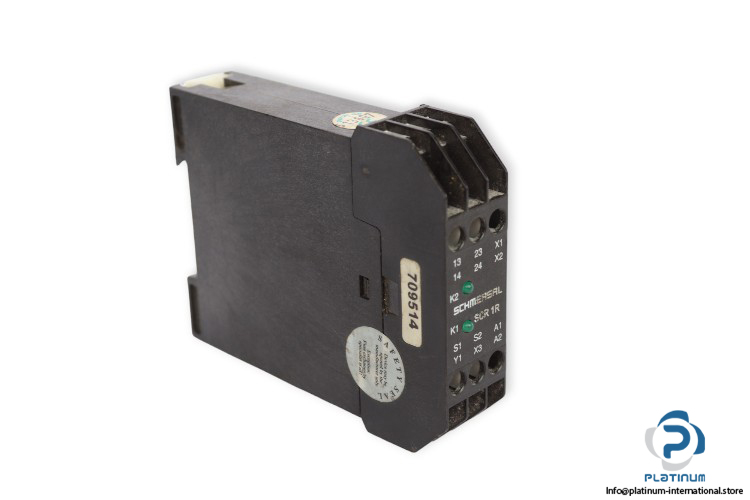

Schmersal SCR 1R Safety Monitoring Module
Manufacturer: SCHMERSAL
Type: Safety Monitoring Module
Model: SCR1R
Rated Operating Voltage: 24 V DC
Rated Current Consumption Max.: 120 mA
Rated Insulation Voltage: 250 V AC
Rated Impulse Voltage: 4 kV
Power Consumption: 2.6 W
Contact: 2 Normally Open (NO)
Contact Ratings: AC-15: 250 V / DC-13: 24 V / 6 A
Housing Material: Glass-Fiber Reinforced Plastic
Protection Class: IP40
Ambient Temperature: -25 … 55 °C
Dimensions H × W × D: 82 × 22.5 × 98.8 mm
