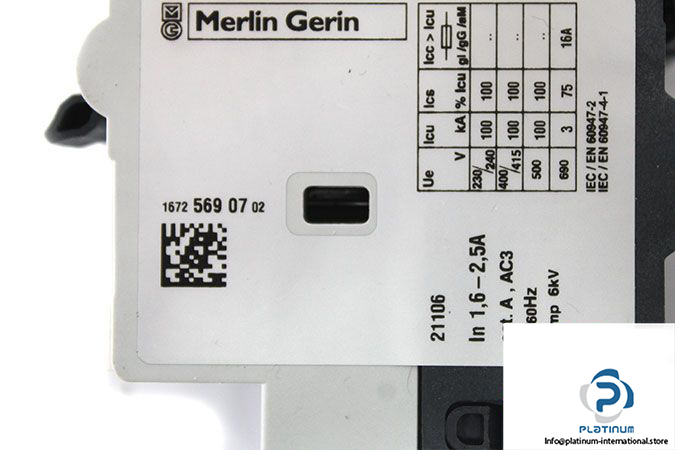

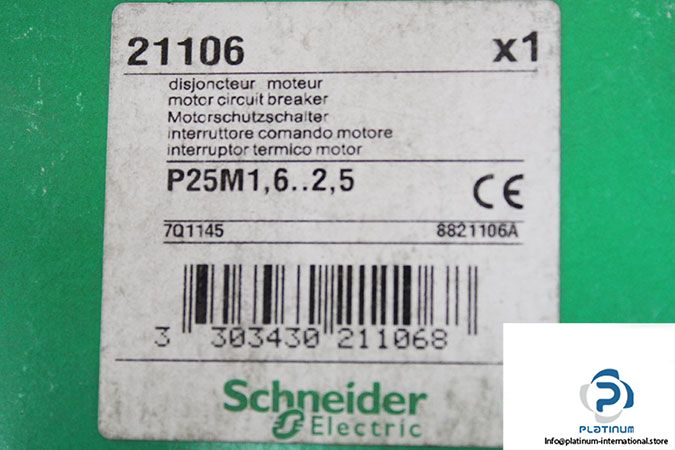

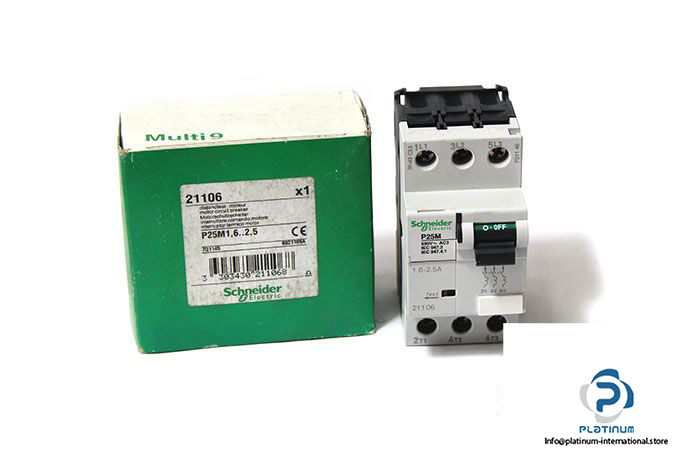

Schneider 21106 – P25M CIRCUIT Breaker
Manufacturer: SCHNEIDER ELECTRIC
Type: MINIATURE CIRCUIT BREAKER
Model: 21106 – P25M
Device Application: Motor
Range Of Product: P25M
No. Of Protected Poles: 3
Rated Current: 2.5 A
Rated Voltage: 400 V AC
Frequency: 50/60 Hz
Tightening Torque: 1.7 N.m
Dimensions ( Height x Width X depth ): 89 x 45 x 70 mm
Operating Altitude: 2000 m
Connections: Clamps terminal 2 cables 1…6 mm² rigid
Degree Of Protection (IP): IP20
Temperature: -20 … 60 °C
Weight: 0.30 kg
