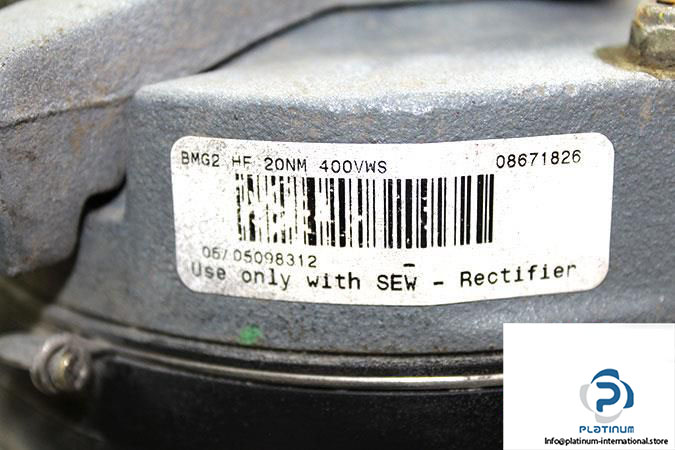

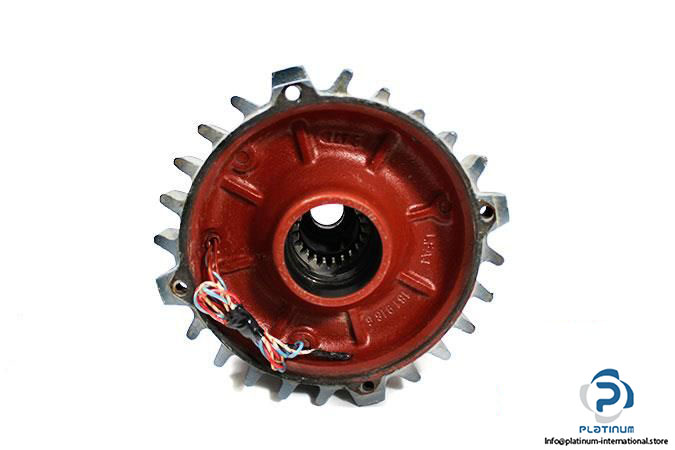

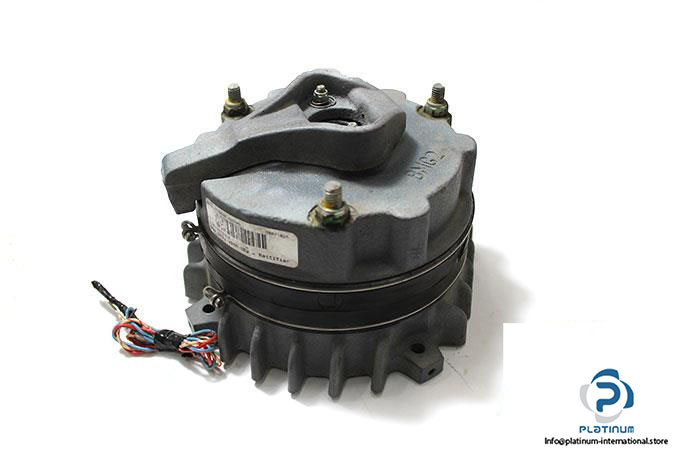

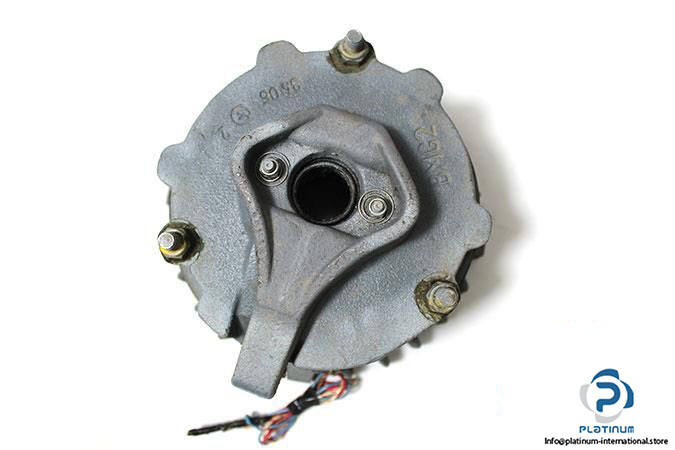

SEW BMG2 400V 20Nm ELECTRIC BRAKE

Manufacturer: SEW-EURODRIVE

Type: Electric Motor Brake

Model: BM2

MRN: 08671621 / 08671826

Uses: for motors size DT90/DV100

Voltage: 400V WS, use with SEW rectifier

Torque: 20 Nm

Current: 0.16 A

Coil Power: 40 W

Outer diameter: 18.5 cm

Uses: for motors size DT 90/ DV 100

Red Spring Part No.: 01351516

Normal Spring Part No.: 01351508

Rubber Sealing Collar Part No.:182 026 5
