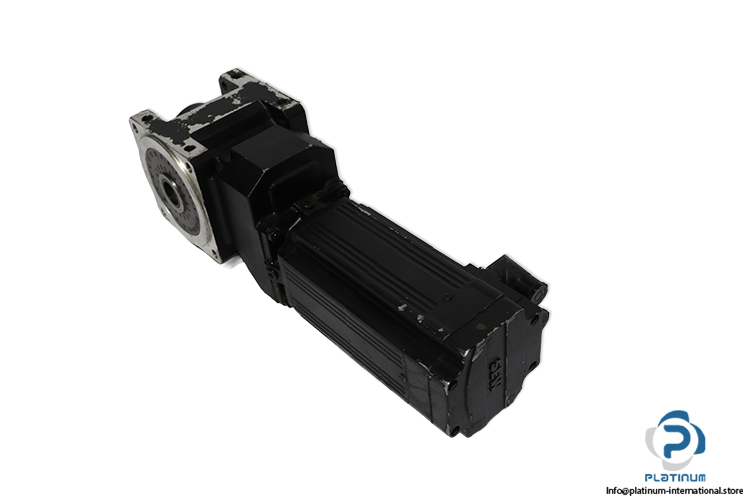

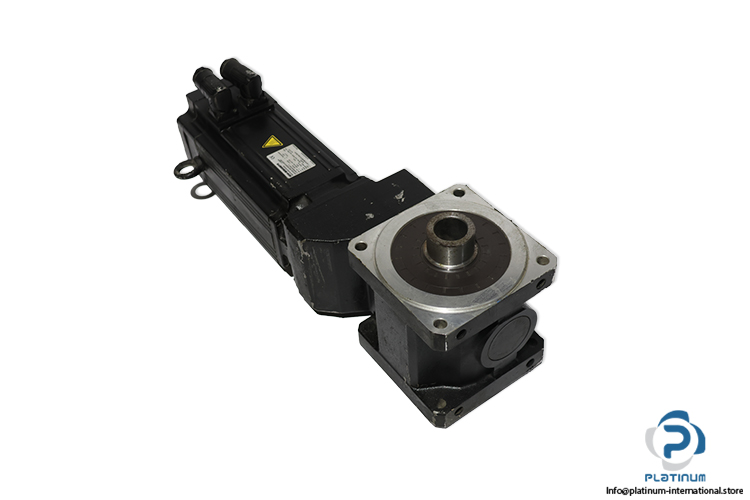

SEW BSHF402B CMP71M/BP/KY/AK0H/SB1 Servo Helical-Bevel Gearmotor
Utilisé
En stock1 unitéPrêt à être expédié
Servo Helical-Bevel Gearmotor SEW BSHF402B CMP71M/BP/KY/AK0H/SB1 servo gearmotor with 6.00 ratio, 205 Nm output torque, 400 V motor, BP1 brake and IP65 enclosure.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

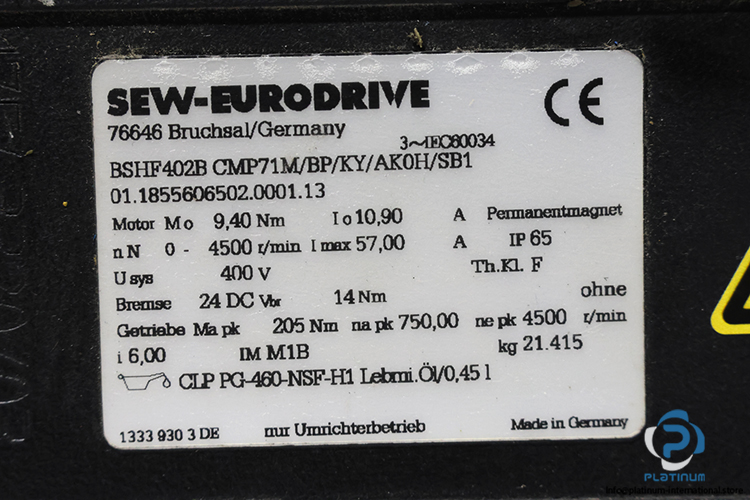

| Part No. | 01.1855606502.0001.13 |
| Pos. no. | 200 |
| Speed [r/min] | 3600 / 600 |
| Total ratio [i] | 6,00 |
| Mounting position | M1B |
| Input speed Nepk [rpm] | 4500 |
| Output speed napk [min-1] | 750,00 |
| Output torque Mapk [Nm] | 205 |
| ISO code | CLP PG-460-NSF-H1 |
| Lubricant type | Oil f.Food |
| Lubricant volume [l] | 0,45 |
| Backlash PHI max ['] | 6 angular minute |
| Rated speed nN [rpm] | 4500 |
| Standstill torque M0 [Nm] | 9,40 |
| Max. limit torque Mpk [Nm] | 30,80 |
| I0 standstill current [A] | 10,90 |
| Max. permitt. current Imax [A] | 57,00 |
| Cyclic duration factor S1-S10 | S1 |
| Motor voltage [V] | 400 |
| Max. permitted frequency [Hz] | 375 |
| Thermal class/Enclosure[IP] | F / 65 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake type+size | BP1 |
| Brake voltage [V]/-torque [Nm] | 24 DC / 14 |

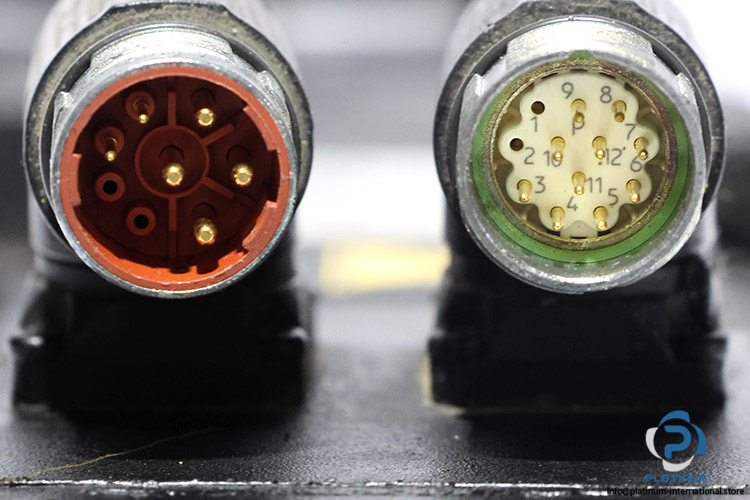

| Connection | circular connector |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1101350 |
| Weight | 20,8 |
