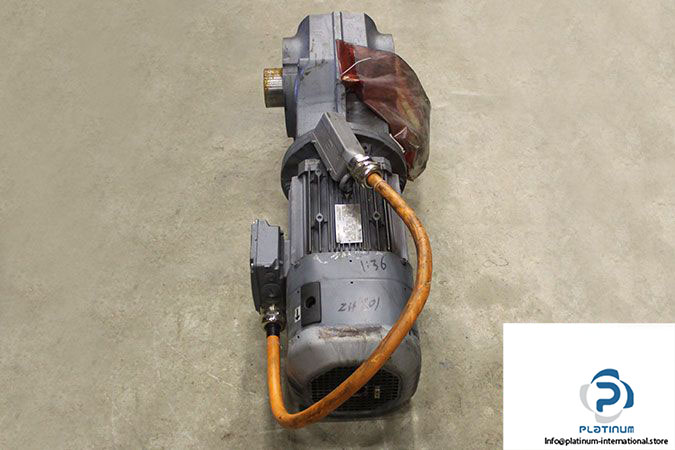

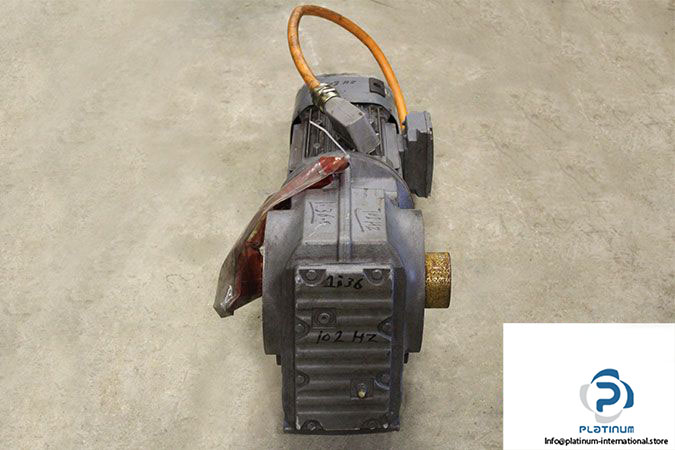

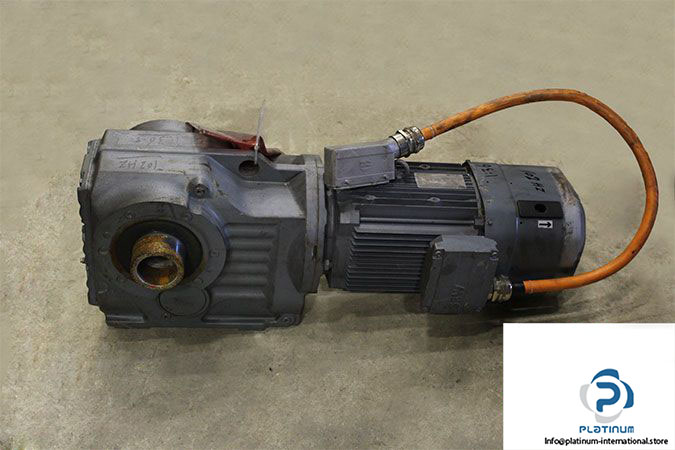

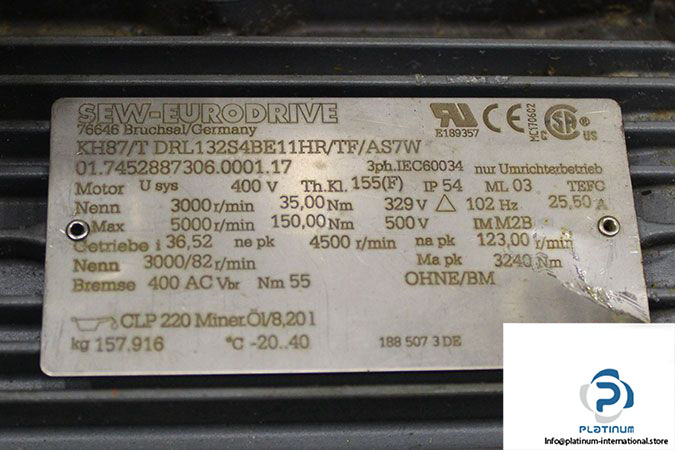

SEW KH87/T DRL132S4BE11HR/TF/AS7W Helical-Bevel Gearmotor

Manufacturer: SEW-EURODRIVE

Type: Helical-Bevel Gearmotor

Model: KH87/T DRL132S4BE11HR/TF/AS7W



Max. Voltage: 500 V AC

Nominal Voltage: 400 V AC

Rated Voltage: 329 V AC

Rated Current At 102 Hz: 25.50 A

Max. Speed: 5000 min^-1

Rated. Speed: 3000 min^-1

Minimum Output Speed: 123 min^-1

Motor/Gear Unit Speed: 3000/82 min^-1

Rated Frequency: 102 Hz

Nominal Torque: 35 Nm

Max. Torque: 150 Nm

Minimum Output Torque: 3240 Nm

Ratio: 36.52

Voltage Brake: 400 V AC

Torque Brake: 55 Nm

Temperature: -20…40 °C

Thermal Class: F

Protection Class: IP54

Weight: 143.20 kg
