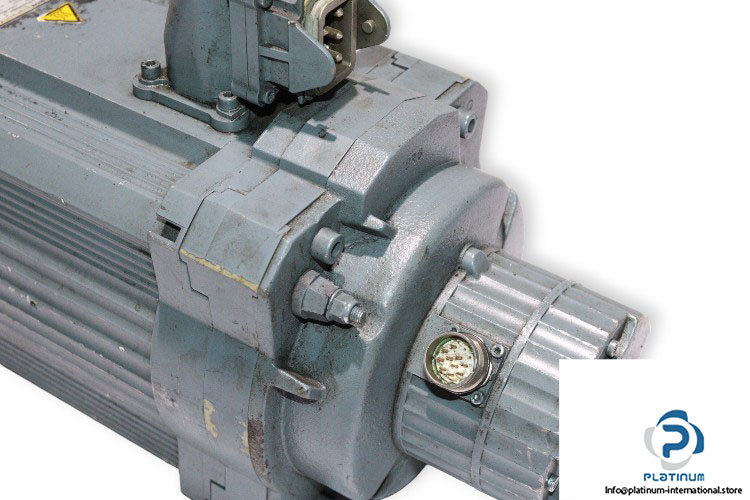

SEW KHF67/R CM112S/BR/TF/AS1H/SB50 Bevel Helical Servo Gearmotor

SEW Bevel Helical Servo Gearmotor KHF67/R CM112S/BR/TF/AS1H/SB50

The **SEW KHF67/R CM112S/BR/TF/AS1H/SB50 Bevel Helical Servo Gearmotor** is designed for high-performance industrial applications. This motor combines advanced bevel helical gear technology with precise servo control for efficient power transmission. With a high rated speed, low standstill torque, and a maximum limit torque of 82.3 Nm, it is ideal for systems requiring reliable operation in demanding environments.

Manufacturer: SEW

Type: Bevel Helical Servo Gearmotor

Model: KHF67/R CM112S/BR/TF/AS1H/SB50

Part No.: 01.1245715601.0001.08

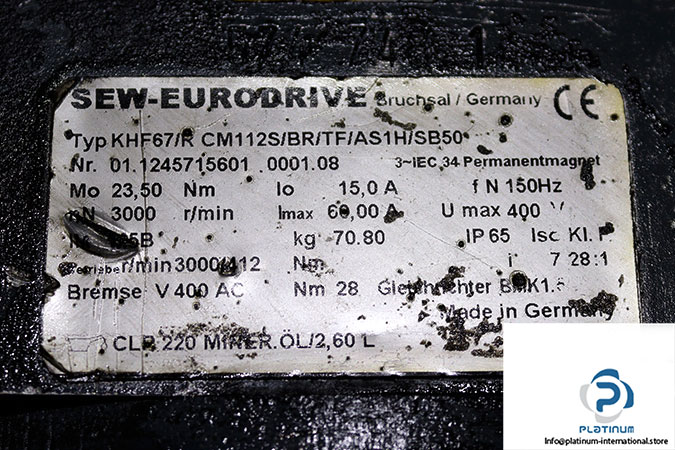

Technical Data:

• GEAR Unit: KHF67/R
• Motor Size: 112
• Speed [r/min]: 3000 / 412
• Total Ratio [i]: 7.28 / Infinite
• Mounting Position: M5B
• Lubricant / Volume [l]: CLP 220 Miner.Oil / 2.60
• Hollow Shaft: 40 mm
• Design: B5 flange design and hollow shaft with shrink disk
• Flange: 250 mm
• Rated Speed [rpm]: 3000
• Standstill Torque [Nm]: 23.50
• Max. Limit Torque [Nm]: 82.30
• I0 Standstill Current [A]: 15.00
• Max. Permitted Current [A]: 60.00
• Cyclic Duration Factor [S1-S10]: S1
• Motor Voltage [V]: 400
• Max. Permitted Frequency [Hz]: 150
• Thermal Class / Enclosure [IP]: F / 65

SEW KHF67/R Gear Unit:

• Gear Type: Helical bevel gear motor in B5 flange mounted with hollow shaft and shrink disc
• Gear Unit Size: 67
• Encoder: AS1H, multi-turn encoder
• Plug Connector: SB50
• TF, Thermistor (PTC Resistor)
• Brake Voltage: 400 V AC
• Brake Torque: 28 Nm
