SEW RF37 DRS90L4BE2/MM30/LN Helical Gearmotor
Utilisé
En stock3 unitésPrêt à être expédié

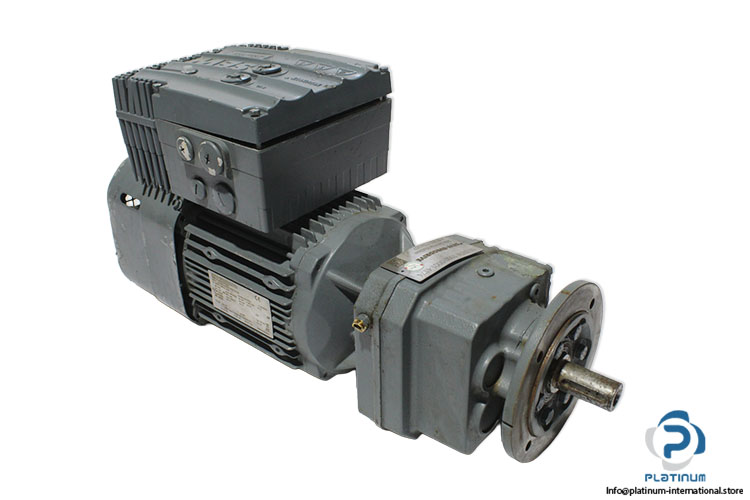

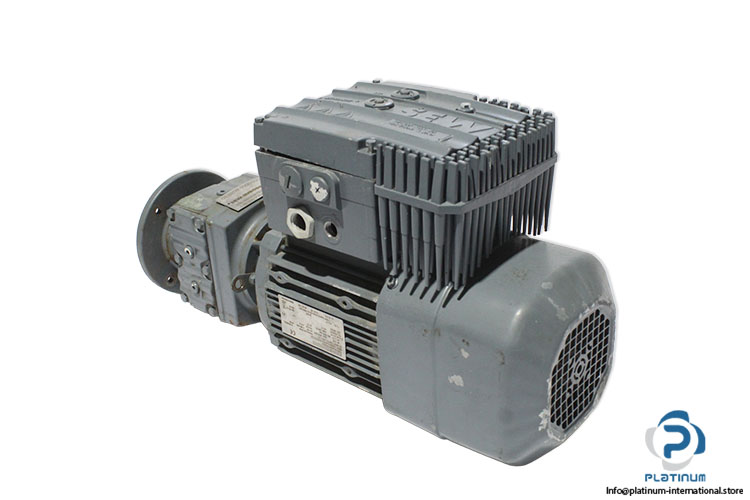

Helical Gearmotor The SEW-Eurodrive RF37 DRS90L4BE2/MM30/LN is a helical gearmotor with an integrated MOVIMOT MM07 inverter drive, providing efficient variable-speed control, reliable torque, and dependable performance for industrial automation and power transmission applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

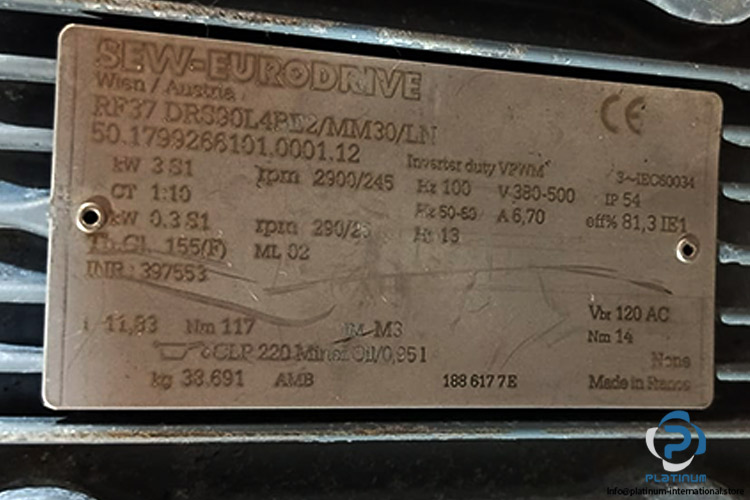

| Part No. | 50.1799266101.0001.12/01.6637256101.0001.20/01.6647156701.0001.21 |
| Input speed [r/min] | 2900 - 290 |
| Output speed [r/min] | 245 - 25 |
| Total ratio [i] | 11,83 |
| Ma max [Nm] | 183 |
| Output torque [Nm] | 117 |
| Service factor SEW-FB | 1,55 |
| Mounting position | M3 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 0,95 |
| Motor power [kW] | 3 / 0.3 |
| Motor mains power [kW] | 2,200 |
| Motor frequency [Hz] | 100 |
| Cyclic duration factor S1-S10 | S1 |
| Setting range (CT) | 1:10 |
| Motor frequency min. [Hz] | 13 |
| Motor voltage [V] | 380-500 |
| Line frequency [Hz] | 50-60 |
| MM rated main current [A] | 6,70 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| International efficiency class | IE1 |
| Motor mains efficiency [%] | 81,3 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 120 AC / 14 |
| Brake rectifier nameplate | None |
| MOVIMOT | MM30 |

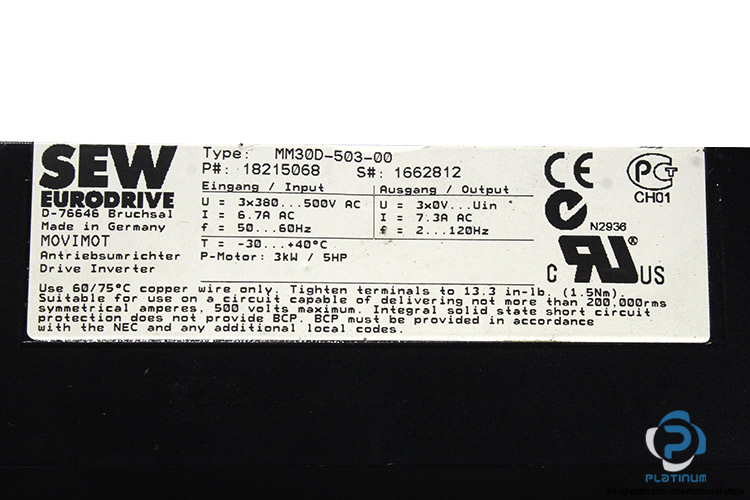

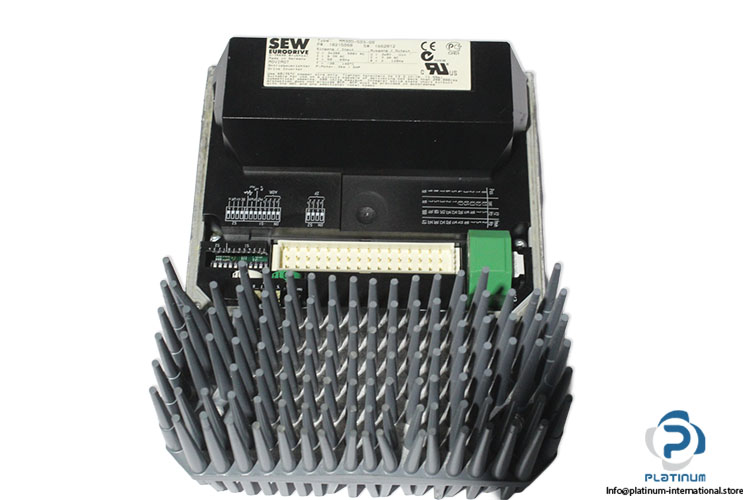

| Attached with | SEW MM30D-503-00 Movimot Inverter Drive |
| Range | MOVIMOT |
| P NO | 18215068 |
| S NO | 1662812 |
| Supply Voltage, Input | 3-Phase 380 … 500 V AC |
| Rated Current, Input | 6.7 A |
| Frequency, Input | 50 … 60 Hz |
| Power, Input | 3kW / 5HP |
| Rated Voltage, Output | 3-Phase 0 … 380 – 500 V AC |
| Rated Current, Output | 7.3 A |
| Frequency, Output | 2 … 120 Hz |
| Temperature | -30 … 40 °C |
| Stock key | jo-004 |
| Condition | Used |
| SKU | 1100465 |
| Weight | 38,65 |
