SEW WF20 DT71D4/BMG Gearmotor
Utilisé
En stock1 unitéPrêt à être expédié
Gearmotor
SEW-Eurodrive WF20 DT71D4/BMG Gearmotor features a 0.37 kW motor power, multi-range voltage options, and a brake torque of 5 Nm. Designed for efficiency and reliability in various industrial applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

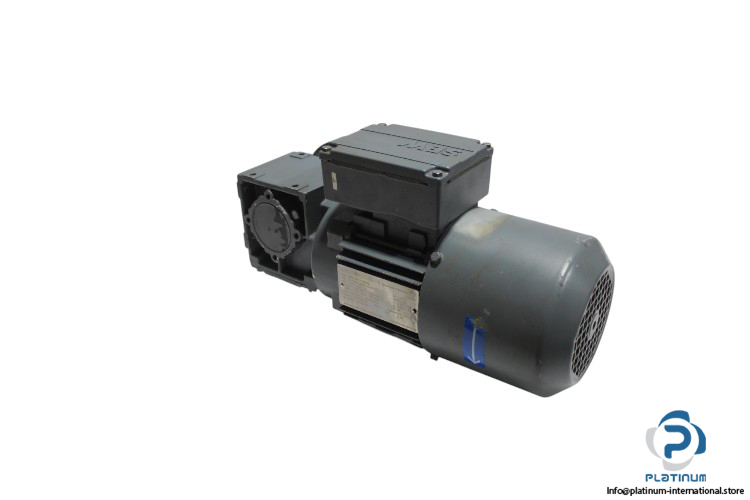

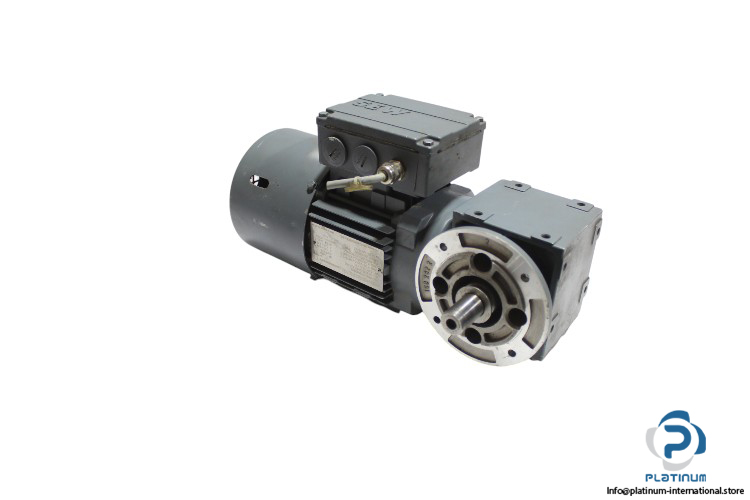

SEW-Eurodrive Gearmotor WF20 DT71D4/BMG
The SEW-Eurodrive Gearmotor WF20 DT71D4/BMG is a versatile and efficient motor designed for a wide range of industrial applications. With a compact design and multi-range voltage options, this gearmotor offers reliable performance in demanding environments.

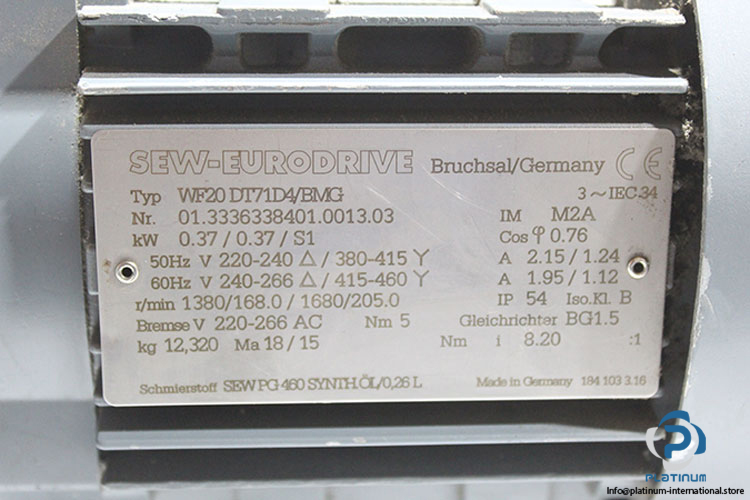

Manufacturer: SEW-Eurodrive
Model: WF20 DT71D4/BMG
Type: Gearmotor
Part No.: 01.3336338401.0013.03
| Rectifier | BG1.5 |
| Ratio | 8.20 |
| Gear Unit | WF20 |
| Speed [r/min] | 290 to 18 / 2900 to 176 |
| Mounting Position | M2A |
| Cos phi | 0.76 |
| Speed | 1380 to 168 / 1680 to 205 rpm |
| Motor Power [kW] | 0.37 |
| Cyclic Duration Factor | S1 |
| Multi-Range Voltage (50Hz) | 220 to 240 V delta / 380 to 415 V Y |
| Multi-Range Voltage (60Hz) | 240 to 266 V delta / 415 to 460 V Y |
| Current | 2.15/1.24 A , 1.95/1.12 A |
| Thermal Class / Enclosure | (F) / IP55 |
| Brake Voltage | 220-266 V AC |
| Brake Torque | 5 Nm |
| Lubricant | PG 460 SYNTH. OIL / 0.26 L |
