SHS SLP 3444 700 8AR00 2 Phase Hybrid Stepper Motor
Moteur pas à pas hybride 2 phases SHS SLP34447008AR00 avec angle de pas de 1,8°, couple de 8,2 N·m, configuration BI-P 7,0 A, montage à bride carrée et marquage CE pour systèmes d'automatisation de précision. Recommandé pour machines CNC, robotique et applications de contrôle de mouvement haute précision.
SHS SLP34447008AR00 2 Phase Hybrid Stepper Motor

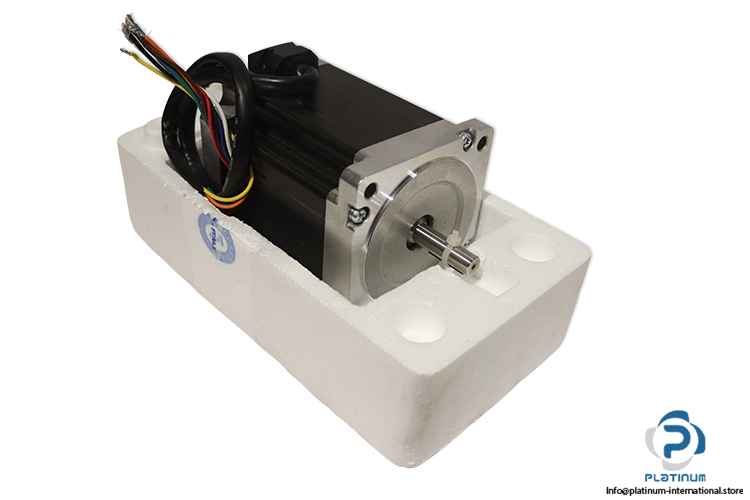

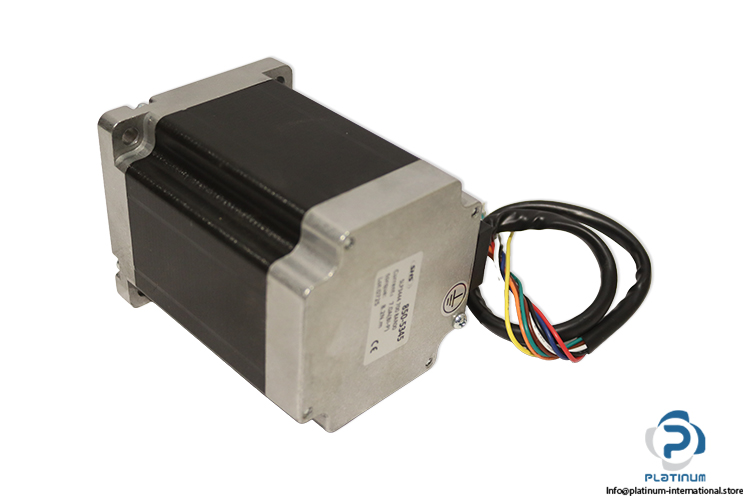

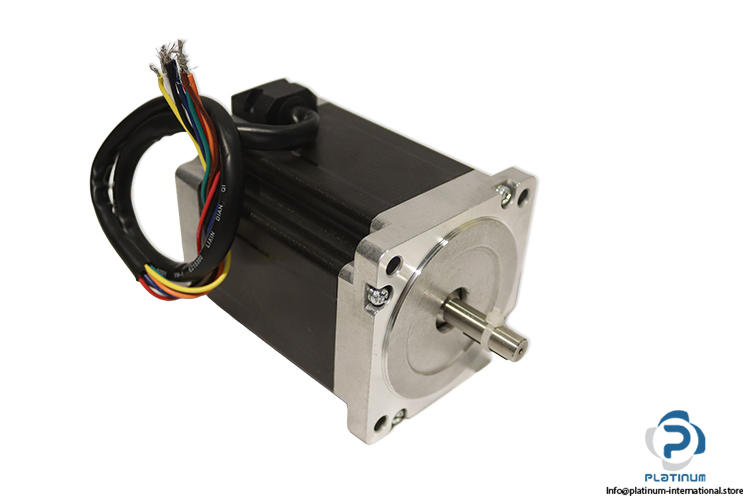

The SHS SLP34447008AR00 is a high-torque 2-phase hybrid stepper motor engineered for precision positioning, controlled motion, and demanding industrial automation systems.

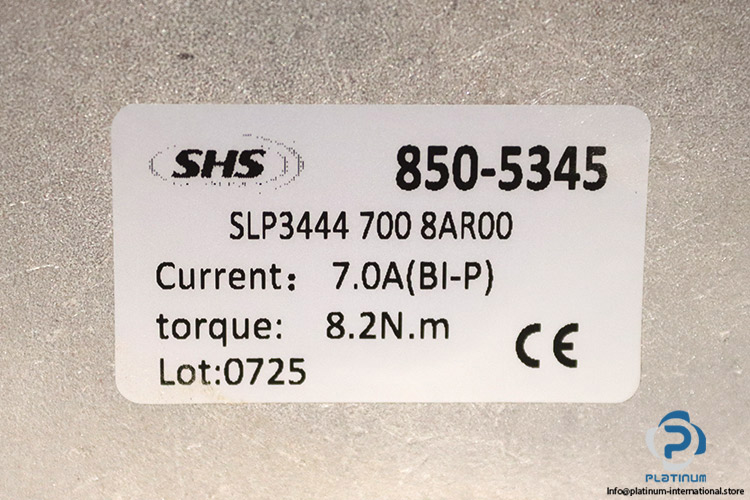

Manufacturer: SHS
Type: 2 Phase Hybrid Stepper Motor
Model: SLP34447008AR00
Part No.: 850-5345
Lot No.: 0725
Ideal for CNC systems, robotics, automation machinery, and high-precision positioning applications.
Please contact us via Ask for assistance with any inquiries.
| Step Angle | 1.8 Degree |
| Current | 7.0 A (BI-P) |
| Torque | 8.2 N·m |
| Resistance | 0.4 Ohm |
| Inductance | 3.2 mH |
| Holding Torque | 820 N.cm |
| Detent Torque | 12.5 N.cm |
| Rotor Inertia | 1800 g.cm² |
| Length | 114 mm |
| Temperature Rise | 80 °C Max |
| Ambient Temperature | -20 to 50 °C |
| Shaft Radial Play | 0.02 Max (450 g-load) |
| Shaft Axial Play | 0.08 Max (920 g-load) |
| Bi/Unipolar | Bi-P (8) |
| Mounting | Square Flange Mounting |
| Output Shaft | Solid |
| Connection | Multi-core Cable Connection (Color-coded Wires) |
| Marking | CE |
