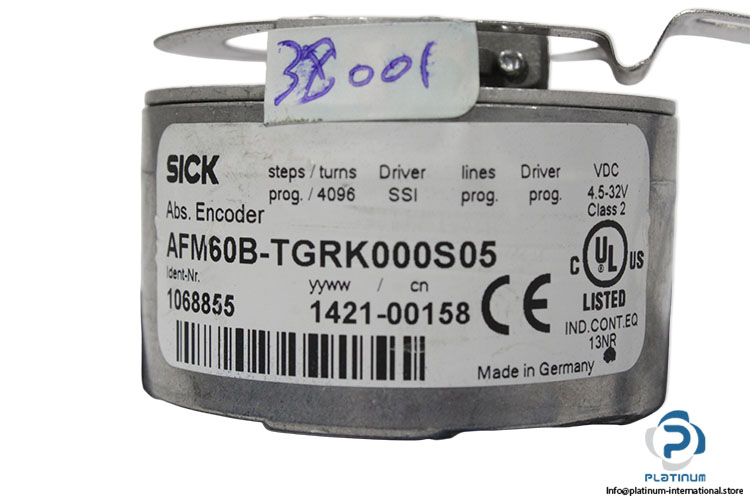

Sick AFM60B-TGRK000S05 Absolute Encoder
Utilisé
En stock7 unitésPrêt à être expédié
Absolute Encoder with Cable SICK absolute encoder with SSI + incremental interface, 15-bit resolution, 12-bit revolution count, and 14 mm shaft, designed for precise industrial position measurement.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Ident-Nr | 1068855 |
| Voltage Supply | 4.5 to 32 VDC |
| Power Consumption | 0.7 W |
| Cable | (Voltage: 300 V) |
| Steps per revolution (max. resolution) | 32,768 (15-bit) |
| Number of revolutions | 4,096 (12-bit) |
| Shaft diameter | 14 mm |
| Max. resolution (steps per revolution x number of revolutions) | 15-bit x 12-bit (32,768 x 4,096) |
| Communication interface | SSI |
| Communication interface detail | SSI + incremental |
| Initialization time | 50 ms |
| Clock frequency | max. 2 MHz |
| Pulses per revolution | 1/4 of the SSI steps per revolution |
| Output frequency | max. 600 kHz |
| Load current | max. 30 mA |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1093969 |
| Weight | 0,22 |
