Siemens 1 UA7113-4BB20-Z 3 Phase Electric Motor
Utilisé
En stock1 unitéPrêt à être expédié

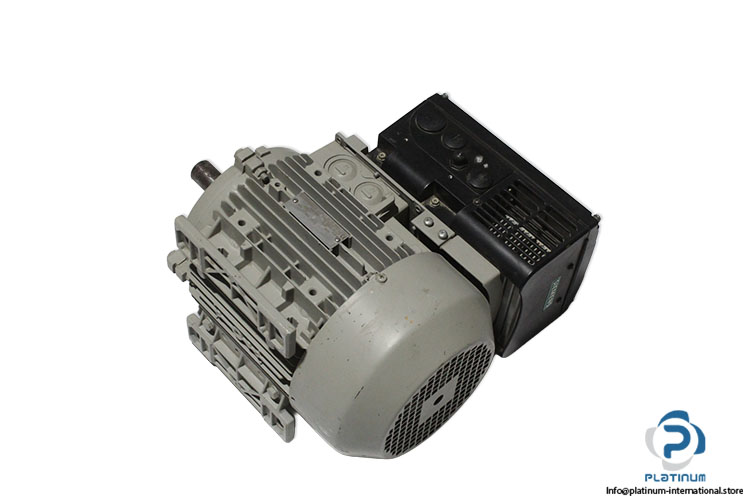

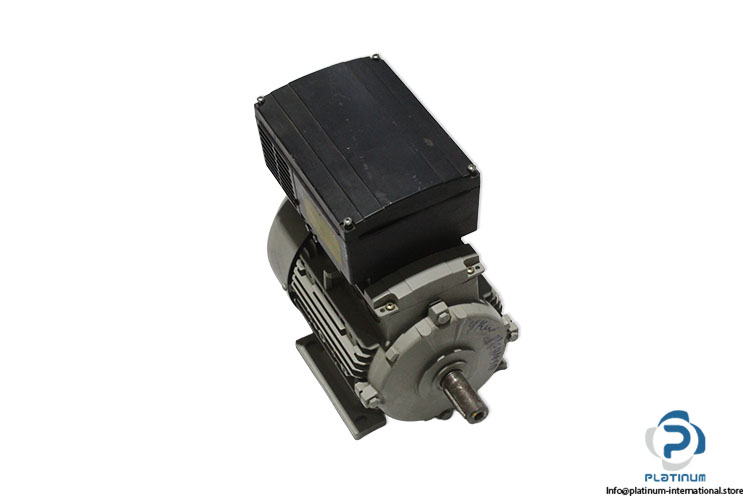

3 Phase Electric Motor SIEMENS 4 kW three-phase electric motor with 400 V rated voltage, 1440 rpm speed and COMBIMASTER CM400/3 integrated frequency inverter.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

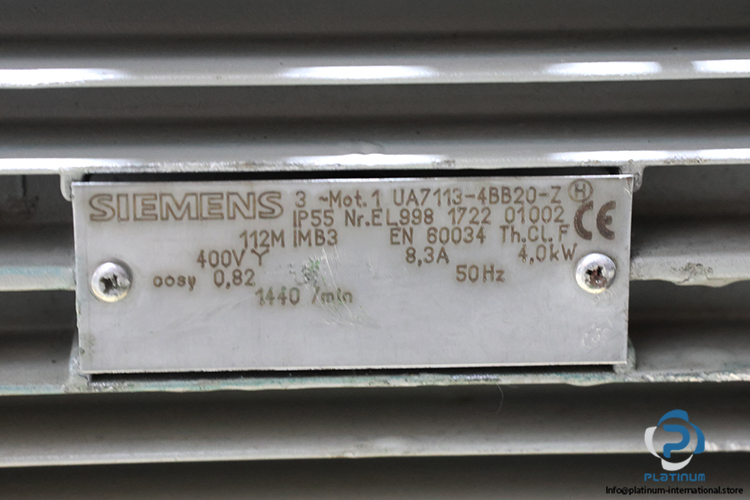

| Nr.EL | 998 1722 01002 |
| Rated Power [kW] | 4 |
| Rated Voltage [V] | 400 star |
| Rated Current [A] | 8.3 |
| Rated Speed [rpm] | 1440 |
| Power Factor | 0.82 |
| Rated Frequency [Hz] | 50 |
| Insulation class | Th.Cl.F |
| Protection Class | IP55 |
| Standard | EN 60034 |

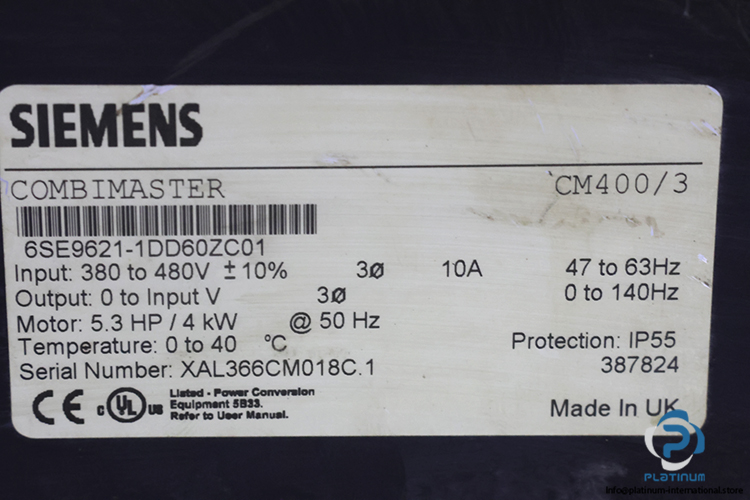

| Attached with | SIEMENS 6SE9621-1DD60ZC01 INTEGRATED FREQUENCY INVERTER |
| Series | COMBIMASTER, MODEL: CM400/3 |
| Serial Number | XAL366CM018C.1 |
| Input Voltage | 3 AC 380V to 480 (±10%), 47–63Hz |
| Input Current | 10 A |
| Output Voltage | 3 AC 0 … 380V to 480 (±10%), 0 – 140 Hz |
| Inverter Control | Microprocessor-controlled IGBT technology with closed-loop PI function |
| Motor power @ 50 Hz | .5.3 HP / 4 kW |
| Temperature | 0 to 40 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1101299 |
| Weight | 33.9 |
