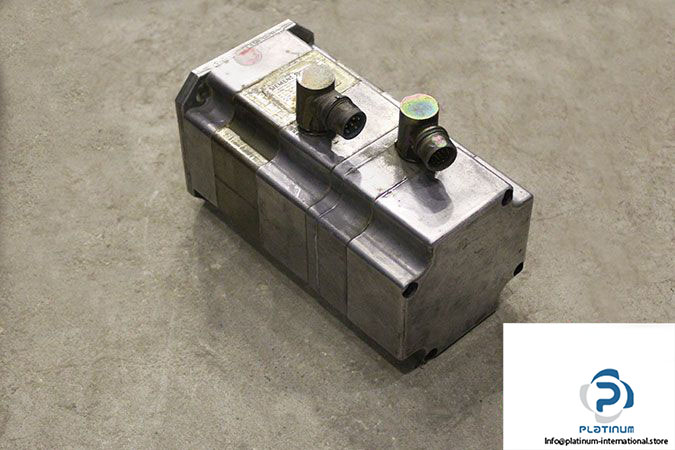

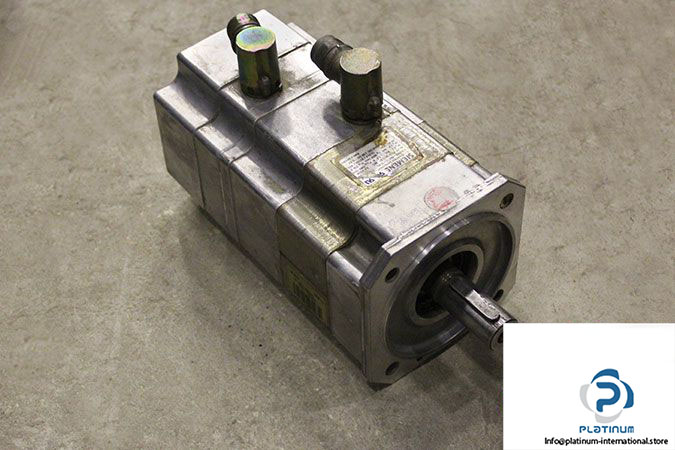

Siemens 1FK6060-6AF71-1GB0 Brushless Servomotor
Utilisé
En stock1 unitéPrêt à être expédié
2 450,00$
SIEMENS BRUSHLESS SERVO MOTOR
Siemens 1FK6 060-6AF71-1GB0 servo motor delivers 3.6 Nm rated torque, 3000 rpm speed, and 276 V operation. Built to EN 60034 standards with IP64 protection and dynamic braking system.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
SIEMENS 1FK6 060-6AF71-1GB0 BRUSHLESS SERVO MOTOR
The Siemens 1FK6 060-6AF71-1GB0 is a high-performance brushless servo motor engineered for dynamic and precise motion control. Ideal for industrial automation, this motor delivers excellent torque density, fast acceleration, and superior thermal handling.

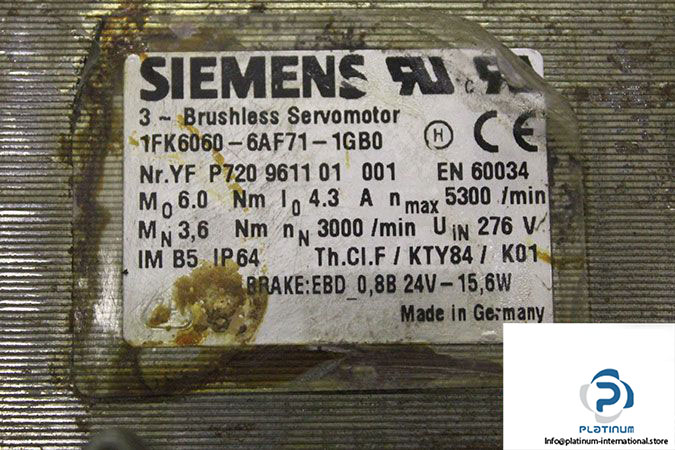

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FK6 060-6AF71-1GB0
Part No.: P720 9611 01 001
Standard: EN 60034
Series: 6
| Frame Size | 06 |
| Rated Voltage | 276 V |
| Rated Torque | 3.6 Nm |
| Static Torque | 6.0 Nm |
| Stall Current | 4.3 A |
| Rated Speed | 3000 rpm |
| Max. Speed | 5300 rpm |
| Brake Voltage | 24 VDC |
| Brake Power | 15.6 W |
| Brake Model | EBD 0.8B |
| Mounting Position [IM] | B5 |
| Protection Class | IP64 |
| Thermal Class | F |
