Siemens 1FK7060-5AF71-1EG2 Synchronous Servo Motor
Utilisé
En stock1 unitéPrêt à être expédié
SIEMENS COMPACT SERVO MOTOR
SIEMENS 1FK7060-5AF71-1EG2 is a compact synchronous servo motor offering 4.2 Nm rated torque, 254 V, and natural cooling. Designed for reliable, high-speed industrial automation applications with IP65/IP67 protection and integrated EnDat encoder.1FK7060AutomationCompactControlDriveEncoderEnDatHighIndustrialIP65MotionmotorSeriesServoSiemensSynchronousTorque
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

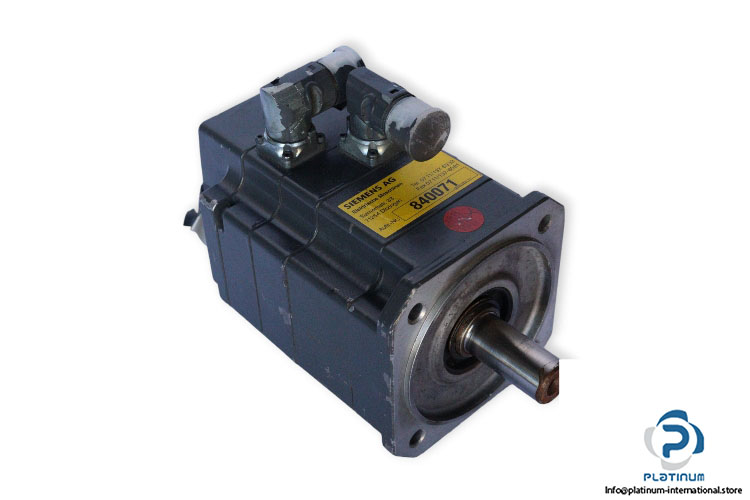

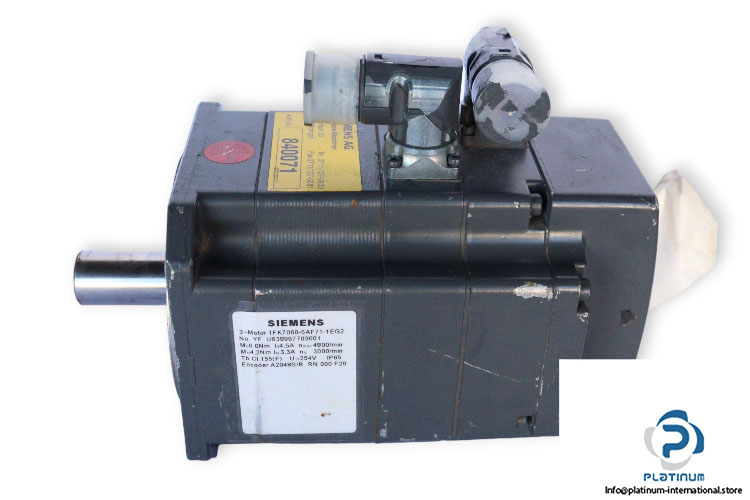

SIEMENS 1FK7060-5AF71-1EG2 SYNCHRONOUS SERVO MOTOR
The Siemens 1FK7060-5AF71-1EG2 is a compact and high-performance synchronous servo motor engineered for dynamic motion control in industrial automation. Featuring natural cooling, high precision, and robust protection, this motor ensures reliability in demanding servo drive applications.

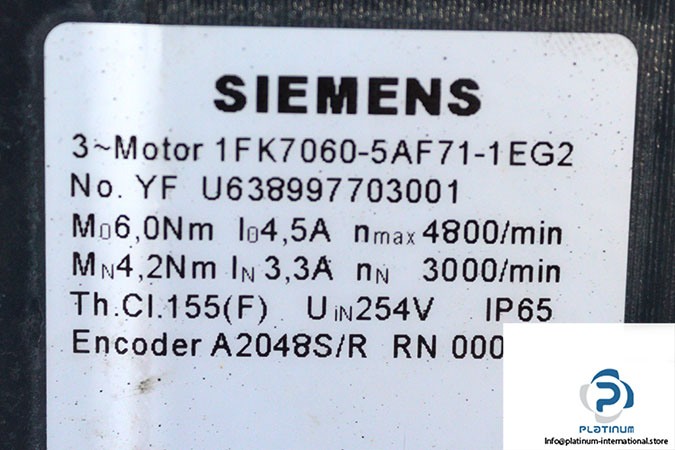

Manufacturer: SIEMENS
Type: Synchronous Servo Motor
Model: 1FK7060-5AF71-1EG2
NO.YF: U638997703001
| Motor Type | Compact |
| Cooling | Natural cooling |
| Shaft Height | 63 |
| Connector Size | 1 |
| Number of Poles | 8 |
| Rated Torque | 4.2 Nm |
| Rated Voltage | 254 V |
| Rated Current | 3.3 A |
| Stall Current | 4.5 A |
| Rated Speed | 3000 min-1 |
| Max. Speed | 4800 min-1 |
| Stall Torque | 6 Nm |
| Moment of Inertia | 7.950 kgcm² |
| Thermal Class | F |
| Protection Class | IP65, drive end flange IP67 |
| Encoder Type | A2048S/R (Abs. encoder EnDat 2048 pulses/rev) |
| Mechanical Limiting Speed | 12000 rpm |
| Operating Voltage | 5 V ± 5 % |
| Power Consumption | Max. 300 mA |
