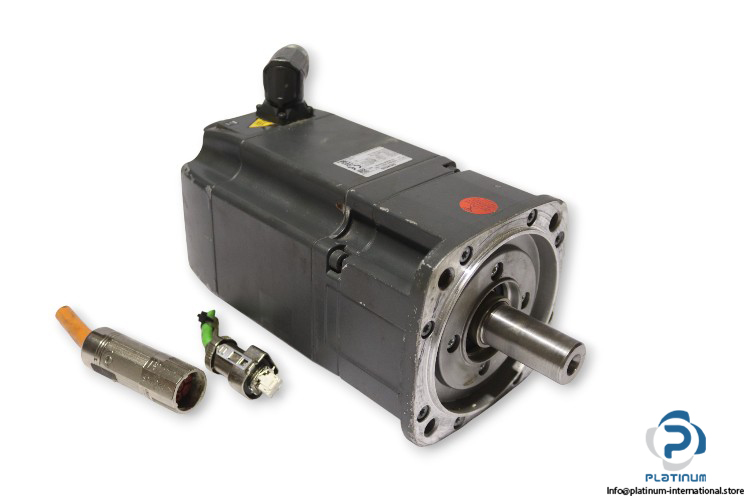

Siemens 1FK7063-2AF71-1RB0 Synchronous Motor
1 199,99$
3-Phase Synchronous Servomotor
Siemens SIMOTICS 1FK7 063-2AF71-1RB0 servomotor with 11 Nm rated torque, 3000 rpm nominal speed, IP64 protection, 24 V DC brake, and high-resolution absolute encoder for precision motion control.Siemens 1FK7 063-2AF71-1RB0 SIMOTICS Servomotor
The Siemens 1FK7 063-2AF71-1RB0 synchronous servomotor from the SIMOTICS family is engineered for high-performance motion control applications requiring precision, reliability, and dynamic response.
Manufacturer: Siemens
Type: 3-Phase Synchronous Servomotor
MNR: 1FK7 063-2AF71-1RB0
Brand Name: SIMOTICS
Drive Family: SINAMICS S120
Series: 1FK7
No. YF.: N2630621004 001
Marking Code: RN 007
Encoder Model: AM20DQI
This Siemens servomotor combines high torque density with exceptional precision, making it ideal for CNC machines, robotics, packaging lines, and automation systems requiring dynamic and reliable motion control. Its integrated absolute encoder ensures precise feedback for accurate positioning, while the IP64 protection allows operation in demanding industrial environments. With its compact design and efficient heat dissipation, it offers long service life and reduced maintenance needs, delivering superior performance in continuous duty operations.
| Frame Size | 63 |
| Rated Torque (Mš) | 11 Nm |
| Nominal Torque (Mš„¢) | 7.3 Nm |
| Rated Current (Iš) | 8 A |
| Nominal Current (Iš„¢) | 5.6 A |
| Rated Voltage (Uš„¢) | 272 V 3-Phase |
| Nominal Speed (nš„¢) | 3000 rpm |
| Maximum Speed (nšËœššœ) | 7200 rpm |
| Protection Class | IP64 |
| Brake Voltage | 24 V DC |
| Brake Power | 18 W |
| Brake Torque | 13 Nm |
| Compliance | EN 60034, CE, EAC |
| Power Class | IC410 (Surface cooled, natural convection) |
| Encoder | Absolute encoder 20 bits (resolution 1048576) + 12 bits multi-turn (4096 revolutions), IP56 protection |
| Temperature Sensor | Pt1000 integrated |
| Thermal Class | 155 (F) |

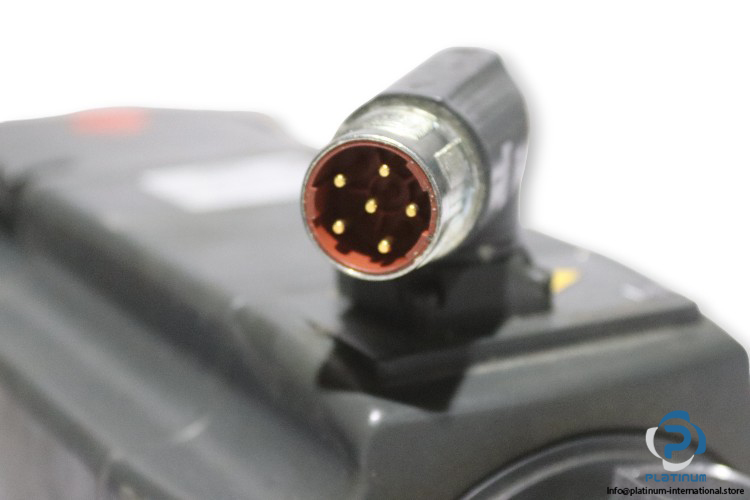

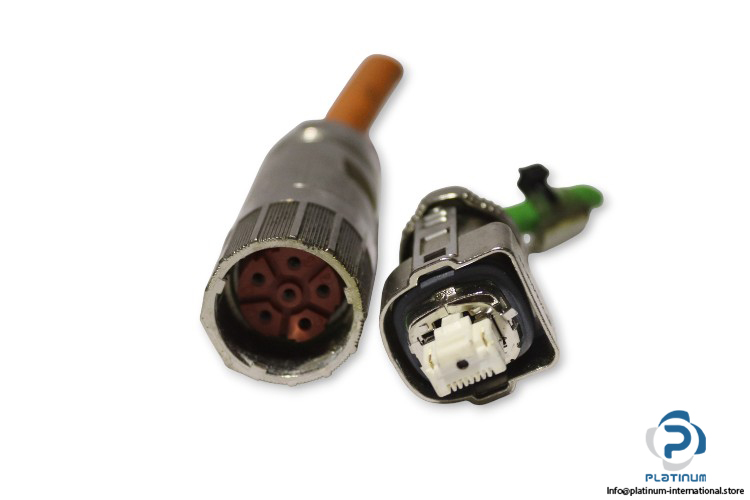

| Connector Type | Circular multi-pin connector for feedback encoder and power |
