Siemens 1FT5066-0AF01-0-Z Permanent Magnet Motor

SIEMENS Permanent Magnet Motor with HEIDENHAIN Incremental Encoder

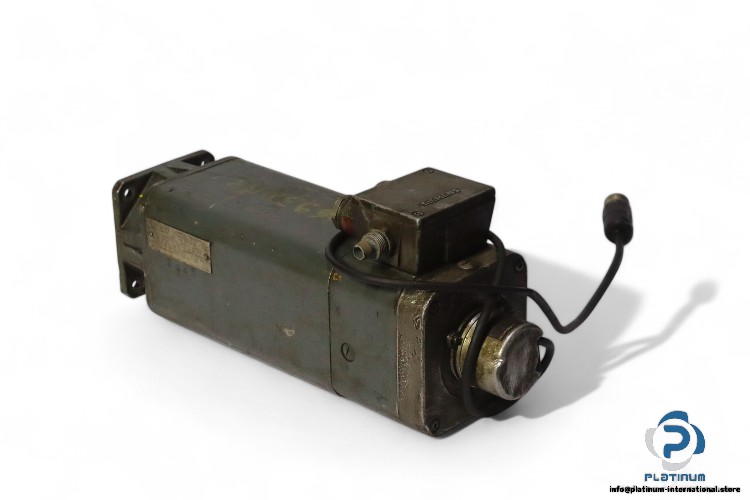

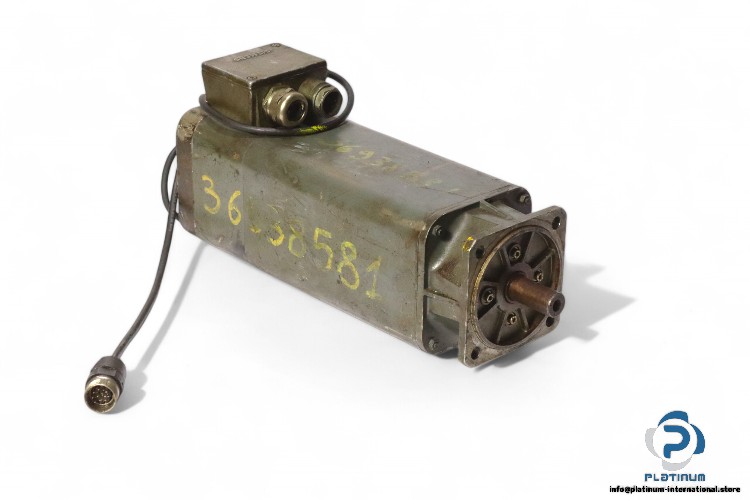

The SIEMENS 1FT5066-0AF01-0-Z Permanent Magnet Motor is designed for high-efficiency performance in industrial applications, offering reliable torque and speed for demanding environments. The motor is paired with the HEIDENHAIN ROD 426 2500 03S12-03 incremental encoder for precise position feedback and enhanced control.

Manufacturer: SIEMENS

Type: Permanent Magnet Motor

Model: 1FT5066-0AF01-0-Z

Technical Specifications

• Rated Voltage: 150 V
• Stall Current: 16.3 / 20 A
• Rated Speed: 3000 RPM
• Rated Torque: 5.6 Nm
• Stall Torque: 6.5 / 8.0 Nm
• Duty: S1
• Thermal Class: F
• Protection Class: IP64

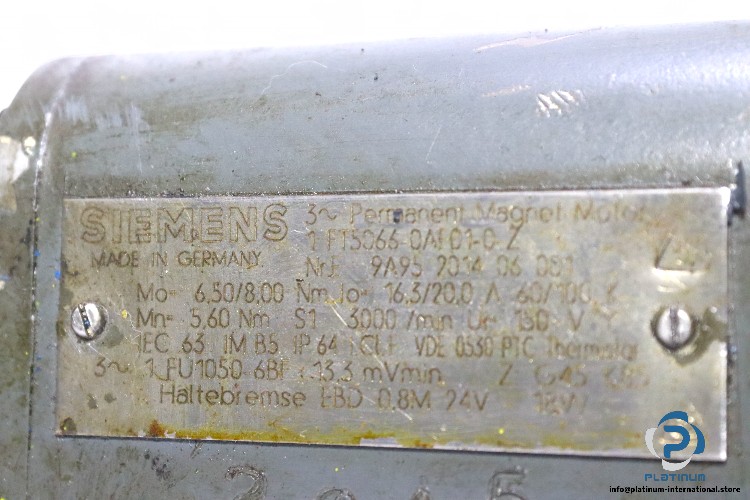

• Attached with: EBD 0.8M Brake
• Brake Voltage: 24 V
• Attached with: HEIDENHAIN ROD 426 2500 03S12-03 Incremental Encoder

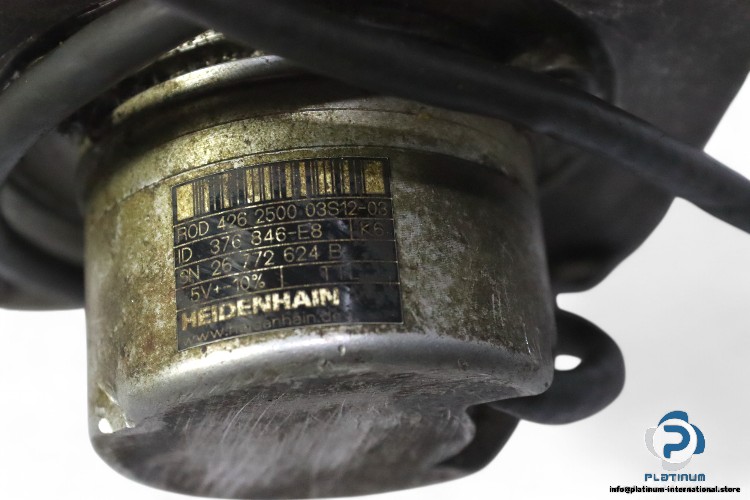

HEIDENHAIN Incremental Encoder:

• Manufacturer: HEIDENHAIN
• Type: Incremental Encoder
• Model: ROD 426 2500 03S12-03
• ID No.: 376 846-E8
• Flange Design: Synchro Flange
• Shaft Design: Solid Shaft
• Shaft Diameter: 6 mm
• Speed Max: 16000 RPM
• Resolution: 2500 Pulse Per Revolution (PPR)
• Voltage Supply: 5 V DC
