Siemens 1FT5076-1AC71-1AB0 Brushless Servo Motor
Utilisé
Disponible sur demande
2 490,00$
BRUSHLESS SERVO MOTOR
Siemens 1FT5076-1AC71-1AB0 delivers 18.5 Nm rated torque and up to 3200 rpm. Designed for precision motion control with IP64 protection, built-in brake, and tachogenerator.1FT5076-1AC71-1AB0370V60034AutomationB5BrakeBrushlessControlDriveENHighIndustrialIP64MotionmotorMountingServoSiemensTorqueWith
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
SIEMENS 1FT5076-1AC71-1AB0 BRUSHLESS SERVO MOTOR
This Siemens brushless servo motor is engineered for high-performance industrial applications requiring precision control, high torque, and reliable feedback. With a robust frame and integrated brake system, it™s suitable for demanding automation and motion control systems.

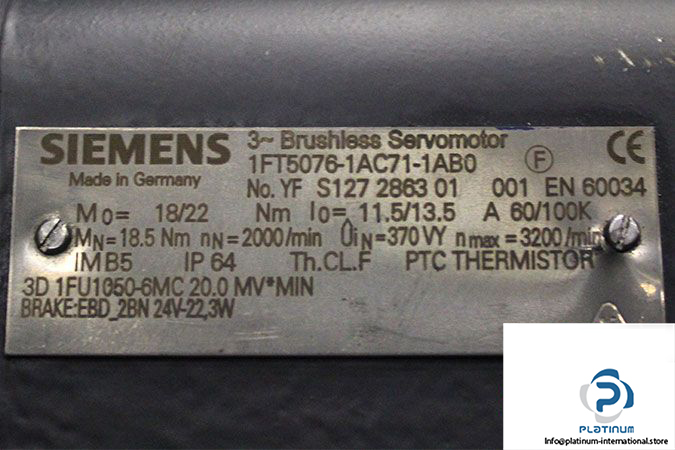

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT5076-1AC71-1AB0
Part No.: S127 2863 01 001
Standard: EN 60034
Series: 5
Brake System
Tachogenerator
| Frame Size | 07 |
| Length | 6 |
| Rated Voltage | 370 V |
| Rated Torque | 18.5 Nm |
| Static Torque | 18/22 Nm |
| Rated Speed | 2000 rpm |
| Max. Speed | 3200 rpm |
| Stall Current | 11.5/13.5 A |
| Mounting Position [IM] | B5 |
| Protection Class [IP] | 64 |
| Thermal Class | F |
| Brake Voltage | 24 VDC |
| Brake Power | 22.3 W |
| Brake Model | EBD-2BN |
| Constant Voltage | 13.3 mV/min |
