Siemens 1FT6062-6AF71-3EG1 Synchronous Servo Motor
Utilisé
En stock1 unitéPrêt à être expédié
900,00$
SYNCHRONOUS SERVO MOTOR
Siemens 1FT6062-6AF71-3EG1 is a compact synchronous servo motor offering 4.2 Nm rated torque, 9100 rpm maximum speed, and natural cooling. Ideal for precision automation systems with IP65 protection and high performance.1FT6062AutomationCompactControlDriveHighIndustrialIP65MotionmotorPrecisionServoSiemensSpeedSynchronous
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
SIEMENS 1FT6062-6AF71-3EG1 SYNCHRONOUS SERVO MOTOR
The Siemens 1FT6062-6AF71-3EG1 synchronous servo motor offers high precision and robust design for demanding industrial automation environments. With a rated torque of 4.2 Nm and speed up to 9100 rpm, it ensures reliable performance and efficiency. Designed with IP65 protection and natural cooling, this motor fits perfectly in compact and high-speed applications.

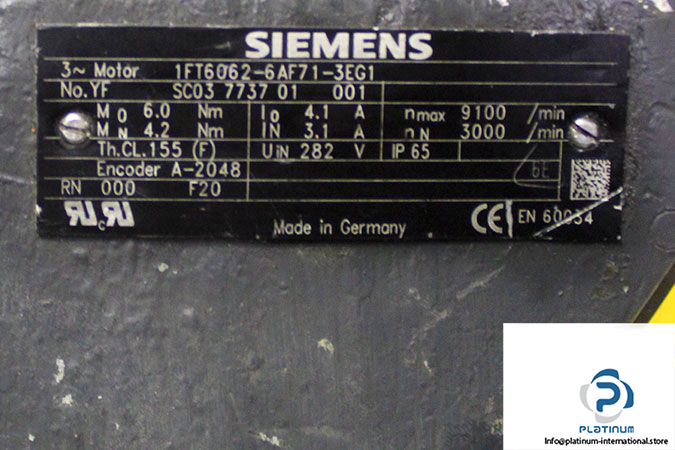

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FT6062-6AF71-3EG1
NO. YF: SC03 7737 01 001
Frame Size: 10
| Rated Voltage | 282 V |
| Stall Current | 4.1 A |
| Rated Current | 3.1 A |
| Rated Speed | 3000 min-1 |
| Max. Speed | 9100 min-1 |
| Rated Torque | 4.2 Nm |
| Stall Torque | 6.0 Nm |
| Cooling Method | Natural Cooling |
| Connector Outlet Direction | Transverse, Right |
| Shaft End | with Key |
| Number of Pole | 5 |
| Encoder | A-2048 |
| Protection Class | IP65 |
| Thermal Class | F |
