Siemens 1FT6084-8AH71-3AL0-Z Servomotor
Utilisé
En stock1 unitéPrêt à être expédié
SERVO MOTOR
Siemens 1FT6084-8AH71-3AL0-Z is a 288 V servo motor delivering 10.5 Nm rated torque and 4500 RPM speed, with encoder and brake integration, ideal for advanced motion control systems.1FT6084-8AH71-3AL0-Z288V60034ControlDriveENEncoderHighIC2048IndustrialIP64MotionmotorServoSiemensTorque
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

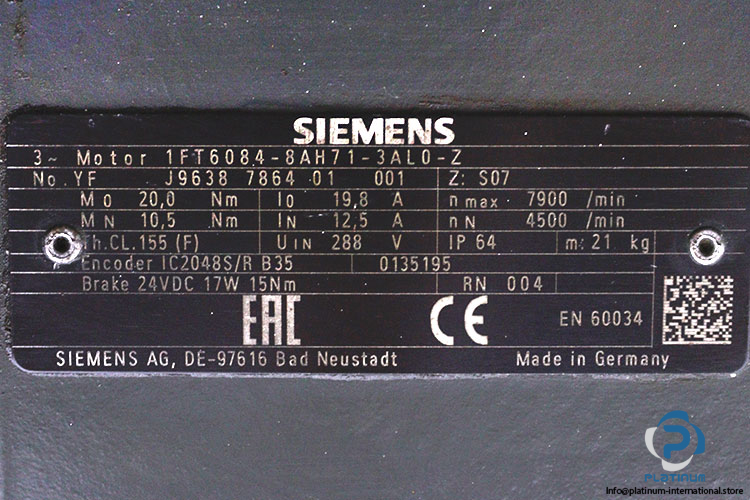

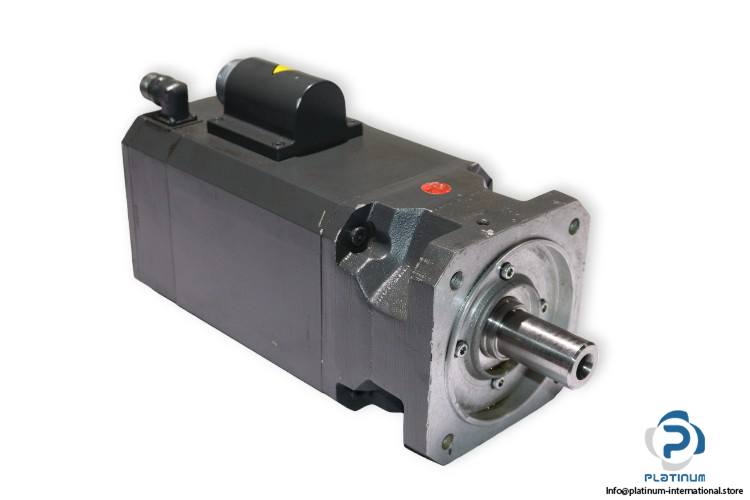

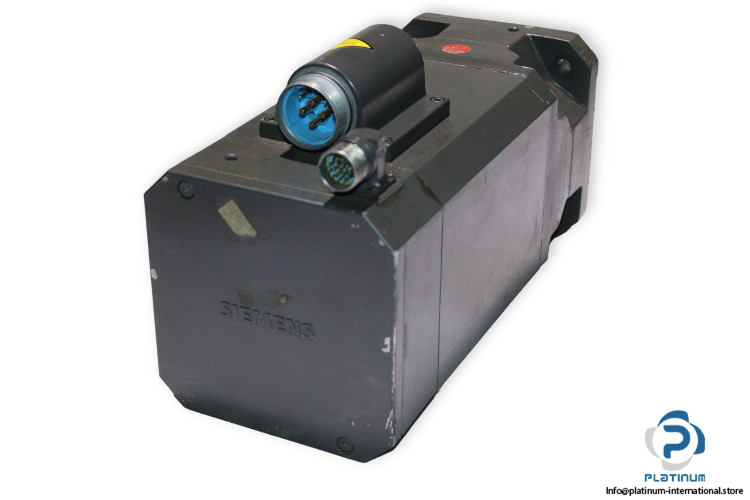

SIEMENS 1FT6084-8AH71-3AL0-Z SERVO MOTOR
Siemens 1FT6084-8AH71-3AL0-Z is a high-performance servo motor engineered for precision motion control applications. Built to comply with EN 60034 standards, it offers high torque output and robust protection for demanding industrial use.
Manufacturer: Siemens
Type: Servo Motor
Model: 1FT6084-8AH71-3AL0-Z
No .YF: J9638 7864 01 001
Ref no: S07
| Rated Current [A] | 12.5 |
| Stall Current [A] | 19.8 |
| Rated Torque [Nm] | 10.5 |
| Stall Torque [Nm] | 20.0 |
| Rated Voltage [V] | 288 |
| Rated Speed [min»¹] | 4500 |
| Max. Speed [min»¹] | 7900 |
| Protection Class [IP] | 64 |
| Thermal Class | F |
| Encoder Model | IC2048S/R B35 |
| Encoder Part No. | 0135195 |
| Brake Voltage [Vdc] | 24 |
| Brake Power [W] | 17 |
| Brake Torque [Nm] | 15 |
| Standard | EN 60034 |
