Siemens 1FT7068-5AF71-1CG1-Z Synchronous Motor
Nouveau
En stock1 unitéPrêt à être expédié
3 575,00$
SYNCHRONOUS MOTOR
Siemens 1FT7068-5AF71-1CG1-Z is a high-efficiency synchronous motor with 10.9 Nm rated torque, 342 V voltage, and 3000 rpm speed, built for precision automation in industrial settings.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
SIEMENS 1FT7068-5AF71-1CG1-Z SYNCHRONOUS MOTOR
Engineered for high-performance automation, the Siemens 1FT7068-5AF71-1CG1-Z synchronous motor delivers consistent torque, superior speed handling, and robust construction. It is ideally suited for dynamic industrial environments where precision and durability are essential.

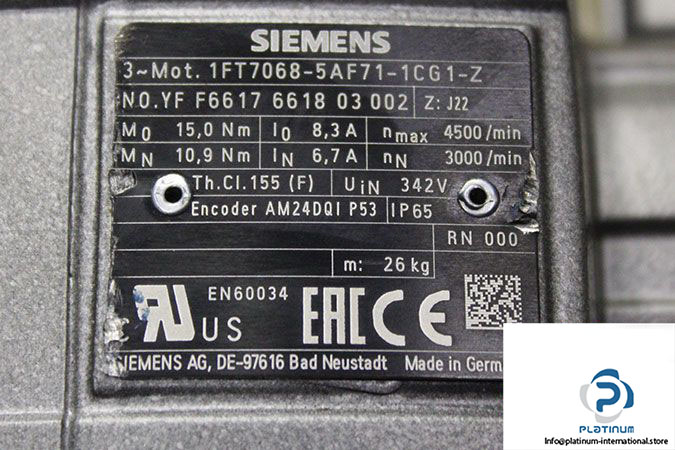

Manufacturer: Siemens
Type: Synchronous Motors
Model: 1FT7068-5AF71-1CG1-Z
No. YF: F6617 6618 03 002
Ref No.: J22
| Series | 7 |
| Frame Size | 06 |
| Length | 8 |
| Rated Voltage | 342 V |
| Rated Torque | 10.9 Nm |
| Static Torque | 15.0 Nm |
| Rated Current | 6.7 A |
| Stall Current | 8.3 A |
| Rated Speed | 3000 rpm |
| Max. Speed | 4500 rpm |
| Encoder | AM24DQI P53 |
| Protection Class | IP65 |
| Thermal Class | F |
