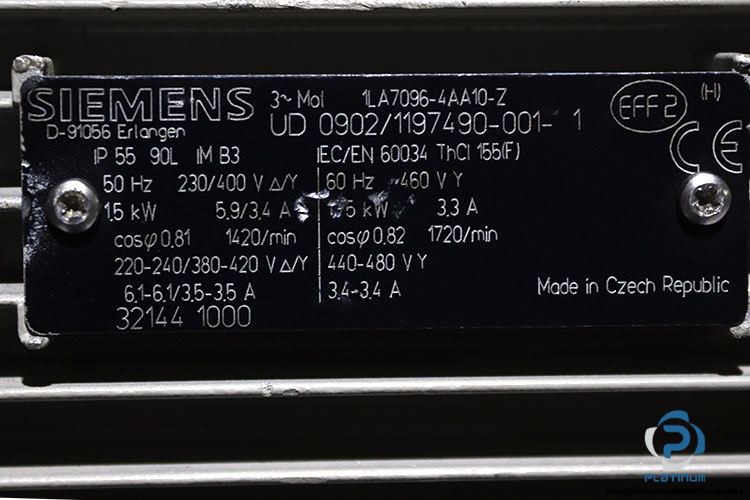

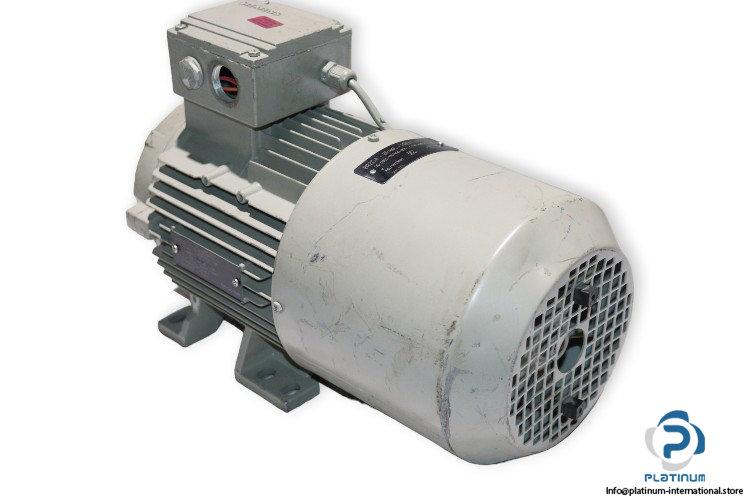

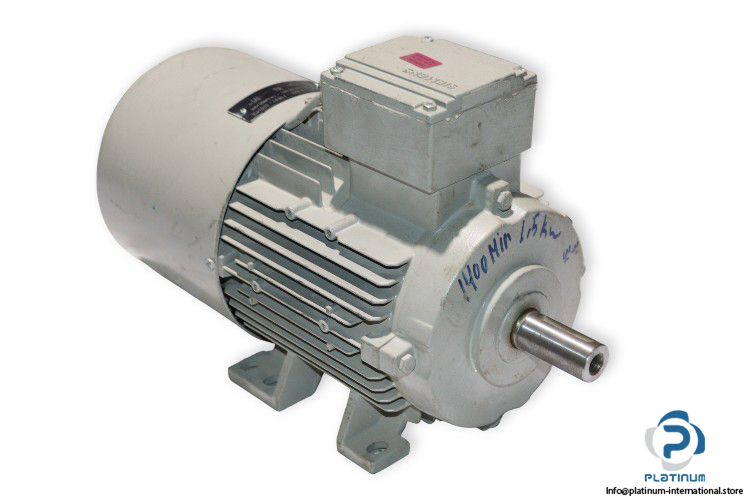

Siemens 1LA7096-4AA10-Z Brake Motor
Manufacturer: Siemens
Type: Brake Motor
Model: 1LA7096-4AA10-Z
Rated Power [kW]: 1.5/1.75
Rated Voltage [V]: 230-400/460
Rated Current [A]: 5.9-3.4/3.3
Rated Speed [min-1]: 1420/1720
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Thermal Class: F
Power Factor [cos]: 0.81/0.82

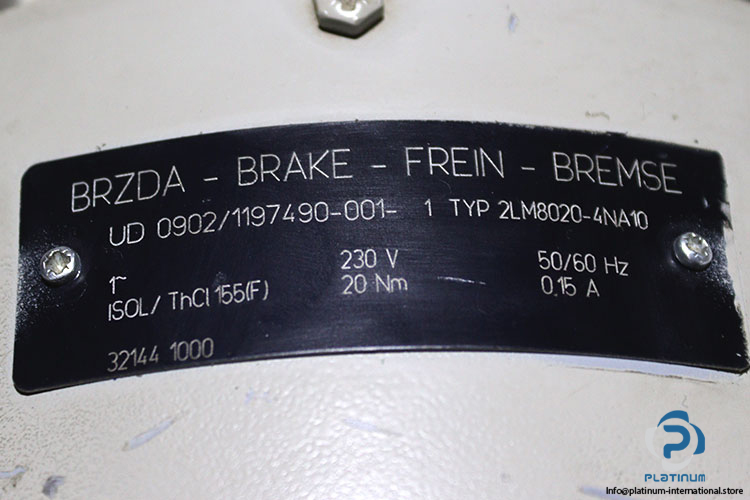

Brake: 2LM8020-4NA10
Rated Voltage [V]: 230 AC
Rated Current [A]: 0.15
Rated Torque [Nm]: 20
Frequency [Hz]: 50/60
Thermal Class: F
