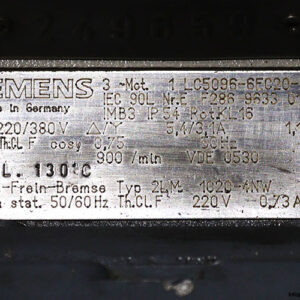

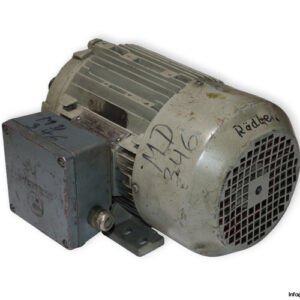

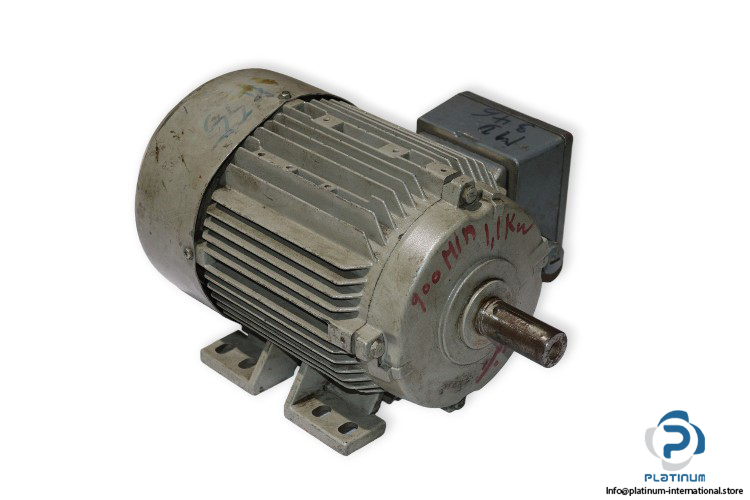

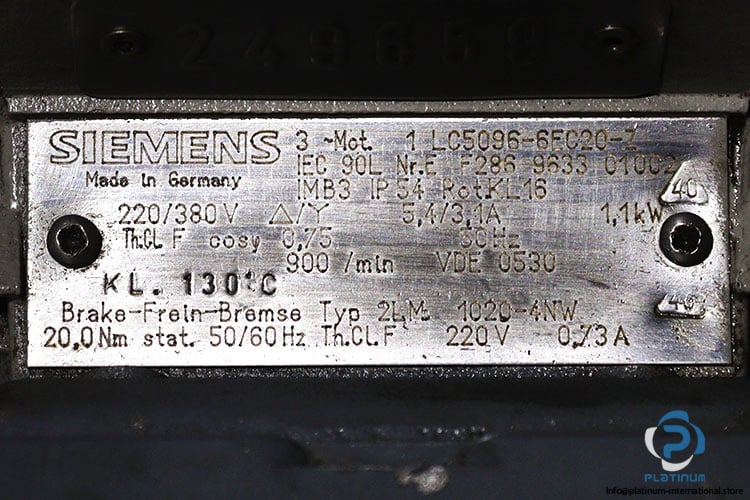

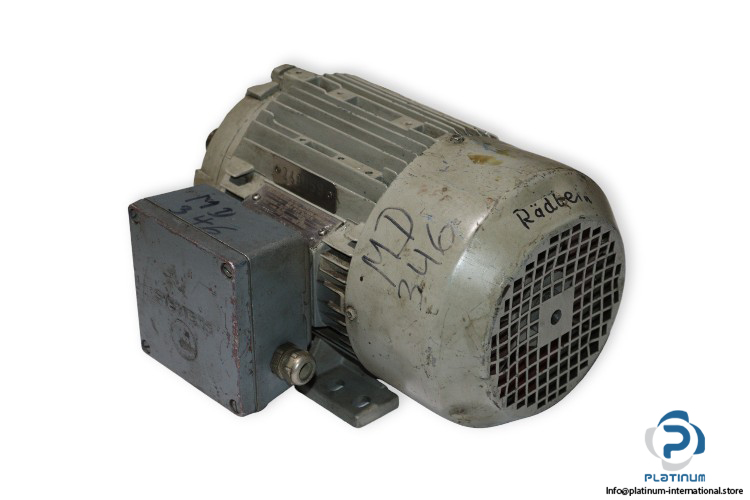

Siemens 1LC5096-6EC20-Z Brake Motor
Manufacturer: Siemens
Type: Brake Motor
Model: 1LC5096-6EC20-Z
Rated Power [kW]: 1.1
Rated Voltage [V]: 220/380
Rated Current [A]: 5.4/3.1
Rated Speed [min-1]: 900
Frequency [Hz]: 50
Protection Class [IP]: 54
Power Factor [cos]: 0.75
Mounting Position [IM]: B3
Duty: S1
Thermal Class: F
Brake: 2LM 1020-4NW
Brake Voltage [V]: 220
Brake Current [A]: 0.73
Brake Toque [Nm]: 20
Frequency [Hz]: 50/60
