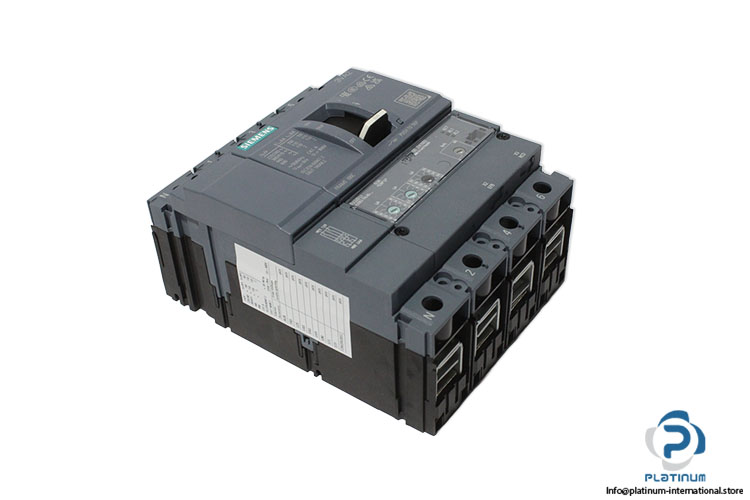

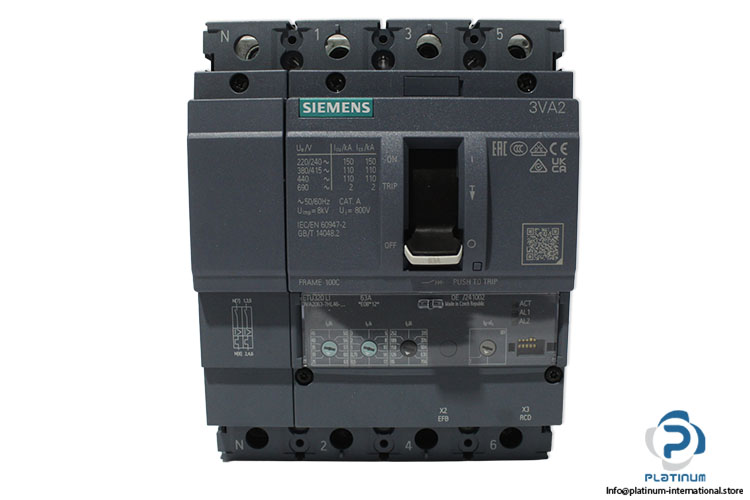

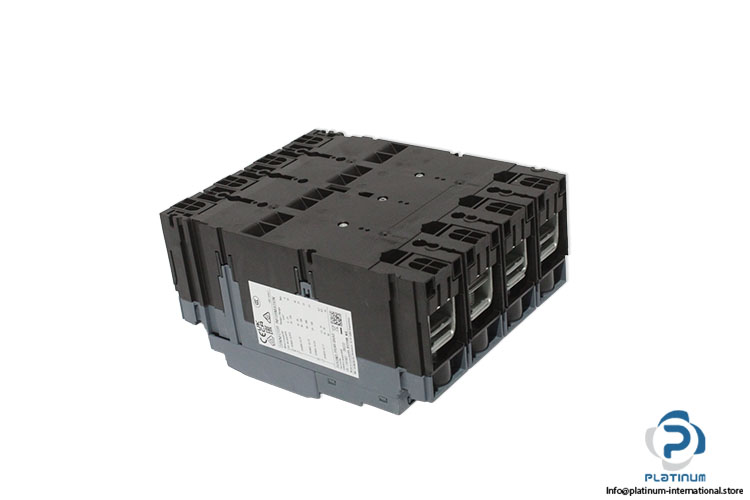

Siemens 3AV2063-7HL46-0AA0 Circuit Breaker
Nouveau
En stock1 unitéPrêt à être expédié
Circuit Breaker The SIEMENS SENTRON 3AV2063-7HL46-0AA0 is a 63 A four-pole circuit breaker featuring an ETU320 electronic trip unit, 690 V AC operating voltage, 110 kA breaking capacity, front terminals, and IP40 protection. It is designed for reliable overload and short-circuit protection in industrial power distribution systems.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Brand Name | SENTRON |
| FRAME | 100C |
| Design Of the Overcurrent Release | ETU320 |
| Insulation Voltage | 800V |
| Operating Voltage | 690V AC |
| Power Loss | Max.3W |
| Operational Current | 63A |
| Number Of Poles | 4 |
| Frequency | 50/60 Hz |
| short-circuit current breaking capacity (Icu) | (at 415V & 440V: 110 kA) |
| Switching Capacity Class of the Circuit Breaker | C |
| Arrangement Of Electrical Connectors | Front Terminal |
| Type Of Electrical Connection | Double-Sided Box Terminal |
| Ambient Temperature | -25 to 70 °C |
| Protection Degree | IP40 |
| Height | 181 mm |
| Width | 140 mm |
| Depth | 86 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093369 |
| Weight | 2,85 |
