Siemens 3LD2203-1TL51 Switch Disconnector
Nouveau
En stock1 unitéPrêt à être expédié

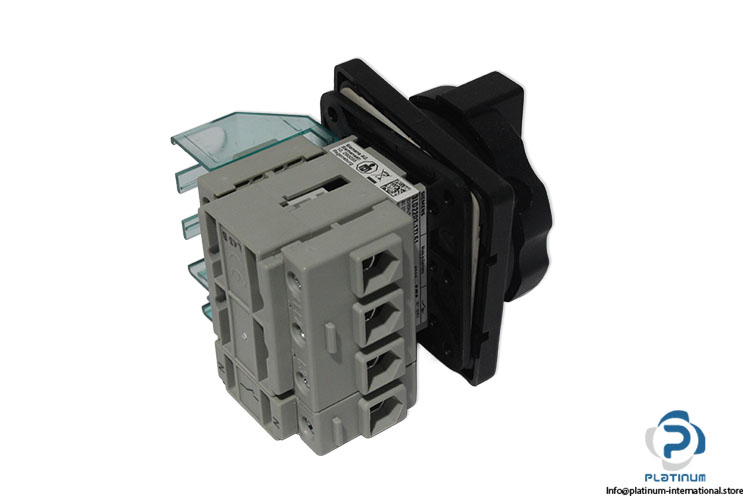

Switch Disconnector The Siemens Sentron 3LD2203-1TL51 is a front-mounted switch disconnector designed for reliable isolation and switching of industrial electrical circuits. Rated for 400 V and 32 A, with a four-pole configuration, IP65 protection, and CE, CCC, and EAC certifications, it is ideal for industrial control panels, machinery, and power distribution applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| MNR | 3LD2203-1TL51 |
| Part No. | 4219 |
| Product Brand Name | Sentron |
| Product Designation | Switch disconnector |
| Type Of Switch | front mounted |
| Voltage | 400V |
| Current | 32A |
| Number Of Poles | 4 |
| Operating power | (AC 3: 9,5kW), (AC 23A: 11,5kW) |
| Frequency | 50- 60 Hz |
| Wire Gauge | AWG 14-8 |
| Terminal Torque | 2,5Nm |
| Protection degree | IP65 |
| Height | 83 mm |
| Width | 67 mm |
| Depth | 92.5 mm |
| Ambient Temperature | -25 to 55 °C |
| Certification | EAC, CCC, CE |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093190 |
| Weight | 0,23 |
