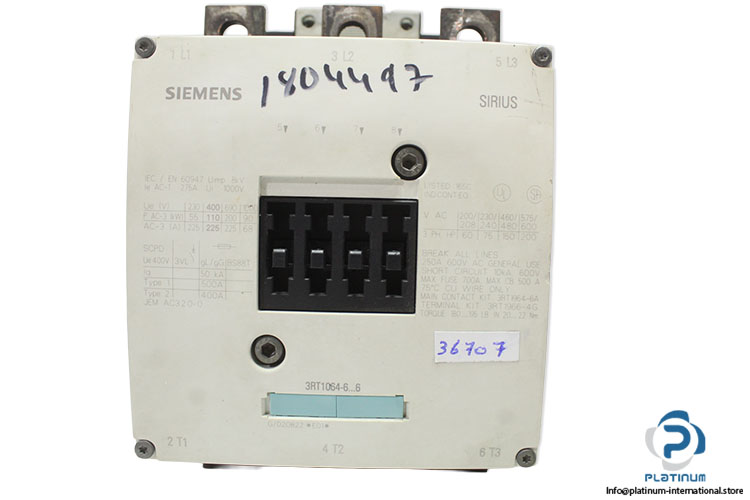

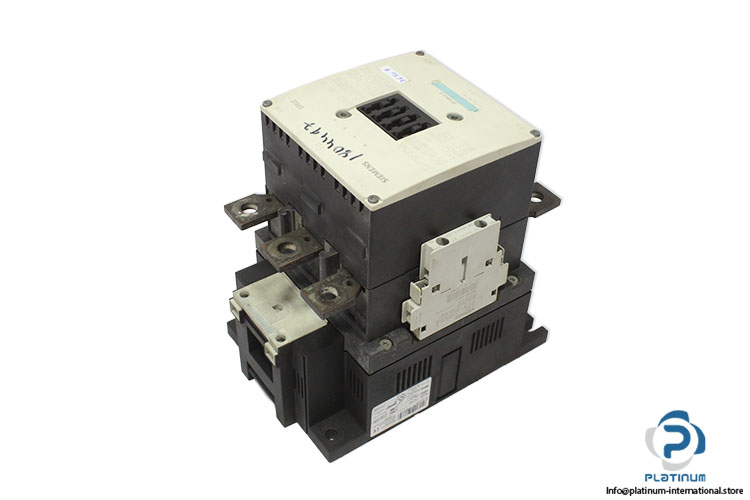

Siemens 3RT1064-6AP36 Power Contactor
Nouveau
En stock1 unitéPrêt à être expédié
SIEMENS 3RT1064-6AP36 SIRIUS Power Contactor Industrial SIRIUS power contactor with 3 main poles, 110 kW operating power at 400 V, auxiliary contact block, DIN rail mounting, and robust switching performance for demanding motor control and power distribution applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| SN | 4 011209 507739 |
| Product Brand Name | SIRIUS |
| Product Designation | Power Contactor |
| Product Type Designation | 3RT1 |
| Size Of Contactor | S10 |
| Power Loss [W] | For Rated Value Of The Current ? At AC In Hot Operating State 51 W ? At AC In Hot Operating State Per Pole 17 W ? Without Load Current Share Typical: 7.4 W |
| Insulation Voltage | Of Main Circuit With Degree Of Pollution 3 Rated Value 1 000 V/ Of Auxiliary Circuit With Degree Of Pollution 3 Rated Value 500 V |
| Surge Voltage Resistance | Of Main Circuit Rated Value 8 Kv ? Of Auxiliary Circuit Rated Value 6 Kv |
| Maximum Permissible Voltage For Protective Separation Between Coil And Main Contacts According To EN 60947-1 | 690 V |
| Installation Altitude At Height Above Sea Level Maximum | 2 000 M Ambient Temperature ? During Operation: -25 ... +60 °C |
| Number Of Poles For Main Current Circuit | 3 |
| Number Of NO Contacts For Main Contacts | 3 |
| Operating Voltage | At AC-3 Rated Value Maximum 1 000 V ? At AC-3e Rated Value Maximum 1 000 V |
| Operating Power | At AC-3 — At 230 V Rated Value 55 Kw — At 400 V Rated Value 110 Kw |
| Number Of NC Contacts For Auxiliary Contacts Instantaneous Contact | 2 Number Of NO Contacts For Auxiliary Contacts Instantaneous Contact: 2 |
| Height | 210 Mm |
| Width | 145 Mm |
| Depth | 202 Mm |

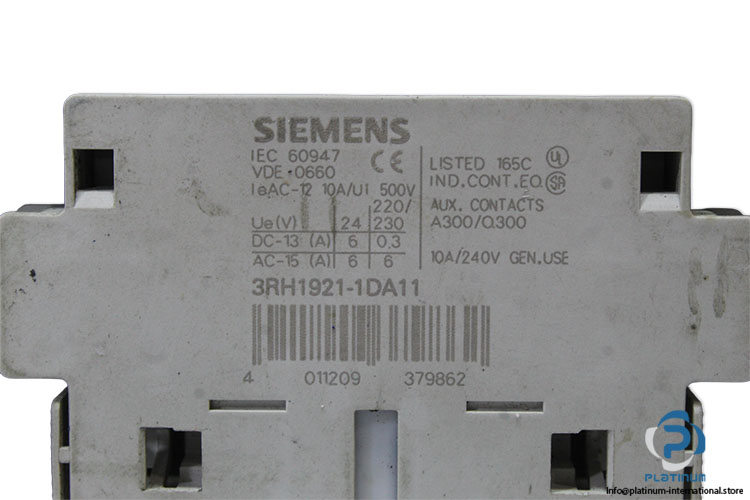

| Attached with | Siemens 3RH1921-1DA11 Auxiliary Contacts Block |
| Number of Contacts | 2 |
| Mounting Style | DIN Rail Mount |
| Terminal Type | Screw Terminal |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1099419 |
| Weight | 5,78 |
