Siemens 3RV1041-4KA10 Circuit Breaker
Utilisé
En stock1 unitéPrêt à être expédié

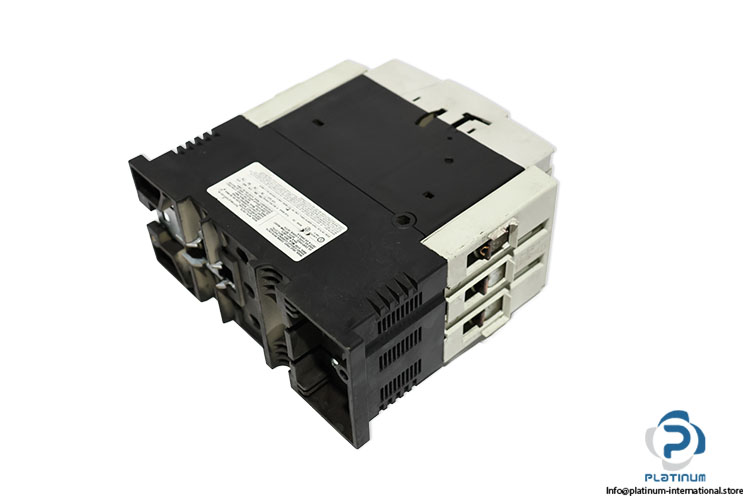

Circuit Breaker The Siemens 3RV1 041-4KA10 SIRIUS is a 3-pole circuit breaker with an adjustable 57–75 A overload range, designed for reliable overload and short-circuit protection in industrial applications.
Nouveau
En stock 250,00$
Ce produit est également disponible en neuf
Voir la nouvelle version →
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Range | SIRIUS |
| INST ORD NO | 3ZX1012-0RV04-1AA1 |
| REF NO | 02130697 |
| Frame Size | Size S3 |
| Thermal Overload Release Range | 57 A to 75 A (Adjustable) |
| Operating Voltage | 690 V |
| Power Loss | At AC in hot operating state 38 W, per pole 12.7 W |
| Surge Voltage Resistance | 6000 V |
| Fastening Method | Screw and snap-on mounting onto 35 mm DIN rail |
| Operating Temperature | -20 / +70 °C |
| Short-Circuit Protection | Thermomagnetic overcurrent and short-circuit release |
| Electrical Connection | Screw-type terminals with box terminals |
| Number of Poles (Main Circuit) | 3 |
| Degree of Protection | IP20 |
| Type of Protection Explosion protection | EX |
| Dimensions (L x W x H) | 165 x 70 x 174 mm |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100703 |
| Weight | 2,24 |
