Siemens 5SY4202-7 Miniature Circuit Breaker
Nouveau
En stock5 unitésPrêt à être expédié
Disjoncteur miniature Siemens 5SY42027 avec 2 pôles, capacité de coupure 10 kA (Icn) et protection IP20. Idéal pour protéger les circuits électriques avec une tension d'alimentation de 400 V AC.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

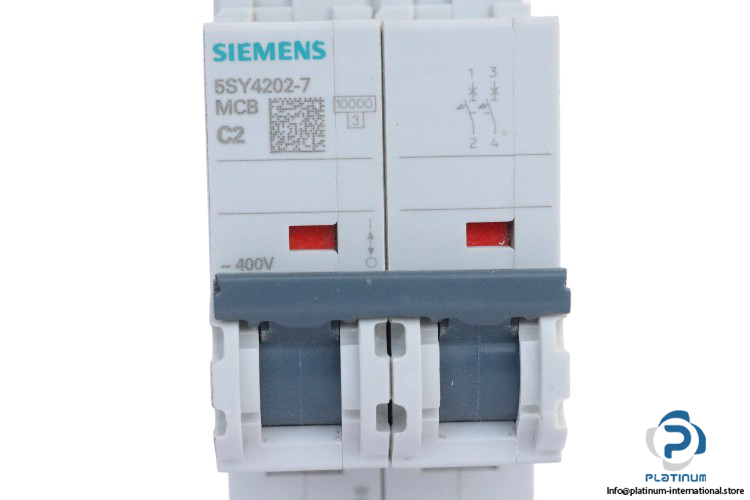

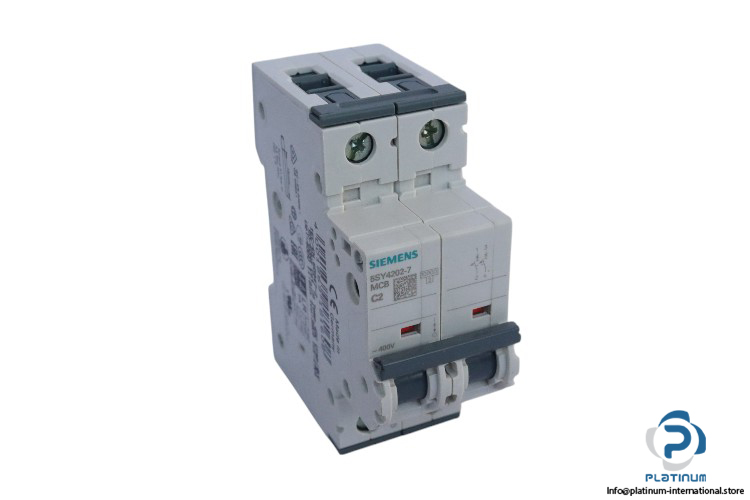

Siemens Miniature Circuit Breaker 5SY42027
Siemens Miniature Circuit Breaker 5SY42027 from the SENTRON series is designed to protect electrical circuits from overload and short circuit. This high-performance miniature circuit breaker is ideal for various industrial and residential applications, ensuring reliable operation and safety in demanding environments. Below are the key technical specifications:
- Manufacturer: Siemens
- Type: Miniature Circuit Breaker
- Model: 5SY42027
- Brand: SENTRON
Technical Data:
- Supply Voltage: 400 V AC
- Insulation Voltage: 440 V AC
- Frequency: 50/60 Hz
- Power Loss: 1.2 W
- Number of Poles: 2
- Breaking Capacity (Icn): 10 kA
- Breaking Capacity (Icc): 15 kA
- Torque: 2.5 / 3.5 Nm
- Degree of Pollution: 3
- Standard: IEC/EN 60898-1, IEC/EN 60947-2
- Operating Temperature: -40 / 70 °C
- Degree of Protection: IP20
- Dimensions: 90 X 36 X 76 mm
