Siemens 6AV6 643-0DB01-1AX1 Operator Panel
Utilisé
En stock1 unitéPrêt à être expédié

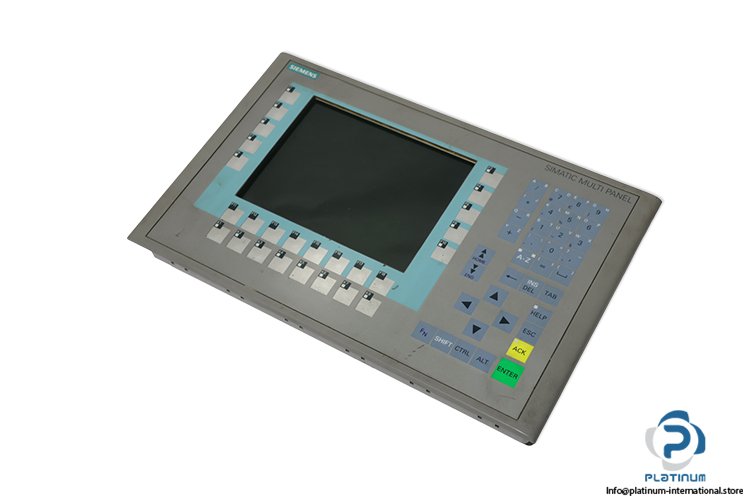

Operator Panel The SIEMENS 6AV6 643-0DB01-1AX1 is a SIMATIC MP 277 operator panel with a 7.5-inch color display, membrane keyboard, multiple interfaces, and IP65 protection for industrial automation.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Range | SIMATIC MP 277 8" Key |
| Supply Voltage | 24 V DC |
| Rated Current Consumption | 0.2 A |
| Screen Diagonal | 7.5 In |
| Resolution | 640 x 480 Pixel |
| Colors | 65,536 Color |
| Memory Type | Flash / RAM |
| Memory Available for User Data | 6 MB |
| Main Memory Capacity Max. | 128 Mbyte |

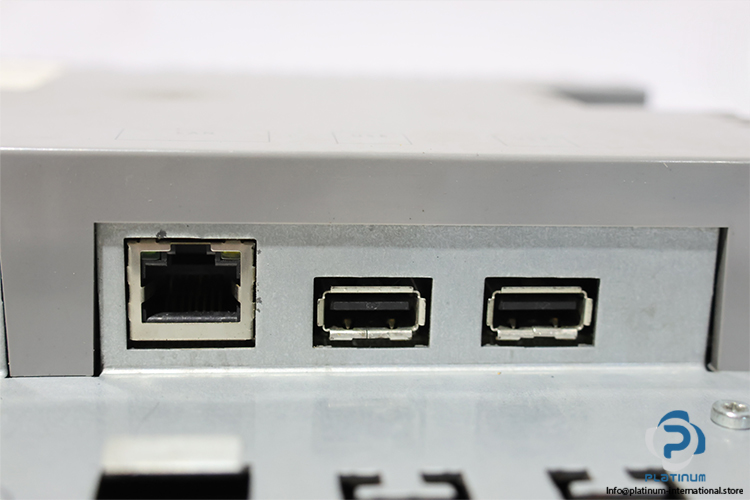

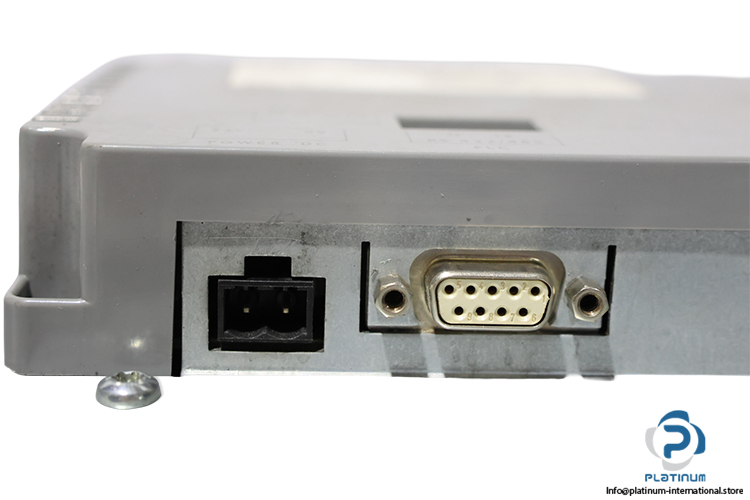

| Interfaces | RS422, RS485, Ethernet (RJ45), 2x USB, and 1x Multi Media Card (MMC) Slot |
| Processor Type | ARM |
| Control Elements | Membrane Keyboard |
| Function Keys | 26 Function Keys (18 with LEDs) |
| Software | Configurable Using WinCC Flexible 2005 SP1 (or Later Versions Like WinCC Flexible 2008 / TIA Portal with HSP) |
| Protection Class | IP65 |
| Ambient Temperature | 0 … 50 °C |
| Dimensions | 362 x 231 x 61 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104224 |
| Weight | 2,17 |
