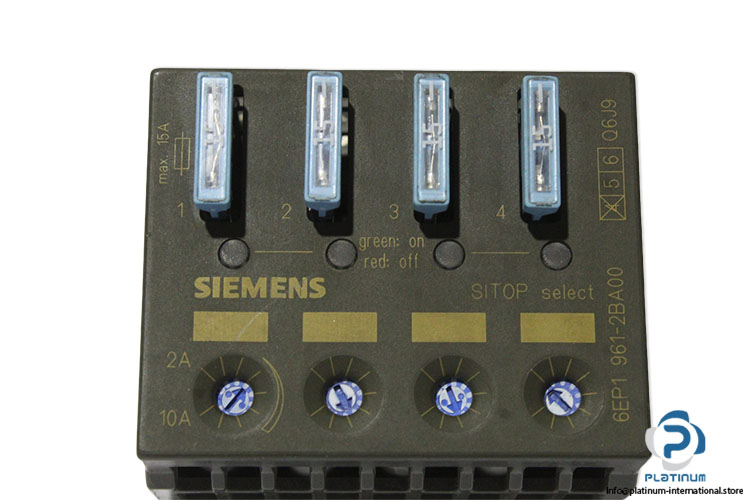

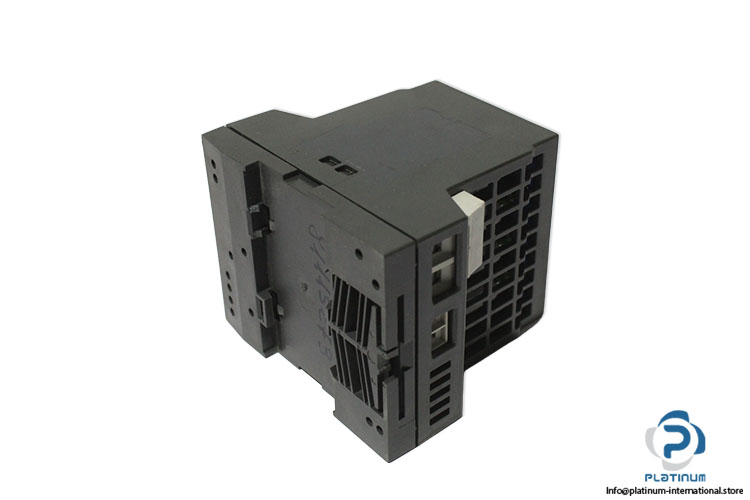

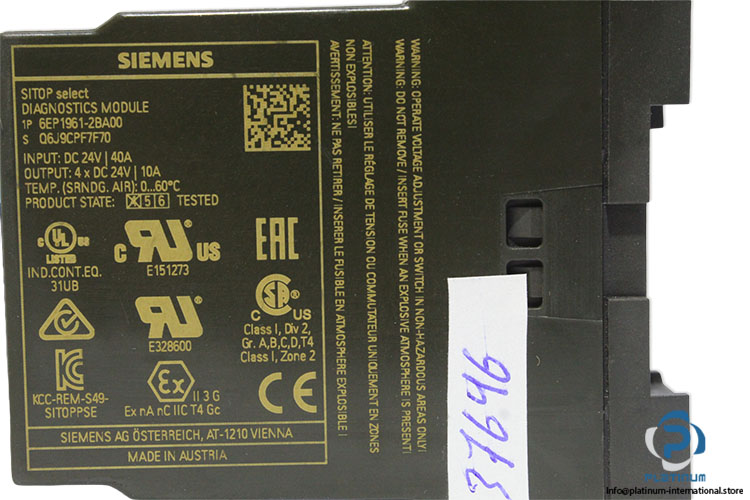

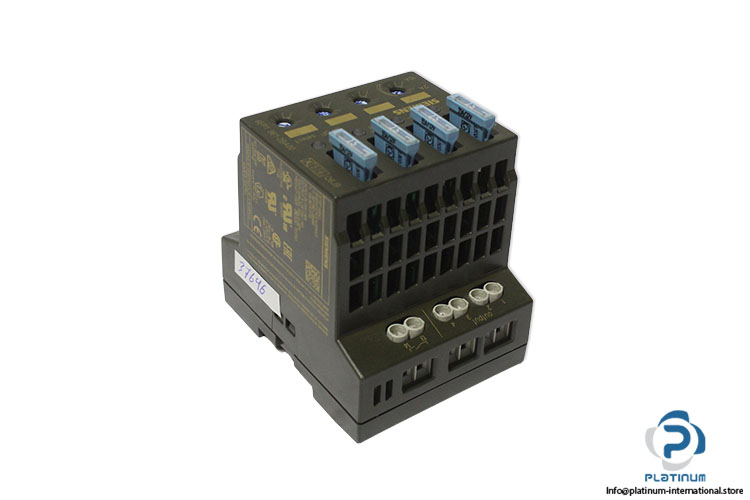

Siemens 6EP1 961-2BA00 Select Diagnostics Module 4-CHANNEL
Nouveau
En stock1 unitéPrêt à être expédié
Select Diagnostics Module The SIEMENS 6EP1 961-2BA00 is a 4-channel Select Diagnostics Module for 24 VDC industrial systems. It features four controlled DC outputs, 40 A input current, DIN rail mounting, IP20 protection, and reliable electronic diagnostics for industrial automation and power distribution applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Serial No. | Q6J9CPF7F70 |
| Supply Voltage | 24 VDC |
| Input Voltage | 22 ... 30 VDC |
| Voltage Curve at Output | Controlled DC Voltage |
| Input Current | 40 A |
| Output | 4 channels; controlled DC voltage |
| Output Current | 10 A |
| Number Of Outputs | 4 |
| Power Loss | 30W |
| Fastening Method | Snaps Onto DIN Rail EN 60715 35x7.5/15 |
| Enclosure Dimensions | 72x90x90 |
| Mounting Height | 190 mm |
| Ambient Temperature | 0 ... 60 °C |
| Protection Degree | IP20 |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093376 |
| Weight | 0,25 |
