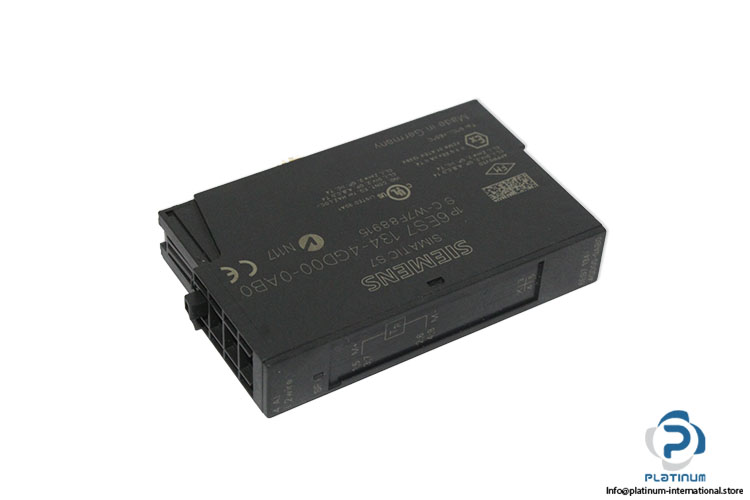

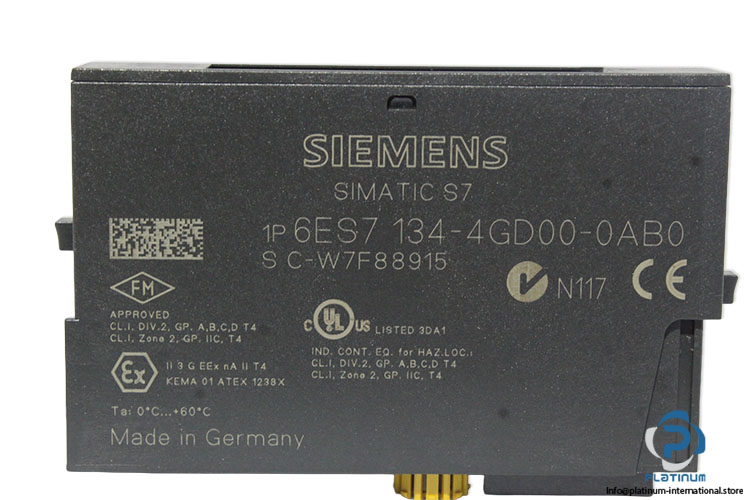

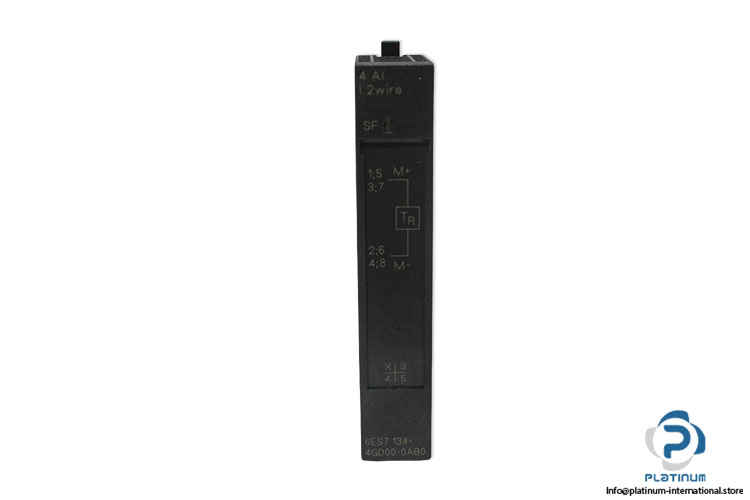

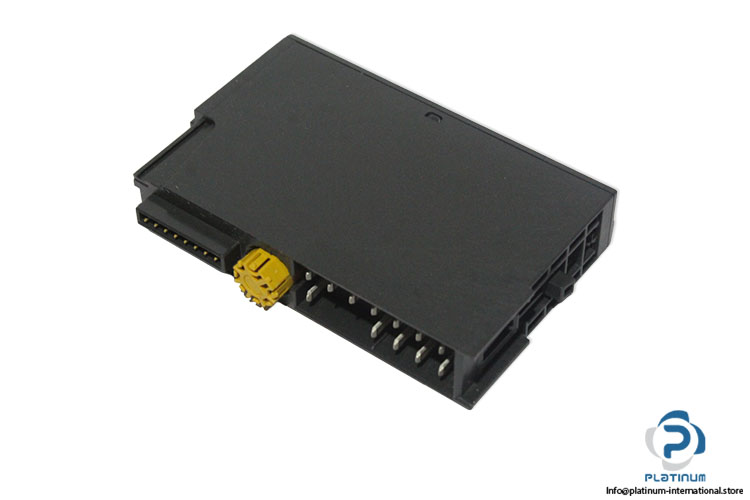

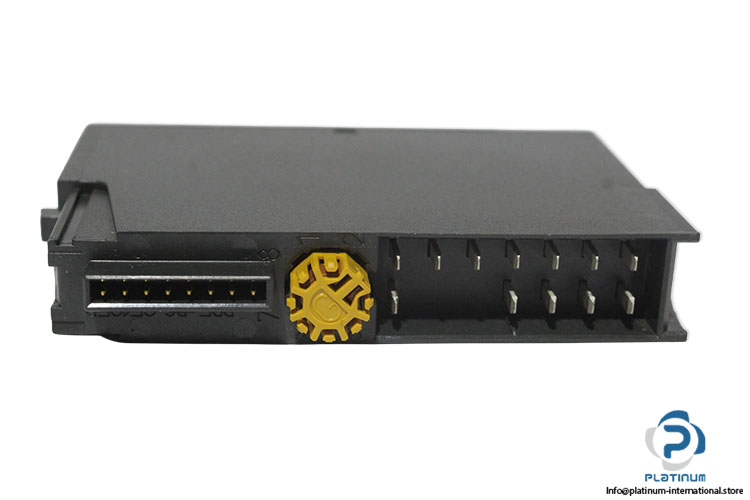

Siemens 6ES7 134-4GD00-0AB0 Electronic Module
Nouveau
En stock1 unitéPrêt à être expédié
Electronic Module Siemens SIMATIC S7 electronic module with 4 analog inputs and 24 V DC supply, designed for industrial automation, signal processing, and control applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Family | SIMATIC S7 |
| Serial | C-W7F88915 |
| E-STAND | 02 |
| Supply Voltage | 24 V DC |
| Input Current from Load Voltage L+ (Without Load) | Max. 125 mA |
| Input Current from Backplane Bus 3.3 V DC | Max. 10 mA |
| Power Loss | 0.6 W |
| Address space per module | 8 byte |
| Number Of Analog Inputs | 4 |
| Permissible Input Current for Current Input (Destruction Limit) | Max. |
| Cycle Time (All Channels) | Max. 40 ms |
| Isolation Tested With | 500 V DC |
| Cable Length Shielded | Max. 200 m |
| Ambient Temperature | 0 To 60 °C |
| Dimensions | 15 x 81 x 52 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093703 |
| Weight | 0,04 |
