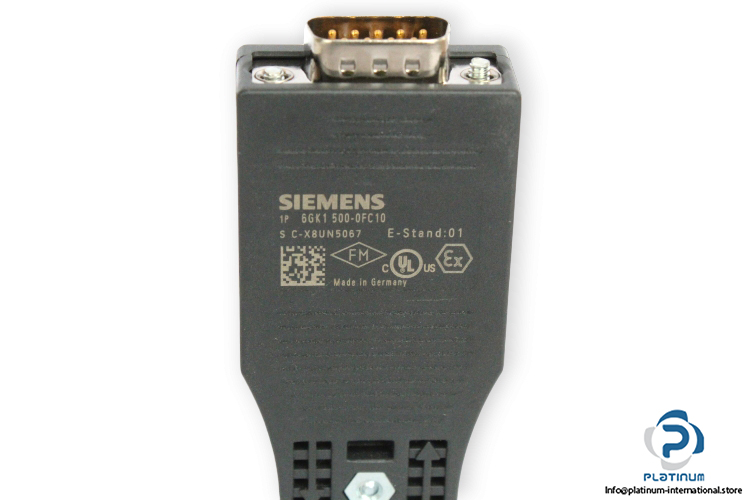

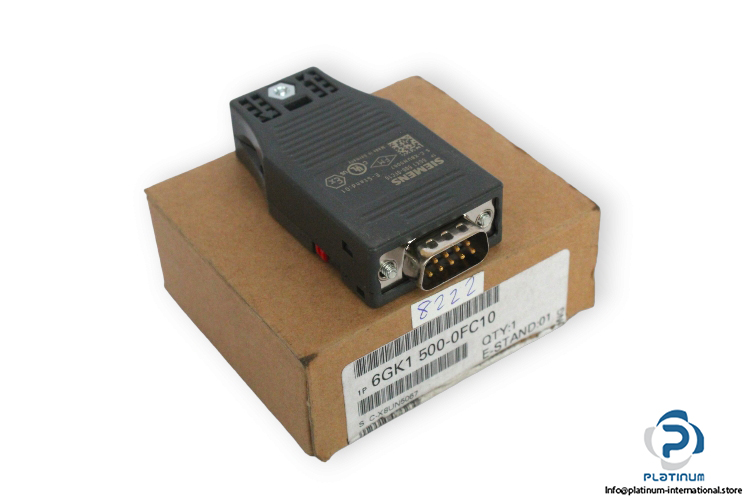

Siemens 6GK1 500-0FC10 Profibus FC BUS Connector RS 485
Nouveau
En stock3 unitésPrêt à être expédié
24,44$
Connecteur PROFIBUS Siemens Profibus FC Bus Connecteur RS-485 avec sortie câble à 180°, résistance de terminaison intégrée et débits jusqu'à 12 Mbit/s. Compact, durable et idéal pour les réseaux PROFIBUS industriels.
180AutomationBUSCableComponentConnectorDataDegreeHighIndustrialInterfaceNetworkOutletProfibusRS-485SiemensSpeed
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
SIEMENS PROFIBUS FC BUS CONNECTOR RS-485
The Siemens 6GK15000FC10 Profibus FC Bus Connector RS-485 is a robust and reliable interface solution designed for connecting PROFIBUS nodes to the PROFIBUS bus cable. Engineered for high-speed data transfer and durability, it ensures secure and efficient communication in industrial automation systems.
Manufacturer: Siemens
Type: Profibus FC Bus Connector RS-485
MNR: 6GK15000FC10
Serial No.: S C-X8UN5067
| Suitability for use | Connecting PROFIBUS nodes to the PROFIBUS bus cable |
| Transfer rate with PROFIBUS | 9.6 kbit/s / 12 Mbit/s |
| Number of electrical connections | 2 for PROFIBUS cables, 1 for network components or terminal equipment |
| Type of electrical connection | Integrated insulation displacement contacts for 2-core PB FC installation cables; Sub-D connector (9-pin) for network components or terminal equipment |
| Type of cable outlet | 180° cable outlet |
| Design of terminating resistor | Integrated resistor combination selectable with slide switch; outgoing bus isolated when resistor is connected |
| Material of enclosure | Plastic |
| Operating temperature | -40 / +70 °C |
| Degree of protection | IP20 |
| Dimensions | 16 x 62 x 34.5 mm |
