Siemens 7MF8123-1BA74-1AC6-Z Pressure Transmitter
Nouveau
En stock1 unitéPrêt à être expédié
Pressure Transmitter The Siemens SITRANS P300 7MF8123-1BA74-1AC6-Z pressure transmitter features a 4–20 mA HART output, 0.01–1 bar measuring span, IP66 protection, and AISI 316L stainless steel components for industrial pressure monitoring and process automation.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| MNR | 7MF8123-1BA74-1AC6-Z |
| Series | SITRANS P300 |

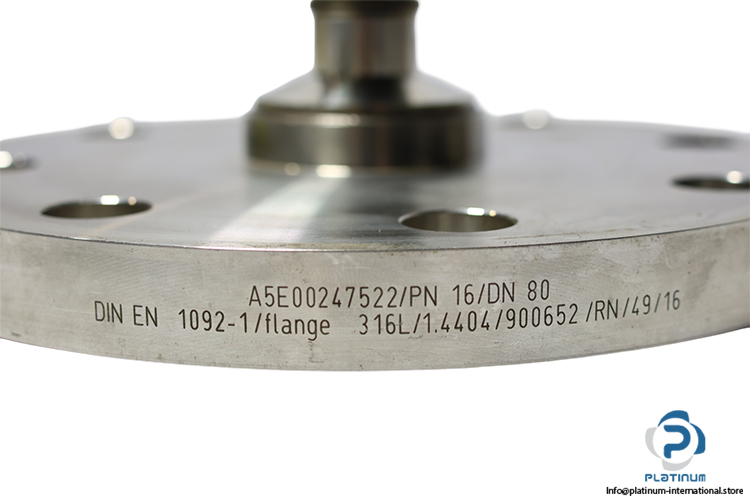

| Code | A5E00247522/PN 16/DN 80 |
| Serial Number | N1J9059250001 |
| Firmware Version | 29.03.06 |
| Hardware Version | 02.01.01 |
| Power Supply | 10.5 to 45 V DC (non IS) |
| Output Signal | 4 to 20 mA plus HART |
| Communication Protocol | HART |
| Keys | 3 for on-site programming on the device itself |
| Display | With or without integrated display (optional) • Cover with inspection window (optional) |
| Type of Protection | IP66 |
| Wetted Parts Material (A) | Stainless steel seal diaphragm |
| Electrical connection | Cable inlet using the following glands: • M20 x 1.5 (plastic) • M20 x 1.5 (metal with shield support) |
| Process Connection Material | 1.4404 (AISI 316L Stainless Steel) |
| Diaphragm Material | 1.4404 (AISI 316L Stainless Steel) |
| Filling Fluid | Silicone Oil |
| Minimum Measuring Span | 0.01 bar |
| Maximum Measuring Span | 1bar |
| Maximum Working Pressure | 4 bar or 6 bar |
| Temperature Limits | minus 20 to plus 85 degree Celsius |
| Explosion Protection | ATEX |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101703 |
| Weight | 5,58 |
