Silmer PA 80 BA 75 ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
SILMER ISO Cylinder PA 80 BA 75 is designed for compressed air applications. It features an 80 mm bore, 75 mm stroke, and 17 bar max pressure, offering reliable performance in industrial systems.173/87580AirBAbarboreCompressedconnectionCylinderDoubleEndGIndustrialISOmalemmOperationPAPistonPneumaticPressureRODShapeSilmerSquare
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

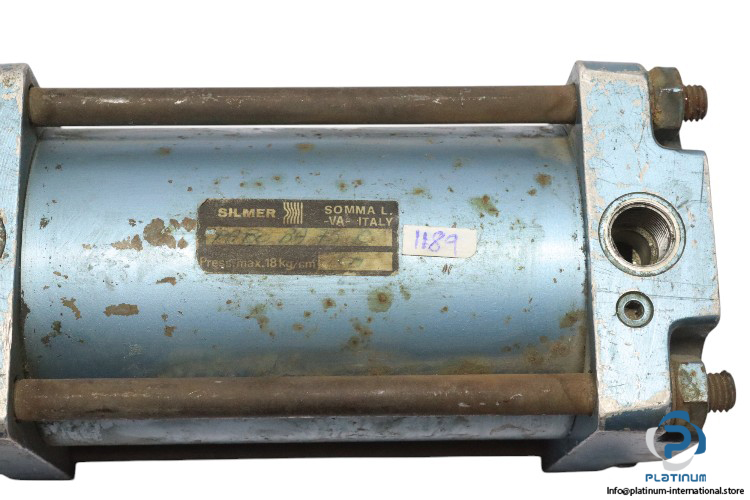

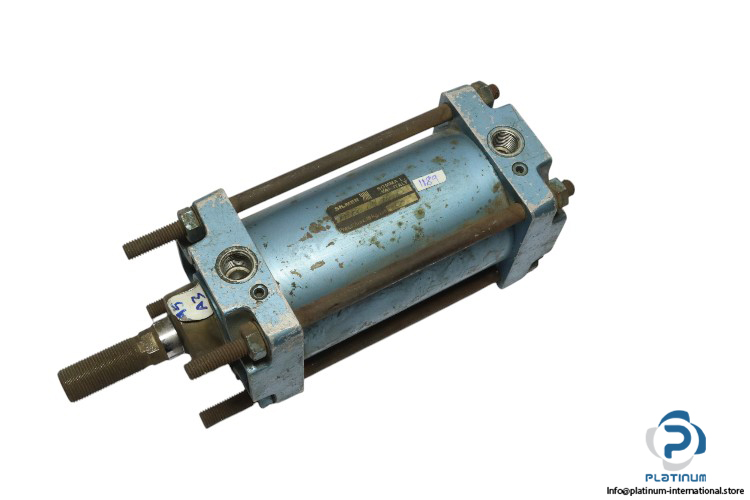

SILMER ISO Cylinder PA 80 BA 75
The SILMER ISO Cylinder PA80BA75 is designed for reliable and efficient pneumatic operations. Featuring durable construction and compact design, this cylinder ensures smooth motion and high performance in various industrial applications.
Manufacturer: SILMER
Type: ISO Cylinder
Model: PA 80 BA 75
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 75 mm
- Bore x Stroke: 80 x 75 mm
- Rod Diameter: 22 mm
- Frame Dimensions: 95 x 220 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 17 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
