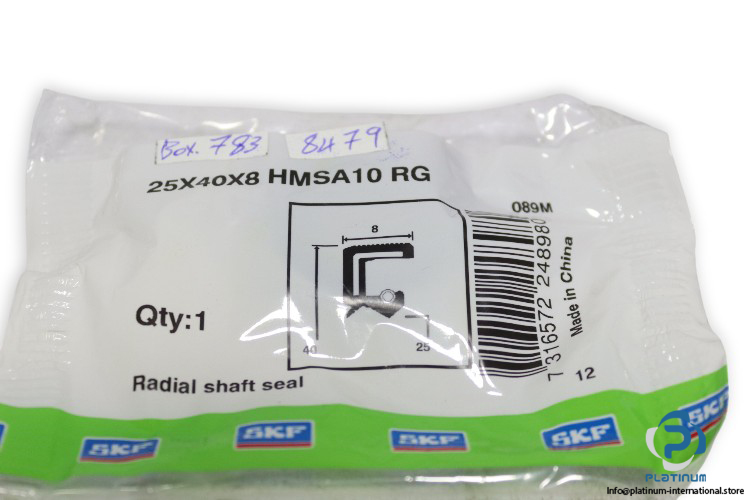

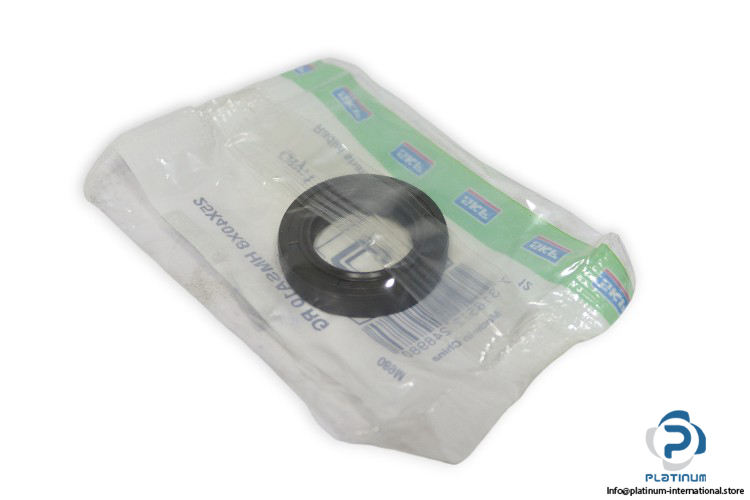

SKF 25X40X8 HMSA10 RG Radial Shaft Seal
16,66$
Joint d'arbre radial Le SKF 25X40X8 HMSA10 RG offre une étanchéité efficace avec une lèvre en NBR et une conception renforcée caoutchouc-métal. Convient aux arbres de diamètre 25 mm, il assure une durabilité dans des conditions de haute vitesse et de température.
SKF 25X40X8 HMSA10 RG Radial Shaft Seal
The SKF 25X40X8 HMSA10 RG is a high-quality radial shaft seal designed for reliable sealing performance in rotating applications. Made from durable nitrile rubber (NBR) and reinforced with a metal case, it ensures excellent resistance to oil, wear, and high speeds. Compliant with ISO 6194 and DIN 3760 standards, this seal provides dependable operation across a wide temperature range for industrial machinery and power transmission systems.
Manufacturer: SKF
Type: Radial Shaft Seal
Model: 25X40X8 HMSA10 RG
| Type of Outside Diameter | Rubber Metal Reinforced |
| Lip Material | Nitrile Rubber (NBR) |
| Seal Design | HMSA10 |
| Compliance with Standard | ISO 6194, DIN 3760 |
| Shaft Diameter | 25 mm |
| Housing Bore Diameter | 40 mm |
| Seal Width | 8 mm |
| Operating Temperature (Min) | ˆ’40 °C |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Short Periods) | 120 °C |
| Circumferential Speed (Max) | 5.03 m/s |
| Rotational Speed (Max) | 3 840 r/min |
| Pressure Differential | 0.05 N/mm² |
