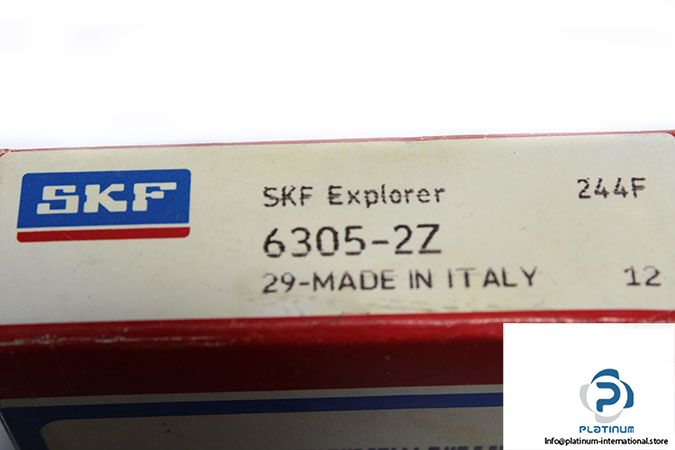

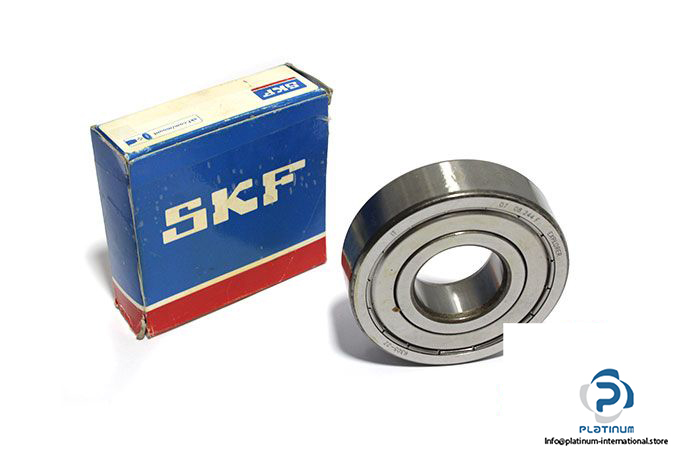

SKF 6305-2Z Deep Groove Ball Bearing

Manufacturer: SKF
Type: Deep groove ball bearing
Model: 6305 2Z

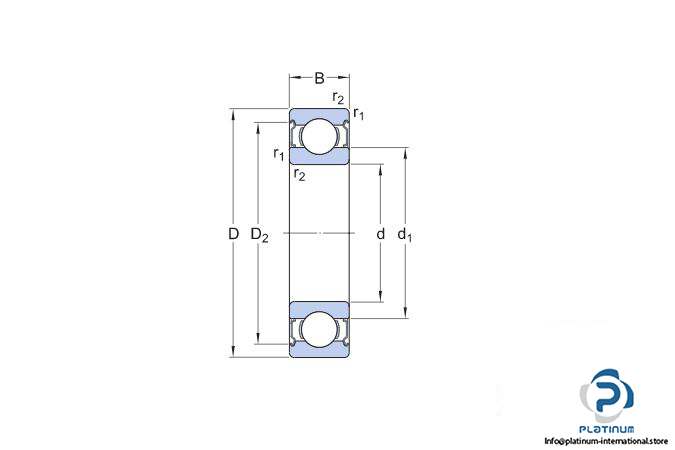

Dimensions:
Bore Diameter d: 25 mm
Outer diameter D: 62 mm
Width B: 17 mm
Minimum chamfer dimension r_min: 1.1 mm
Basic load ratings:
Dynamic C: 23.4 kN
Static C₀: 11.6 kN
Fatigue load limit P_u: 0.49 kN
Reference speed: 24000 rpm
Limiting speed: 13000 rpm
Seal: Shield on both sides
