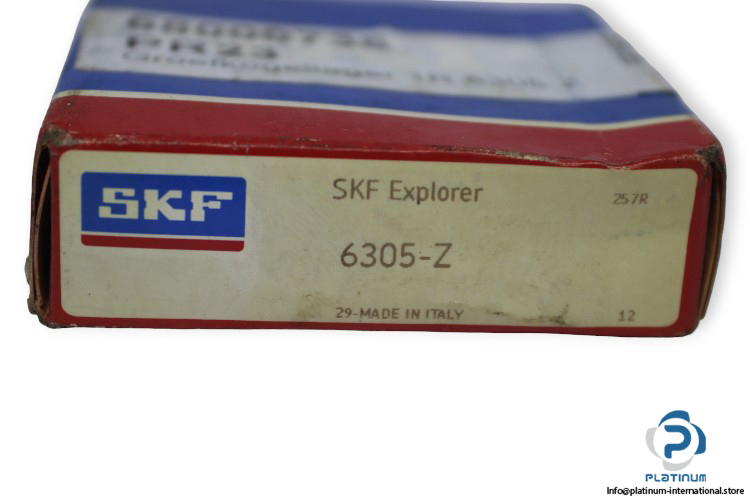

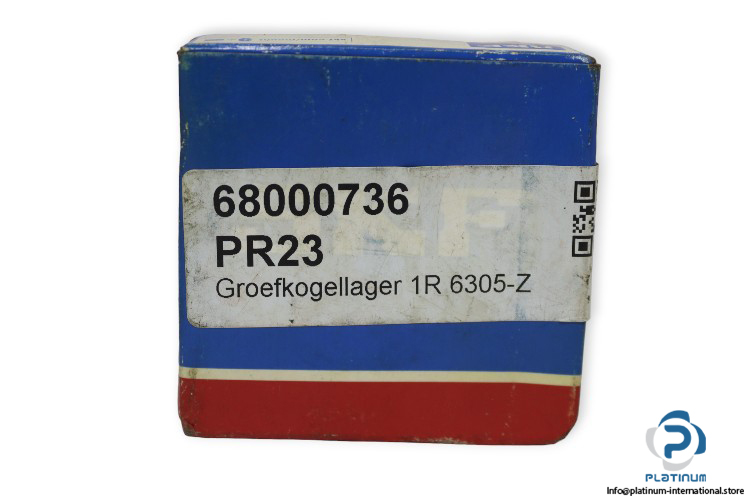

SKF 6305-Z Deep Groove Ball Bearing

Manufacturer: SKF
Type: Deep Groove Ball Bearing
Model: 6305Z

Dimensions
Bore diameter d: 25 mm
Outer diameter D: 62 mm
Width B: 17 mm
Dynamic C_r: 23.4 kN
Static C_0r: 11.6 kN
Fatigue load rating: 0.49 kN
Reference speed: 24000 rpm
Limiting speed: 16000 rpm
Cage: Sheet metal
Sealing: Non-contact shield on one side
