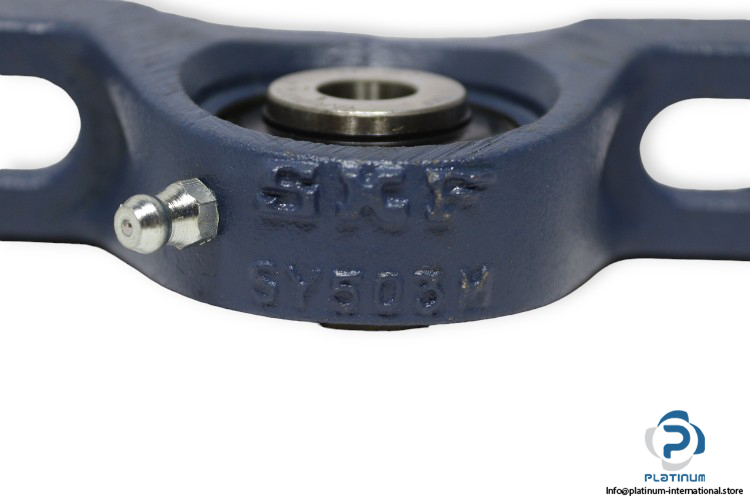

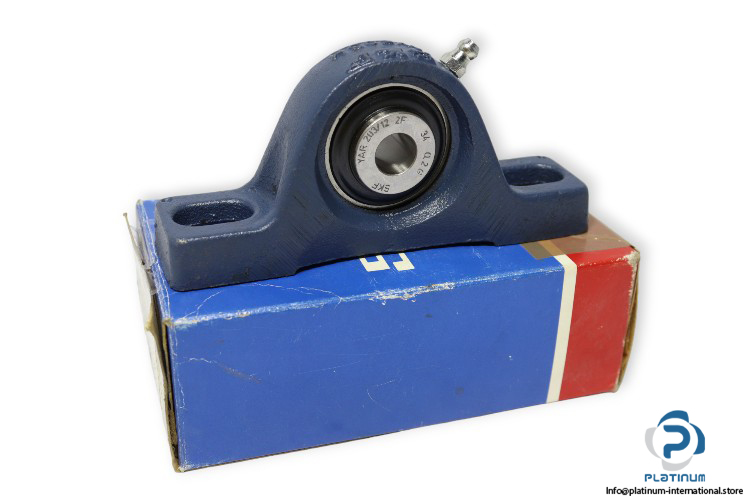

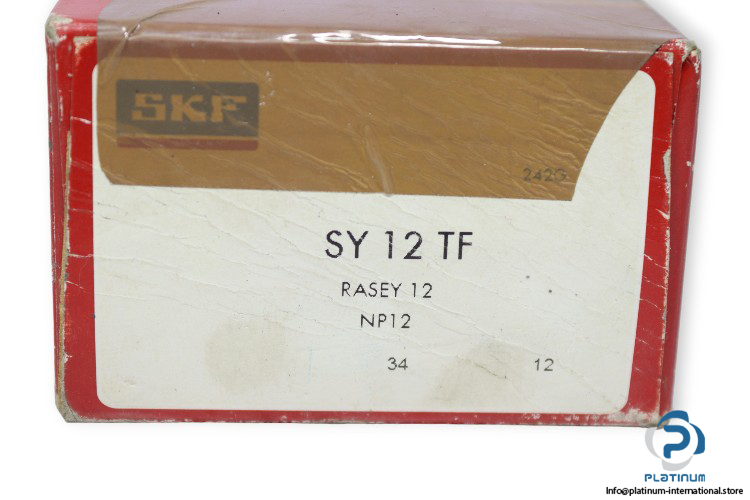

SKF SY 12 TF Pillow Block Ball Bearing Unit

Manufacturer: SKF
Type: Pillow block ball bearing unit
Model: SY12 TF

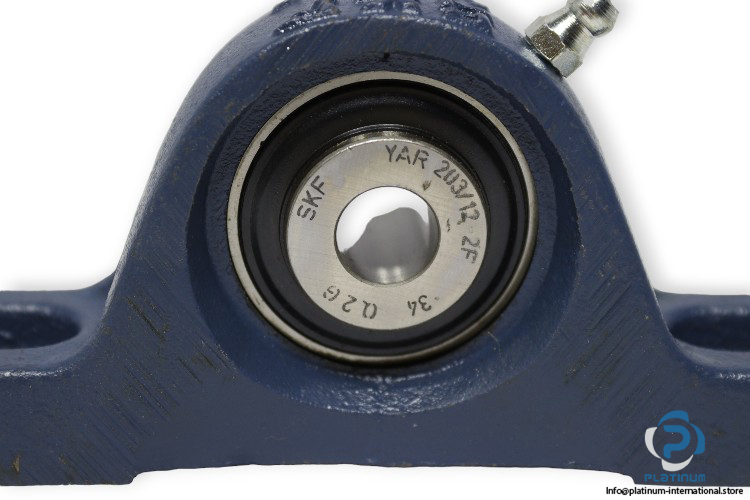

Bearing No.: YAR 203/12-2F
Housing No.: SY 503M

Dimensions
Bore Diameter d: 12 mm
Base width A: 32 mm
Height of spherical seat center H: 30.2 mm
Distance of attachment bolts J: 97 mm
Overall length L: 127 mm
Overall height H2: 57 mm
Basic dynamic load rating: 9.56 kN
Basic static load rating: 4.75 kN
Fatigue load limit: 0.2 kN
Limiting Speed: 9500 rpm
Material, housing: Cast iron
Sealing, bearing: Seal and flinger on both sides
