SMC IP8000-030-X14 Electro-Pneumatic Positioner
Nouveau
En stock1 unitéPrêt à être expédié
599,99$
Positionneur électropneumatique SMC IP8000-030-X14 positionneur électropneumatique avec signal d'entrée 0/4-20 mA, protection ATEX II 2G et corps en aluminium moulé sous pression pour applications industrielles.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

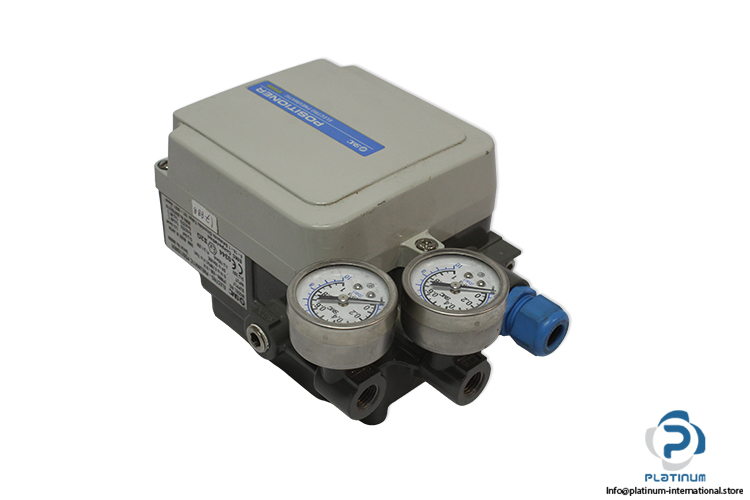

SMC IP8000-030-X14 Electro-Pneumatic Positioner
The SMC IP8000-030-X14 is an electro-pneumatic positioner designed for precise and stable control of pneumatic actuators. Built within the IP8000 series, it offers reliable signal conversion and robust construction suitable for industrial environments, including hazardous areas requiring explosion protection.

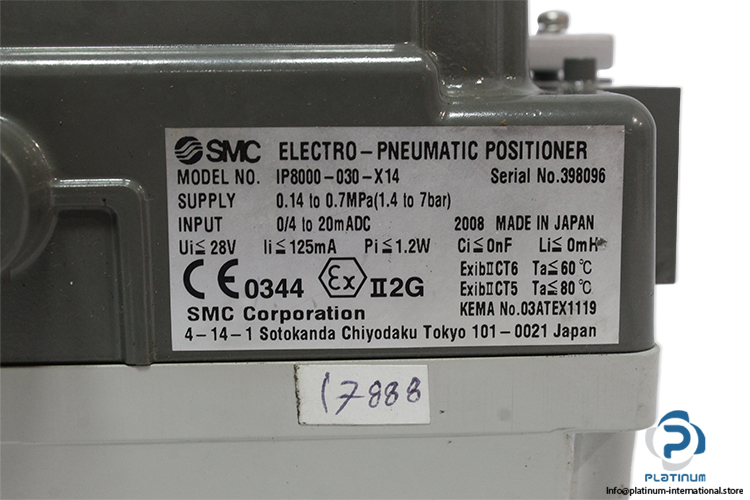

Manufacturer: SMC
Type: Electro-Pneumatic Positioner
Model: IP8000-030-X14
Series: IP8000
Serial Number: 398096
KEMA No.: 03ATEX1119
Electrical Ratings:
| Lever Type | Lever |
| Supply Air Pressure | 0.14 to 0.7 MPa (1.4 to 7 bar) |
| Input Signal | 0 / 4“20 mA DC |
| Ui | 28 V |
| Ii | 125 mA |
| Pi | 1.2 W |
| Explosion Protection | ATEX II 2G |
| Air Connection Port | 1/4 NPT Female Screw |
| Electric Wiring Connection Port | M20 × 1.5 |
| Body Material | Aluminum Diecast |
