Sprecher+Schuh RA 40 1754N Rotary CAM Switch With Handle
Nouveau
En stock1 unitéPrêt à être expédié
66,66$
Rotary CAM Switch with Handle
The Sprecher+Schuh RA401754N rotary CAM switch features a 90-degree switching angle, 40 A thermal current, and high voltage rating for use in base-mounted industrial applications. Designed to meet IEC 947-3 standards, it supports a wide range of power consumption levels across various voltages.40A90-degree947-3AC21ABaseCamHighIECIndustrialmountedR-LineRA401754NRotarySprecher+SchuhSwitchvoltage
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

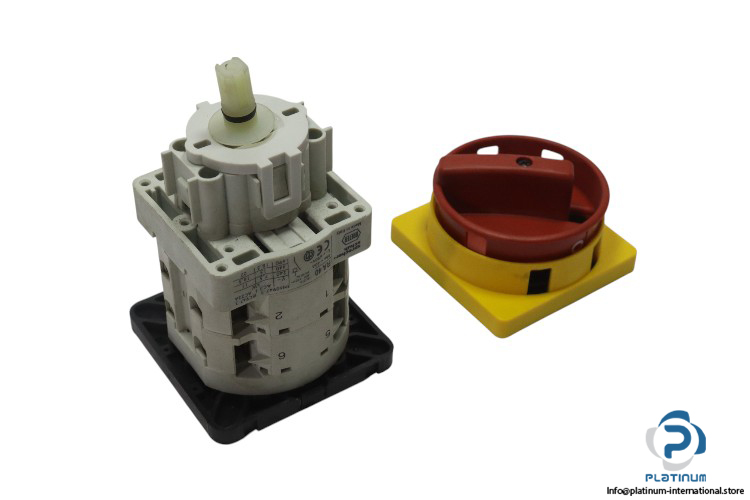

Sprecher+Schuh / BRETER RA401754N “ Rotary CAM Switch with Handle
The Sprecher+Schuh RA401754N rotary CAM switch offers versatile switching control with a 90-degree rotation, designed for base mounting in industrial systems. With a thermal current rating of 40 A and high switching capacity, this switch meets IEC 947-3 and EN 60947-3 standards for reliable performance across various applications.
Manufacturer: Sprecher+Schuh / BRETER
Type: Rotary CAM Switch with Handle
Model: RA401754N
Series: R-Line

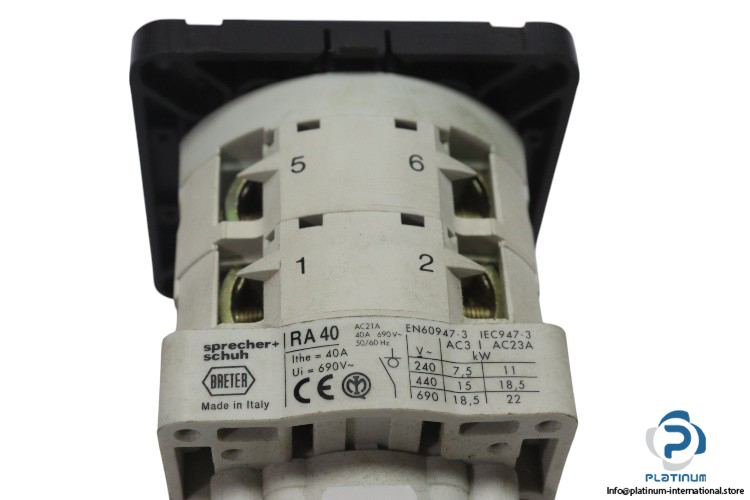

Power Consumption AC3/AC23A:
7.5/11 kW (240 V AC)
15/18.5 kW (440 V AC)
18.5/22 kW (690 V AC)
| Switch Angle | 90 degrees |
| Poles/Switch Wafers | 4/2 |
| Switching Angle | 0-1 (90 degrees) |
| Mounting | Base Mounted |
| Thermal Current Ith | 40 A |
| Rated Insulation Voltage Ui | 690 V AC |
| Switching Rating AC21A | 690 V AC, 40 A |
| Frequency | 50/60 Hz |
| Standard | IEC 947-3, EN 60947-3 |
| Operating Temperature | -25 to 60°C |
