Spriano SEX71-CESI 03 Atex 211 Converter
Nouveau
Disponible sur demande
199,99$
Current to Pressure Converter
The Spriano SEX71-CESI 03 ATEX 211 is a precise current to pressure converter with a 4-20mA input and 3-15 PSI output. Designed for use in hazardous environments, it features ATEX protection, IP65 rating, and a wide working temperature range of -40 to +80°C.1443-154-20mAA49573AreaAtexConverterCurrentEEXiaHazardousIECIICIndustrialIP65PressurePSISignalSprianoT6to
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

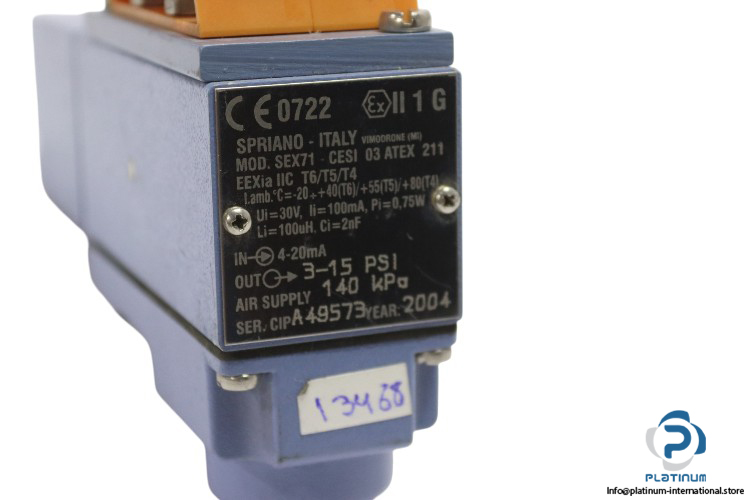

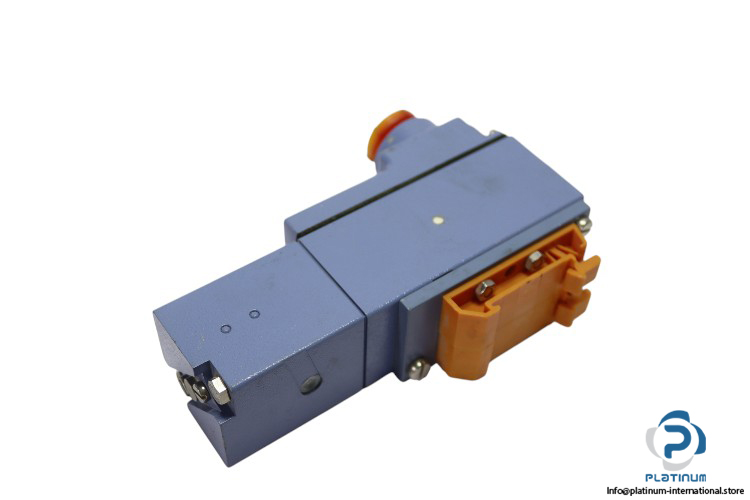

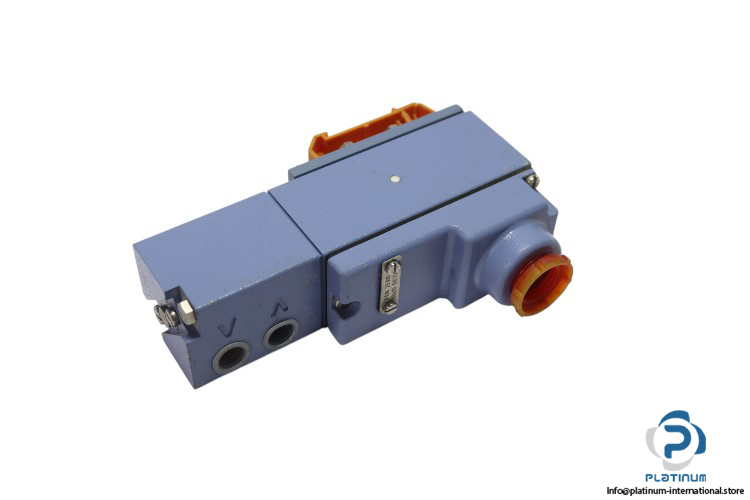

Spriano SEX71-CESI 03 ATEX 211 Current to Pressure Converter
The Spriano SEX71-CESI 03 ATEX 211 is an advanced current to pressure converter designed for high-precision applications. With its robust ATEX protection and wide range of functionality, it offers a reliable solution for converting a 4-20mA signal to a 3-15 PSI pressure output in hazardous environments.
Manufacturer: SPRIANO
Type: Current to Pressure Converter
Model: SEX71-CESI 03 ATEX 211
Ref No: A49573
Technical Data:
- Input Signal: 4-20mA, 2 wires
- Output Signal: 3 “ 15 PSI
- Air Supply: 140 kPa
- Air Supply and Output: G1/4 ANSI B2.1 F
- Input Signal Connection: Threaded connection G1/2 NPT-F and cable gland PG13.5
- Protection Proof: EEXia IIC T6/T5/T4
- Protection Degree: IEC 144 “ IP65
- Working Temperature Limits: -40 to +80°C
