Telemecanique SR2 E121B Compact Smart Relay

Name: TELEMECANIQUE SR2 E121B COMPACT SMART RELAY
SKU: 1095871
Availability: LimitedAvailability

telemecanique-sr2e121b-compact-smart-relay(new)

telemecanique-sr2e121b-compact-smart-relay(new)-1

telemecanique-sr2e121b-compact-smart-relay(new)-2

telemecanique-sr2e121b-compact-smart-relay(new)-3

telemecanique-sr2e121b-compact-smart-relay(new)-4

Nouveau

En stock1 unitéPrêt à être expédié

Relais Intelligent Compact TELEMECANIQUE SR2 E121B Zelio Logic relais intelligent compact avec alimentation 24 V, 8 entrées, 4 sorties relais, affichage intégré et normes de protection industrielle pour les applications de contrôle automatisé.

Fabricant

TELEMECANIQUE

SKU

1095871

Catégorie

Others

Condition

Nouveau

24v Automation Compact Control E121B Industrial Logic Module programmable Relay Smart SR2 Telemecanique Zelio

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

TELEMECANIQUE SR2 E121B Compact Smart Relay

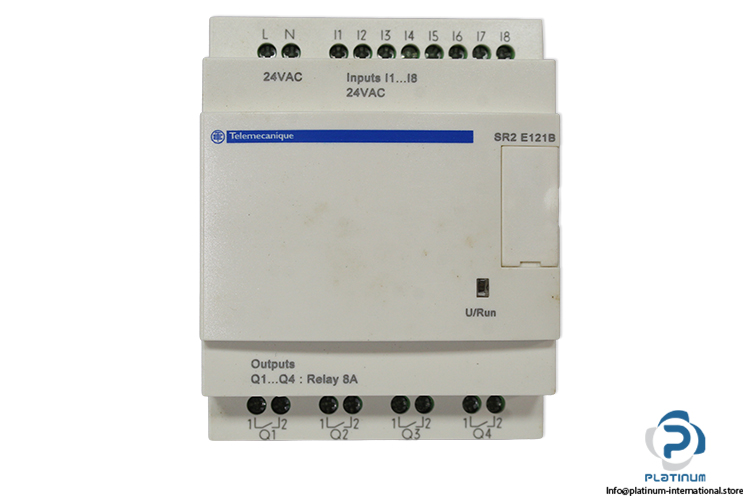

The TELEMECANIQUE SR2 E121B compact smart relay from the Zelio Logic range is designed for industrial automation control applications. It provides reliable programmable control with integrated display and flexible programming options, making it suitable for machinery control, process automation, and electrical panel integration.

Manufacturer: TELEMECANIQUE

Type: Compact Smart Relay

Model: SR2 E121B

Part No.: 054979

Serial No.: 3389110549799

Range Of Product	Zelio Logic
Product Or Component Type	Compact Smart Relay
Local Display	With
Number Of Control Scheme Lines	120 With Ladder Programming / ‰¤ 200 With FBD Programming
Cycle Time	6...90 ms
Backup Time	10 Years At 25 °C
Clock Drift	6 s/Month At 25 °C, 12 min/Year At 0...55 °C
Checks	Program Memory On Each Power Up
Rated Supply Voltage [Us]	24 V
Supply Voltage Limits	20.4...28.8 V
Supply Frequency	50 / 60 Hz
Output Relay	4
Output Relay Rating	24 VDC / 240 VAC
Supply Current	145 mA (Without Extension)
Power Consumption	4 VA (Without Extension)
Isolation Voltage	1780 V
Protection Type	Against Inversion Of Terminals (Control Instructions Not Executed)
Discrete Input Number	8
Discrete Input Voltage	24 V AC
Discrete Input Current	4.4 mA
Discrete Input Frequency	47...53 Hz / 57...63 Hz
Standards	EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 Level 3
Ambient Air Temperature For Operation	-20...55 °C (IEC 60068-2-1 & IEC 60068-2-2), -20...40 °C In Non-Ventilated Enclosure
Operating Altitude	2000 m
